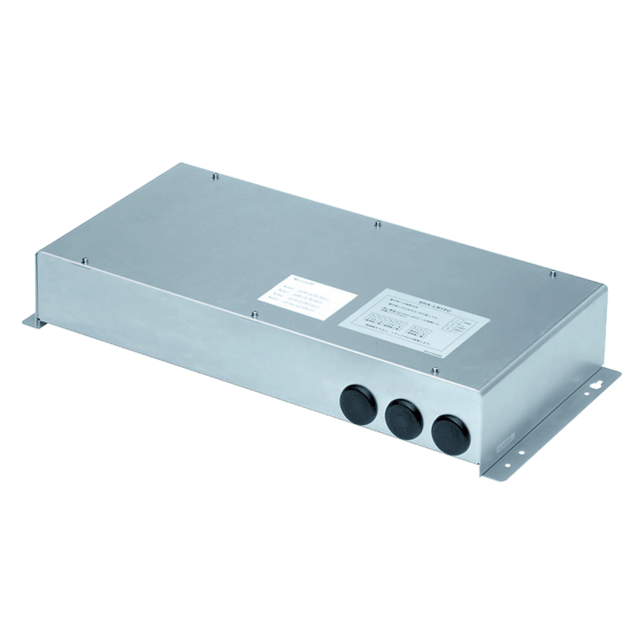

CZ-CLNC2
LonWorks Interface Controls Up to 16 Groups and 64 Indoor Units
Communication converter for LonWorks to S-Link integration.
![](/content/dam/pim/ph/en/CZ/CZ-CLN/CZ-CLNC2-SPP/ast-1920155.jpg.pub.crop.pc.thumb.640.1200.jpg)
Please Select Your User Type
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
CZ-CLNC2
Specs
This interface is a communications converter connecting LonWorks to the FSV control network.
Basic settings and status monitoring is possible from the host connected to LonWorks, for up to 16 groups.
A/C unit settings from the LonWorks communicator.
Settings for each group of indoor units: ON/OFF, temperature setting, operation mode, option 1/2 settings.
Settings for all units: Emergency stop.
A/C unit status notifications made to the LonWorks communicator: Start/stop, temp setting, operation mode, etc.
Documents
Case Studies
Features
16 IDU Basic Settings & Status Monitoring
Check air conditioner settings, status notifications, and configuration properties.
A) System Controller. B) LonWorks Interface. C) Centre Control Device (field supply). 1) Indoor/outdoor unit control line. 2) LonWorks communication line.
