Powering Smart Society
All around you, Panasonic Coin Lithium batteries are providing safe power in devices we all depend on for life. High energy density and high 3 V output voltage support the trend towards device miniaturization. In fact, a single Coin Lithium can sometimes replace two or three conventional coin batteries. Use of organic electrolytes with a solidifying point lower than other battery types makes Coin Lithium ideal for use in wide range of temperatures. Backed by 90 years’ leading technical expertise, Panasonic Coin Lithium has evolved to become the world’s trusted micro-battery for safe, long-lasting power in diverse applications, from household electronics to the IoT devices that energize smart society.
Look Inside
Optimized Material Formulation
Perfected over years of research, High Power Energy Core features an optimized material formulation that increases energy density, output voltage, storage life, and discharge capacity for overwhelmingly long-lasting performance in high-drain applications as well as in low-drain pulse-discharge applications, such as keyless entry devices. The formula includes a graphite additive to improve manganese dioxide utilization, and a heat-resistant binder for stability in hot conditions.
The Secret Behind the Structure
Coin Lithium has a unique case design that contributes to its amazing endurance. Concave cathode case and dimpled anode surface increase material adhesion, limit a rise in internal resistance, and support stable voltage and efficient discharge for lasting power.

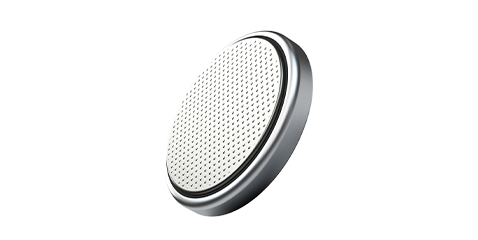

Coin Lithium Structure

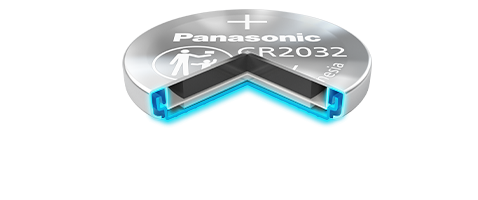

Technical Ingenuity Creates the Ultimate Anti-Leak Structure
Panasonic innovated Anti-Leak Seal and lab-tested exhaustively in real-world appliances. The tough gasket’s rim is embedded in the case and is sandwiched tightly shut with a custom anode cap and strong adhesive. Enhanced by low-degradation ingredients, Anti-Leak Seal keeps you and your devices safe.
Rigorously Tested for Your Peace of Mind
Panasonic prides itself on the scale of its testing program, which not only exceeds our competitors’ commitment, but also the industry’s toughest quality and safety benchmarks. Dedicated facilities simulate operation in heat, cold, and humidity, with batteries also tested for resistance against long periods in storage, impact, pressure, and vibration. Results are used to continually improve battery design.

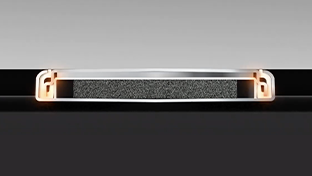

Crush test: 1,300 kg pressure-test evaluates burst resistance

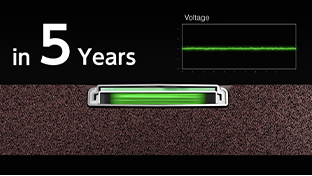

Long-term test: checks capacity after 5 years in storage
Heat stress test: confirms leak resistance in a -10–60 °C temperature range
Vibration test: proves stability in the harshest applications
Child-Resistant Packaging

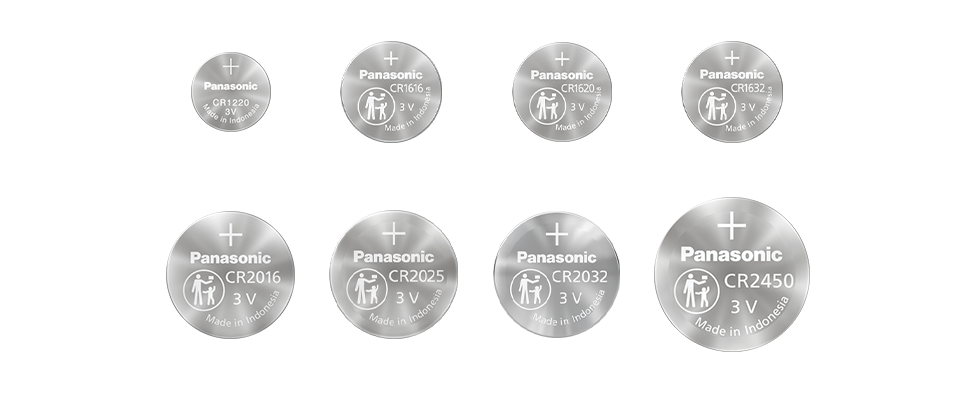

Lineup
Specifications
| Model No. | Voltage (V) | Height (mm) | Diameter (mm) | Weight (g) |
|---|---|---|---|---|
| CR1220 | 3 | 2.0 | 12.5 | 0.9 |
| CR1616 | 3 | 1.6 | 16 | 1 |
| CR1620 | 3 | 2.0 | 16 | 1.3 |
| CR1632 | 3 | 3.2 | 16 | 1.9 |
| CR2016 | 3 | 1.6 | 20 | 1.6 |
| CR2025 | 3 | 2.5 | 20 | 2.3 |
| CR2032 | 3 | 3.2 | 20 | 2.8 |
| CR2450 | 3 | 5.0 | 24.5 | 6.2 |

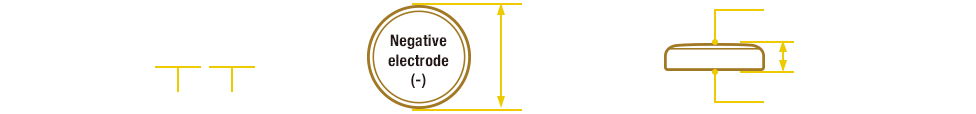

How to Read Battery Model Numbers*
* Applies only to products with 4-digit numerical numbers.
Cross Reference
| Panasonic | ENERGIZER | DURACELL | RAYOVAC | RENATA |
|---|---|---|---|---|
| CR1220 | ECR1220 | DL1220 | 1220 | CR1220 |
| CR1616 | ECR1616 | DL1616 | KECR1616 | CR1616 |
| CR1620 | ECR1620 | DL1620 | KECR1620 | CR1620 |
| CR1632 | ECR1632 | DL1632 | KECR1632 | CR1632 |
| CR2016 | ECR2016 | DL2016 | KECR2016 | CR2016 |
| CR2025 | ECR2025 | DL2025 | KECR2025 | CR2025 |
CR2032 | ECR2032 | DL2032 | KECR2032 | CR2032 |
| CR2450 | 2450 | 2450 | CR2450 | CR2450N |
| VARTA | MAXELL | SEIKO | CITIZEN | IEC |
|---|---|---|---|---|
| CR1220 | CR1220 | SB-T13 | - | CR1220 |
| CR1616 | CR1616 | - | 280-209 | CR1616 |
| CR1620 | CR1620 | SB-T17 | 280-208 | CR1620 |
| CR1632 | CR1632 | - | - | CR1632 |
| CR2016 | CR2016 | SB-T11 | 280-206 | CR2016 |
| CR2025 | CR2025 | SB-T14 | 280-205 | CR2025 |
CR2032 | CR2032 | SB-T51 | - | CR2032 |
| CR2450 | CR2450 | - | - | CR2450N |
