V Series Water Heater DH-3VS1PW
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DH-3VS1PW
Safe & Clean Showers for Everyone
Step into a worry-free shower designed for the whole family, complete with safety and hygiene features that ensure everyone's protection. Enjoy a peaceful and relaxing shower experience every day.
* All images are for illustrative purposes only.
![](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2262802.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
Joyful Shower, Protected Family
![Joyful Shower, Protected Family](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248569.jpg.pub.crop.pc.thumb.640.1200.jpg)
Playful bath times mean splashes and a humid bathroom. Protect your loved ones with 9 safety features against electric and fire hazards. Enjoy cleaner showers with Ag+ technology that stops bacteria growth to make every bath time worry-free and fun.
Family’s Safety First
![Family’s Safety First](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248570.jpg.pub.thumb.644.644.jpg)
Rest assured with 9 safety features that prioritize you and your family's safety, through technologies that provide water and heat resistance, as well as prevention against fire, burns, and electric shock.
9 Safety Features
1 Water Resistant & Splash Proof
The IEC60529 (IP25) compliant water splash-proof case covers both the front and back plates to prevent electric shock and fire.
![Water Resistant & Splash Proof](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248573.jpg.pub.jpg)
2 Prevents Overheating & Fire
The built-in, highly durable reinforced polyamide heater unit is made from self-extinguishing and non-combustible material to prevent overheating and fire.
![Prevents Overheating & Fire](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248574.jpg.pub.jpg)
3 ON/OFF Switch
Turn off both the main power and water supply using the ON/OFF rotary switch to prevent electrical hazards and overheating.
![ON/OFF Switch](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248575.jpg.pub.jpg)
4 Protects against Electric Shock
Compliant with IEC 60529 (IP25) standards, the insulated structure prevents accidental electric shock by enclosing dangerous components.
![Protects against Electric Shock](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248576.jpg.pub.jpg)
5 Protects against Current Leakage
The Built-in Earth Leakage Breaker (ELB) instantly cuts off the power supply upon current leakage to protect against electric shock.
![Protects against Current Leakage](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248577.jpg.pub.jpg)
6 Prevents Overheating & Heat Surges
The Water Flow Sensor automatically cuts off power during low or absent water flow to avoid overheating and burning.
![Prevents Overheating & Heat Surges](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248557.jpg.pub.jpg)
7 Built to Prevent Fire
The casing complies with non-flammable material and has a self-extinguishing structure to prevent fire risk.
![Built to Prevent Fire](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248559.jpg.pub.jpg)
8 Power Cut-off on Component Failures
The Manual Reset Thermostat prevents fire by cutting off power if a component fails.
![Power Cut-off on Component Failures](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248560.jpg.pub.jpg)
9 Prevents against First-Degree Burn
The Auto Thermal Cut-out stops the power supply when the water temperature exceeds 55°C to prevent first-degree burns.
![Prevents against First-Degree Burn](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248561.jpg.pub.jpg)
Stay Protected Against Bacteria
The surface of the shower plate are coated with Ag+ Crystal Material to prevent bacteria growth in humid environments, ensuring you always have a clean and hygienic shower.
![Stay Protected Against Bacteria](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248562.jpg.pub.thumb.644.644.jpg)
Adjustable Water Texture with 3-way Shower Head
Gentle Mix Spray
A blend of soft yet revitalizing water textures for a gentle and relaxing shower experience after your daily activities.
![Gentle Mix Spray](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248563.jpg.pub.jpg)
Expansive, Fine Spray
Intense jets of fine micro-droplets to cleanse your skin and ease your body into resting mode after a long day.
![Expansive, Fine Spray](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248565.jpg.pub.jpg)
Concentrated Spray
A strong stream of water that relaxes muscles and eases tension, perfect for post-workout rinse or after a busy day.
![Concentrated Spray](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248566.jpg.pub.jpg)
Sleek & Functional Design
![Sleek & Functional Design](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2248567.jpg.pub.thumb.644.644.jpg)
The V Series is inspired by the timeless archetype design that is simple and intuitive to use while fitting effortlessly in every bathroom.
Frequently Asked Questions
Step 1: Press the ELB button.
Step 2: The ELB Reset Lever should slide down and the current supply is actively cut off.
Step 3: Push up the ELB Reset Lever. The ELB indicator LED will light up, indicating the set is ON.
Step 2: The ELB Reset Lever should slide down and the current supply is actively cut off.
Step 3: Push up the ELB Reset Lever. The ELB indicator LED will light up, indicating the set is ON.
Regularly checking the ELB once a month is important to protect users and avoid potential harm, including property damage, severe injury, or death.
The main switch controls the Live line of the internal circuit. For safety, especially if the ELB fails and there's an issue with the electricity supply, turning off the main switch is crucial. It ensures that no electricity flows through the product, preventing any electrical hazard risk.
Use a soft brush to clean the holes on the Shower Head. It is recommended to clean weekly.
Specs

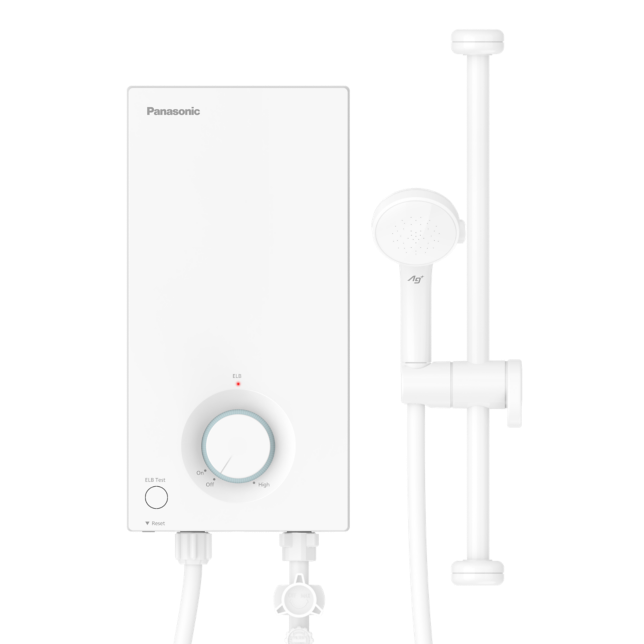

![Photo of V Series Water Heater DH-3VS1PW](/content/dam/pim/ph/en/DH/DH-3VS/DH-3VS1PW/ast-2262805.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 380mm
- Width
- 190mm
- Depth
- 82mm
- Weight
- 1.41kg
*Please check the minimum space requirements for installation.
9 Safety Features
Water Resistant
Heat Resistant
Shock Resistant
Fire & Burn Resistant
Prevents Bacteria
Comfortable Water Texture
Rated Power : 3.5 kW
Power Supply : 230 V , 60 Hz
Protects against fire & electrical hazards with 9 safety features
Protects against bacteria with Ag+ Crystal Material
Adjustable water texture with 3-way shower head
Basic Specification
-
PUMP/ NO PUMP
-
Non Pump
-
-
TYPE
-
Non LCD type (Analogue)
-
-
Power Supply
-
230 V, 60 Hz
-
-
Rated Power
-
3.5 kW
-
-
Water Pressure
-
Minimum
-
0.1 kgf/cm²
-
-
Maximum
-
3.87 kgf/cm²
-
-
-
Dimensions (h x w x d) mm
-
380 x 190 x 82
-
-
Main Unit Weight (kg)
-
1.41 kg
-
-
Body Colour
-
Matt White
-
Standard Regulation
-
N/A
ELB indication method
-
Red ELB light
Water Stop System
-
On/Off Rotary Switch
9 Safety Features
-
1. Water Splash Prood Case Cover
-
IEC 60529 (IP25)
-
-
2. Durable Copper Heater Unit
-
Plastic Tank
-
-
3. On Push On/Off Switch
-
On/Off Rotary Switch
-
-
4. Insulated Structure
-
IEC 60529 (IP25)
-
-
5. Built-in Earth Leakage Breaker (ELB)
-
Yes
-
-
6. Water Flow Sensor
-
Yes
-
-
7. Non-flammable Material Cover
-
Yes
-
-
8. Manual Reset Thermostat
-
Yes
-
-
9. Auto Thermal Cut-off
-
55ºC
-
Comfort Features
-
U-memory
-
-
-
-
U-mode
-
-
-
-
On/Off Pump function
-
-
-
-
Ag+ Antibacterial material
-
Yes
-
-
3-way Shower
-
Normal, Wide, Spot
-
