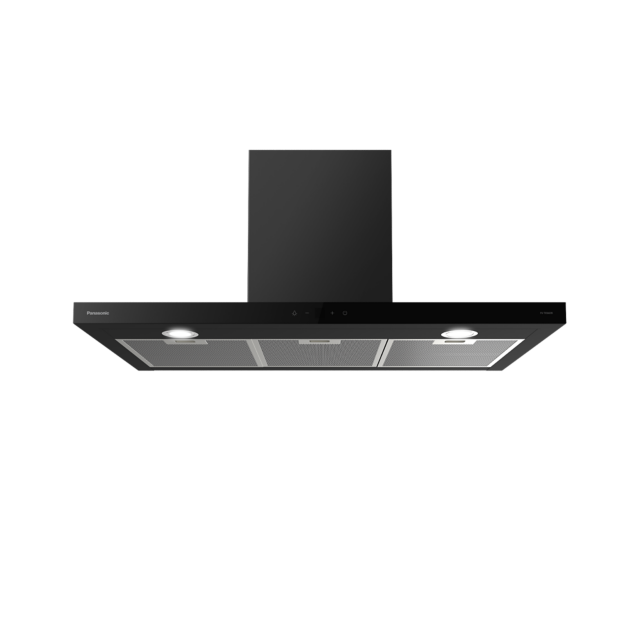

T-Shape Range Hood
FV-TX9ADBLPW
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
T-Shape Range Hood
FV-TX9ADB
Sleek Design.
Wide Coverage for Everyday Cooking.
A simple T-shape design provides broader coverage across the hob, helping reduce smoke and odor during everyday cooking. Steady airflow and simple touch controls keep operation easy throughout daily routines.
* All images are for illustrative purposes only.
Features
Powerful Suction for a Fresher Kitchen
The classic T-shape design captures smoke from a broader area, supported by a steady 1,450 m³/h extraction rate to help reduce smoke and odor. Reliable for everyday family cooking.
Traps Grease Effectively
Durable 3×5-layer aluminium mesh filters trap grease efficiently to support cleaner airflow. Easily removable, the filters can be washed by hand or in the dishwasher for easy maintenance.
Quiet Performance While You Cook
At 59 dB, the hood keeps noise levels low for a more comfortable open-kitchen environment.
Simple Features that Support Everyday Cooking
1 Simple Touch Control
A clean, minimal interface keeps operation easy while cooking.
2 Flexible Installation
Choose ducted installation when external venting is available, or recirculating for apartments without ventilation access. Flexible options that adapt easily to different kitchen layouts.
3 Stays On After Cooking
A 3-minute Delay End continues to extract lingering smoke and odors, keeping the kitchen fresh even after you leave the stove.
4 See Clearly While You Cook
Dual LED lights illuminate the cooking area for clearer visibility.
Sleek Lines, Simple Form
A symmetrical structure and sleek finish create a clean, balanced presence above the hob, keeping your kitchen looking neat and tidy. Pair it with a matching hob for a cohesive kitchen look.
Discover the Matching Hob
Full-Flat Tempered Glass
Sleek and durable, with no grooves to trap grease. Wipes down easily to keep your kitchen looking modern and tidy.
Clean, Refined Design
Timeless proportions and a compact body create a neat, unobtrusive presence in the kitchen.
Ultra Slim Control Panel
A slim, minimal control panel that keeps the design clean and intuitive.
Installation & Care Tips
Ventilating Method generally offers stronger airflow, quieter operation, and does not require carbon filter replacement.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.
T-shape: Most popular, with powerful suction and versatile functions.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
① Push the filter handle toward the back of the hood and pull downward to remove it.
② Wash the filter in hot water with mild detergent. Avoid bending the mesh.
③ Allow it to dry completely before placing it back. Insert the back tabs first, then push upward to secure it.
② Wash the filter in hot water with mild detergent. Avoid bending the mesh.
③ Allow it to dry completely before placing it back. Insert the back tabs first, then push upward to secure it.
The hood should be wider than the hob for optimal suction coverage.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.
For users with the Recirculating Method, it is recommended to replace the charcoal filter every 3 months, or earlier if odors become stronger. Charcoal filters can be ordered through Panasonic Customer Service and replaced by yourself following the instruction manual, or with help from the service team.
Specs
Size and Weight
- Height
- 430mm
- Width
- 898mm
- Depth
- 505mm
- Weight
- 14kg
*Please check the minimum space requirements for installation.
Reliable Suction Power- Wide Coverage
- Delay End
- Easy to Operate
- Easy to Clean
Wide Coverage Across the Hob
- 1297 m³/h
Traps Grease Effectively
- Durable 3× 5-Layer Aluminium Mesh Filters
Quiet Performance While You Cook
- 59 dB Low Noise
Stays On After Cooking
- 3-min Delay End
Minimalist Control Panel
- 4 cm Slim Control Panel
Power Supply
-
Single Phase 220-240 V, 50/60 Hz
Max. Power Consumption
-
293 W
Main Colour
-
Black (w/ Glass)
Fan Speed
-
3
Control Mode
-
Touch
Hand Gesture Control
-
-
Suction Power*
-
1297 m³/h
Operation Noise
-
72 dB
Self Cleaning
-
-
3 mins Delay Off
-
Yes
Filter Type
-
3x 5-Layer Aluminum Mesh
Oil Cup
-
-
Diameter of Outer Smoke Duct
-
156 mm
Lighting
-
2 x 1.5 W
Extraction Mode
-
Ducted/ Recirculating
Product Dimensions (approx.)
-
(W) 898 × (D) 505 × (H) 430 mm
Height of Control Panel (approx.)
-
4 cm
Net Weight (approx.)
-
14 kg
Notes
-
*Tested and measured internally with +/- <10% marginal discrepancy
**Smoke duct not included in box
