Mini Seri-Para I/O Unit 0 -10 V

SHOP NOW

CZ-CAPBC2

Seri-Para I/O Unit for Each Indoor Unit

Each individual indoor unit, or any external electrical device up to 250V AC, 10 A, can be controlled and monitored for status via contact signal.
Zoom In
Zoom Out
Close

Specs

CZ-CAPBC2

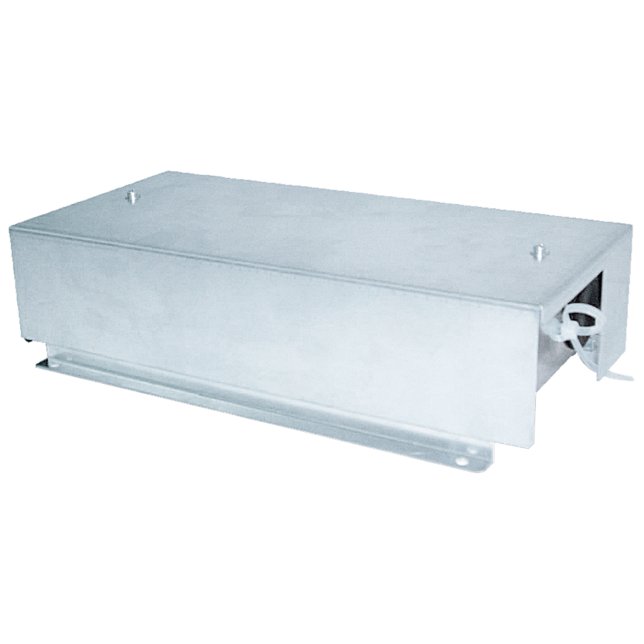

Photo of CZ-CAPBC2

Control and status-monitoring of individual indoor units (1 group).

In addition to ON/OFF, air speed and operation mode can be controlled digitally.

Central monitoring detects temperature settings and intake temperatures.

Analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.

Power is supplied from the T10 terminal of the indoor units.

Can be used with a separate power supply (in the case of detection of intake temperatures).

CZ-CAPBC2
Power DC 12 V
Power Consumption 1.2W, 0.1A
Operating Environment Conditions Temperature: -10 to 50°C; Humidity: 20 to 80%; for indoor use only
External Dimensions (mm) W 256.0 x D 136.0 x H 63.8
Weight 0.9kg

Documents

Features

Seri-Para I/O Unit for Each Indoor Unit

Control and status-monitoring for each individual indoor unit (1 group). Digitally control ON/OFF and changes to airflow speed and operation modes. The central controller can adjust temperature settings and measure indoor inlet temperatures. Analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.
• Power supplied from the T10 terminal of the indoor units
1) Central control panel 2) Remote station
Seri-Para I/O Unit for Each Indoor Unit
