CS-MU18YD3Z
24-Hour Quality Air

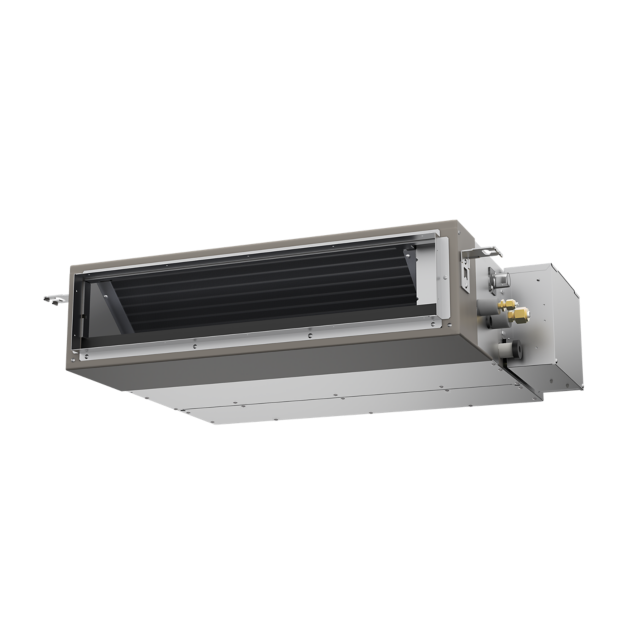

Panasonic’s Slim Ducted features slim, compact design and built-in drain pump for flexible installation in narrow ceiling spaces. Instant cooling with POWERFUL Mode and low noise operation with Quiet Mode. Cool airflow is directed towards the ceiling over a wide angle range. With an optional network adaptor (CZ TACG1), control air conditioning units using the Panasonic Comfort Cloud App anytime, anywhere.
Features
Fit Seamlessly Into Any Interior Layouts
Slim and compact design fits discreetly into the narrow ceiling cavity, offering a harmonious look while providing a consistent cooling comfort.
200mm Height to Fit Narrow Ceiling Spaces
Slim and compact design with 200mm height, requiring only 240mm ceiling space for installation in narrow ceiling spaces.
Flexible Installation with Air Intake from the Bottom or the Rear
Rear Air Intake
Air intake from the rear for standard installation.
Bottom Air Intake
Air intake from the bottom allows flexible installation in limited spaces, enabling easier maintenance and servicing.
High-Lift Built-in Drain Pump
With the high-lift built-in drain pump, the drain pipe can be elevated up to 702mm from the base of the unit. This enables the indoor unit to be installed flexibly at the ceiling, even when being blocked by a beam while efficiently removing condensate water from the indoor unit.
Manage at Ease Using Panasonic Comfort Cloud
Stay Connected and in Control Anywhere, Anytime
You can simultaneously monitor and control multiple air conditioners anytime, anywhere from one mobile device with the Panasonic Comfort Cloud App.
Note: CZ-TACG1 WLAN adaptor required per unit.
Voice Control with Google Assistant-Enabled Devices
Link the Panasonic Comfort Cloud App to the Google Home app so you can control your air conditioner using just your voice when connected to a Google Assistant-enabled device.
*Google, YouTube and Google Home are trademarks of Google LLC.
*Google Assistant is not available in certain languages and countries.
*Availability and performance of certain features, services and applications are device and network-dependent and may not be available in all countries/regions; subscription(s) may be required, and additional terms, conditions and/or changes may apply.
*Google Assistant is not available in certain languages and countries.
*Availability and performance of certain features, services and applications are device and network-dependent and may not be available in all countries/regions; subscription(s) may be required, and additional terms, conditions and/or changes may apply.
POWERFUL Mode for Instant Cooling Comfort
When POWERFUL Mode is switched on, the internal setting temperature will shift lower and increase in fan speed, offering instant powerful cooling when you need to cool the space quickly after arriving home.
Cooling Comfort with Wide-Angle Range
Cool airflow is directed towards the ceiling over a wide-angle range for optimum airflow distribution across the room.
A Restful Night with Quiet Mode
Switch on the Quiet Mode to reduce the noise level of the indoor unit for a quiet, peaceful environment at bedtime or during study.
Compatible Outdoor Units
XU Series Outdoor Units
U Series Outdoor Units
Specs
Size and Weight
- Height
- 200mm
- Width
- 750mm
- Depth
- 640mm
- Weight
- 19kg
*Please check the minimum space requirements for installation.
200mm height to fit in narrow ceiling spaces
Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)
Air intake from the bottom allows flexible installation
High-lift built-in drain pump
POWERFUL Mode lets you enjoy instant powerful cooling
Quiet Mode reduces the noise level of the indoor unit for a quiet, peaceful environment
Basic Specification
-
Model
-
CS-MU18YD3Z
-
-
Cooling Capacity
-
5 kW
17,100 Btu/h
-
-
Power Source
-
Single Phase, 220V-240V, 50Hz
-
-
Sound Pressure Level
-
High/Low
-
41/30 dB(A)
-
-
-
Air Circulation
-
High
-
15.5 m³/min (545 ft³/min)
-
-
-
Dimensions
-
Height
-
200 mm
-
-
Width
-
750 mm
-
-
Depth
-
640 mm
-
-
-
Net Weight
-
19 kg
-
-
Refrigerant Pipe Diameter
-
Liquid Side
-
ø 6.35 mm
-
-
Gas Side
-
ø 9.52 mm
-
-
-
Power Supply
-
Outdoor
-
Comfort Features
-
Inverter Control
-
Yes
-
-
Quiet Mode
-
Yes
-
-
POWERFUL Mode
-
Yes
-
-
Soft Dry Operation Mode
-
Yes
-
Cleaner Air Features
-
Odour-Removing Function
-
Yes
-
Convenience Features
-
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
-
-
LCD Wireless Remote Control
-
Yes
-
-
Wireless LAN Remote Control (For Internet Connection)
-
Yes (Optional)
-
-
Wired Remote Control
-
Yes (Optional)
-
-
Bottom Air Intake
-
Yes
-
-
Built-In Drain Pump
-
Yes
-
Reliability Features
-
Random Auto Restart
-
Yes (32 Restart Patterns)
-
-
Blue Fin Condenser
-
Yes
-
-
Top-Panel Maintenance Access
-
Yes
-
-
Self-Diagnostic Function
-
Yes
-
Accessories
-
Controller
-
Network Adaptor CZ-TACG1 (Optional) Wireless LAN remote control for internet connection
Wired Remote Control CZ-RD52CP-1 (Optional)
-
Note
-
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
