CS-MU9YD3Z

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS-MU9YD3Z

24-Hour Quality Air

Panasonic’s Slim Ducted features slim, compact design and built-in drain pump for flexible installation in narrow ceiling spaces. Instant cooling with POWERFUL Mode and low noise operation with Quiet Mode. Cool airflow is directed towards the ceiling over a wide angle range. With an optional network adaptor (CZ TACG1), control air conditioning units using the Panasonic Comfort Cloud App anytime, anywhere.
Zoom In
Zoom Out
Close

Features

Fit Seamlessly Into Any Interior Layouts

Slim and compact design fits discreetly into the narrow ceiling cavity, offering a harmonious look while providing a consistent cooling comfort.
Fit Seamlessly Into Any Interior Layouts

200mm Height to Fit Narrow Ceiling Spaces

Slim and compact design with 200mm height, requiring only 240mm ceiling space for installation in narrow ceiling spaces.
200mm Height to Fit Narrow Ceiling Spaces

Flexible Installation with Air Intake from the Bottom or the Rear

Rear Air Intake

Air intake from the rear for standard installation.
Rear Air Intake

Bottom Air Intake

Air intake from the bottom allows flexible installation in limited spaces, enabling easier maintenance and servicing.
Bottom Air Intake

High-Lift Built-in Drain Pump

With the high-lift built-in drain pump, the drain pipe can be elevated up to 702mm from the base of the unit. This enables the indoor unit to be installed flexibly at the ceiling, even when being blocked by a beam while efficiently removing condensate water from the indoor unit.
High-Lift Built-in Drain Pump

Manage at Ease Using Panasonic Comfort Cloud

Stay Connected and in Control Anywhere, Anytime

You can simultaneously monitor and control multiple air conditioners anytime, anywhere from one mobile device with the Panasonic Comfort Cloud App.
Note: CZ-TACG1 WLAN adaptor required per unit.
Stay Connected and in Control Anywhere, Anytime

Voice Control with Google Assistant-Enabled Devices

Link the Panasonic Comfort Cloud App to the Google Home app so you can control your air conditioner using just your voice when connected to a Google Assistant-enabled device.
*Google, YouTube and Google Home are trademarks of Google LLC.
*Google Assistant is not available in certain languages and countries.
*Availability and performance of certain features, services and applications are device and network-dependent and may not be available in all countries/regions; subscription(s) may be required, and additional terms, conditions and/or changes may apply.
Voice Control with Google Assistant-Enabled Devices

POWERFUL Mode for Instant Cooling Comfort

When POWERFUL Mode is switched on, the internal setting temperature will shift lower and increase in fan speed, offering instant powerful cooling when you need to cool the space quickly after arriving home.
POWERFUL Mode for Instant Cooling Comfort

Cooling Comfort with Wide-Angle Range

Cool airflow is directed towards the ceiling over a wide-angle range for optimum airflow distribution across the room.
Cooling Comfort with Wide-Angle Range

A Restful Night with Quiet Mode

Switch on the Quiet Mode to reduce the noise level of the indoor unit for a quiet, peaceful environment at bedtime or during study.
A Restful Night with Quiet Mode

Compatible Outdoor Units

XU Series Outdoor Units

XU Series Outdoor Units

U Series Outdoor Units

U Series Outdoor Units

Specs

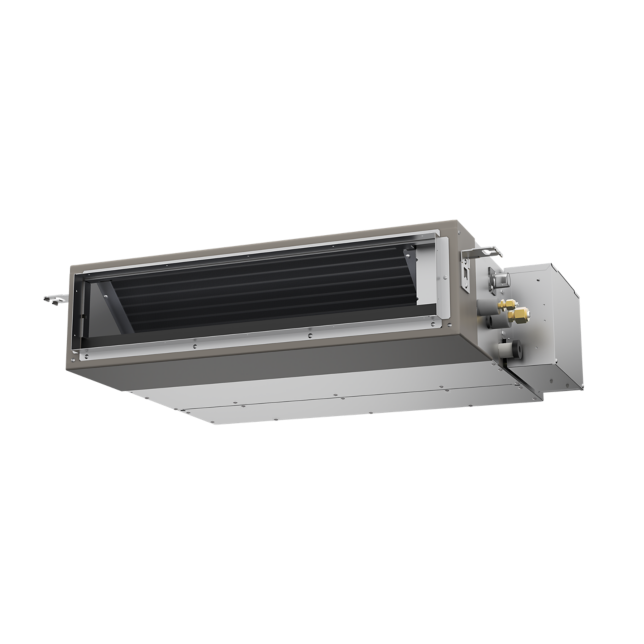

Photo of CS-MU9YD3Z

Size and Weight

Height
200mm
Width
750mm
Depth
640mm
Weight
19kg

*Please check the minimum space requirements for installation.

200mm height to fit in narrow ceiling spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

Air intake from the bottom allows flexible installation

High-lift built-in drain pump

POWERFUL Mode lets you enjoy instant powerful cooling

Quiet Mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Basic Specification

  • Model

    • CS-MU9YD3Z
  • Cooling Capacity

    • 2.8 kW
      9,550 Btu/h
  • Power Source

    • Single Phase, 220V-240V, 50Hz
  • Sound Pressure Level

    • High/Low
      • 35/28 dB(A)
  • Air Circulation

    • High
      • 13.2 m³/min (465 ft³/min)
  • Dimensions

    • Height
      • 200 mm
    • Width
      • 750 mm
    • Depth
      • 640 mm
  • Net Weight

    • 19 kg
  • Refrigerant Pipe Diameter

    • Liquid Side
      • ø 6.35 mm
    • Gas Side
      • ø 9.52 mm
  • Power Supply

    • Outdoor

Comfort Features

  • Inverter Control

    • Yes
  • Quiet Mode

    • Yes
  • POWERFUL Mode

    • Yes
  • Soft Dry Operation Mode

    • Yes

Cleaner Air Features

  • Odour-Removing Function

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes
  • LCD Wireless Remote Control

    • Yes
  • Wireless LAN Remote Control (For Internet Connection)

    • Yes (Optional)
  • Wired Remote Control

    • Yes (Optional)
  • Bottom Air Intake

    • Yes
  • Built-In Drain Pump

    • Yes

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)
  • Blue Fin Condenser

    • Yes
  • Top-Panel Maintenance Access

    • Yes
  • Self-Diagnostic Function

    • Yes

Accessories

  • Controller

    • Network Adaptor CZ-TACG1 (Optional) Wireless LAN remote control for internet connection
      Wired Remote Control CZ-RD52CP-1 (Optional)

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
