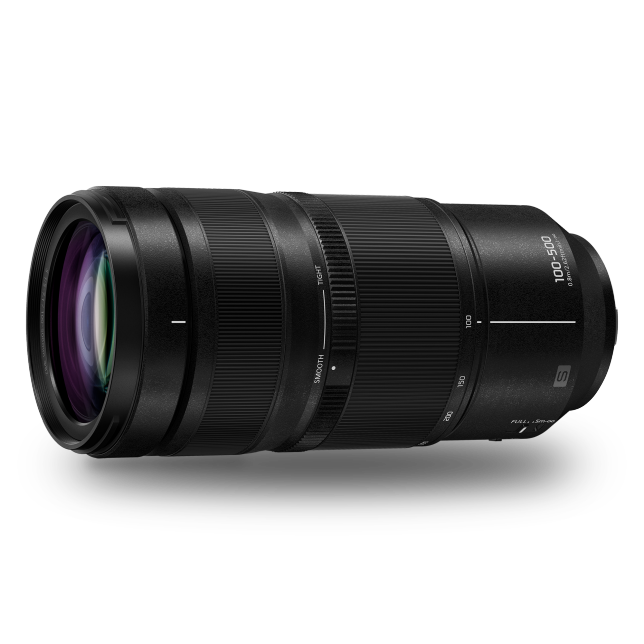

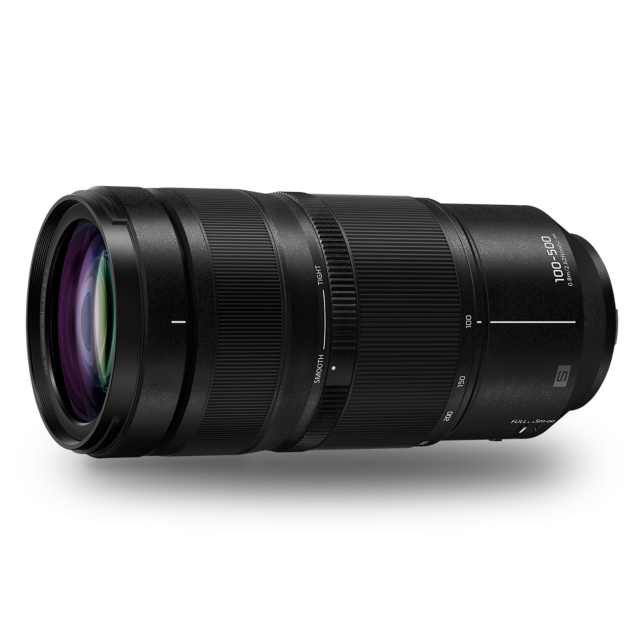

LUMIX S 100-500mm F5-7.1 O.I.S. (S-R100500) L-Mount Lens
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
S-R100500

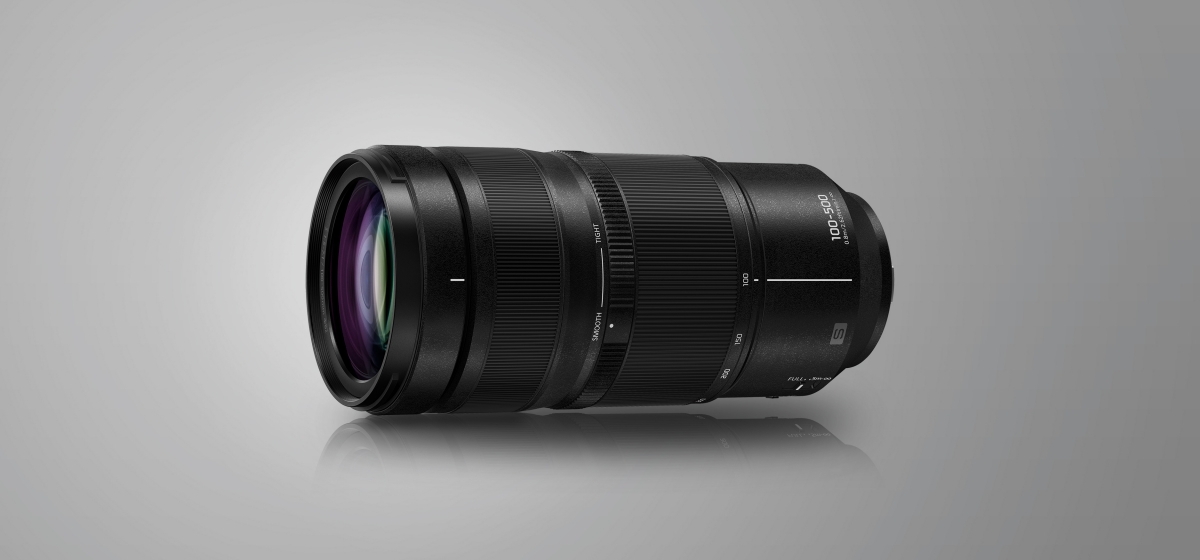

LUMIX S 100-500mm F5-7.1 O.I.S.
An ultra-telephoto zoom lens that combines a 500mm (5x optical zoom) reach, the longest in the LUMIX S series,* with outstanding mobility for field use. Compatible with optional teleconverters.
*As of September 2025, among LUMIX S Series interchangeable lenses.
Features
Carry the power of 500mm anywhere
An 500mm ultra-telephoto zoom lens that’s ready to go wherever you are. As the longest in the LUMIX S series,* it offers excellent handling and outstanding image quality, ideal for capturing distant subjects like elusive birds, wildlife, or sports scenes where tripods aren’t allowed. With the optional 2x teleconverter (DMW-STC20), you can reach an impressive 1000mm focal length.
*As of September 2025, among LUMIX S Series interchangeable lenses.
Incredible image expression—no matter the distance.
Sharp detail from 100 to 500mm
Exceptional image quality from 100mm to 500mm, faithfully capturing fine details across the frame. At 500mm, the lens offers dramatic compression effects while maintaining clarity. Well-suited for everything from the intricate lines of vehicles to the delicate textures of birds and wildlife.
Additionally, with the Hybrid Zoom feature*, you can extend your zoom range up to Approx. 1,562mm** for both photos and videos.
*This function combines optical zoom and crop zoom, allowing you to extend the telephoto range using only the zoom ring without changing the focal length at the wide-end. **Compatible with the DC-S1M2, S1M2ES, S5M2, S5M2X and S9. When using the DC-S1RM2, the maximum focal length is Approx. 2,120mm. The maximum focal length varies depending on the camera model. Please update the DC-S5M2 to firmware version 3.2 and the DC-S5M2X to version 2.2.
Up to 1000mm with teleconverters
Compatible with the optional 1.4x (DMW-STC14) and 2.0x (DMW-STC20) teleconverters, this lens extends your focal length to 700mm* or even 1000mm*. Even at these extended focal lengths, the compact setup allows handheld shooting without a tripod, making it ideal for dynamic telephotography in the field.
*Use of the teleconverter reduces the effective aperture by one f/stop (DMW-STC14) or two f/stops (DMW-STC20).
**When a teleconverter is attached, the focal length of this lens is limited to 150–500mm.
**When a teleconverter is attached, the focal length of this lens is limited to 150–500mm.
Beautiful bokeh that enhances your subject
Beautiful bokeh is one of the true pleasures of telephoto photography. This lens delivers a smooth transition from in-focus to out-of-focus areas, creating a natural sense of depth and rich texture. Its precision-engineered optics minimize edge outlining, vignetting, and double-line blur, producing stunning bokeh that highlights your subject with clarity and impact.
Capture beauty at your feet
Not just for distant subjects, this ultra-telephoto zoom lens also makes it easy to capture beauty close up. With the closest focusing distance of 0.8m* at the wide end and a maximum magnification of 0.36x** at the telephoto end, it's ideal for everything from blooming flowers to butterflies that land nearby.
*0.8m (at focal length 100mm), 1.5m (at focal length 500mm)
**0.16x (at focal length 100mm), 0.36x (at focal length 500mm)
**0.16x (at focal length 100mm), 0.36x (at focal length 500mm)
S 100-500 F5-7.1 lens construction
Longer focal lengths tend to introduce chromatic aberration, which can reduce contrast and cause color bleeding. That’s why the lens has a carefully optimized arrangement of two UED (Ultra Extra-low Dispersion) and two ED (Extra-low Dispersion) elements. The UED elements offer even lower dispersion than ED elements, delivering performance close to that of fluorite. This combination effectively corrects axial chromatic aberration, ensuring sharp, high-contrast results.
S 100-500 F5-7.1 MTF chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this lens delivers uncompromising image quality.
･For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Up to 7 stops* of image stabilization with Dual I.S. 2
In addition to the optical image stabilization (O.I.S.), this lens supports Dual I.S. 2, which works together with the camera’s B.I.S. to deliver up to 7 stops* of compensation at the telephoto range. Normally, the correction angle decreases as the focal length increases, but Dual I.S. makes it possible to compensate for camera shake even in the telephoto range.
Whether shooting handheld at telephoto or using slow shutter speeds, you can shoot confidently without worrying about hand-shake blur.
Whether shooting handheld at telephoto or using slow shutter speeds, you can shoot confidently without worrying about hand-shake blur.
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=500mm. When DC-S1RM2 is used.]
Easy to carry, ready for the field
With a 500mm reach packed into a body approximately 196.1mm in length and weighing around 1,285g, this ultra-telephoto zoom lens is ready wherever the action takes you. It's easy to bring along, even in locations where heavy gear is impractical or tripods are not allowed. Its excellent mobility allows for handheld shooting, so you never miss a decisive moment.

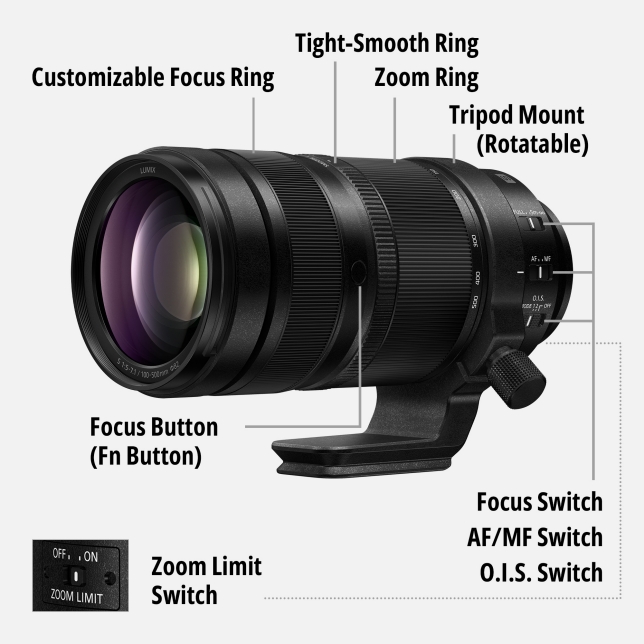

Responsive controls for every shooting situation
Designed to adapt to your workflow, this lens offers responsive control in a wide range of shooting situations. You can switch O.I.S. modes or adjust zoom torque with the tight-smooth ring for smooth and stable telephoto shots. Frequently used functions can be assigned to the customizable focus ring or focus button (Fn button) for instant access. In manual focus mode, the lens offers precise, intuitive adjustments that align with your creative intent. Even when mounted on a tripod, the bundled tripod mount allows you to rotate the lens between horizontal and vertical positions without moving the tripod head.

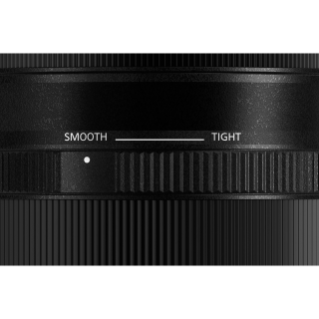

Tight-smooth Ring
The new tight-smooth ring lets you adjust the zoom ring's feel for optimal control. From delicate framing to fast zooming, you can achieve the precise handling you need while preventing unintended zoom movements.

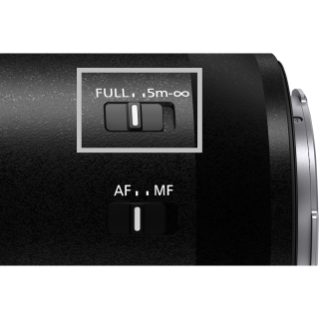

Focus Switch
The focus switch lets you choose between FULL and LIMIT settings to streamline focusing and respond instantly to fast-moving subjects.

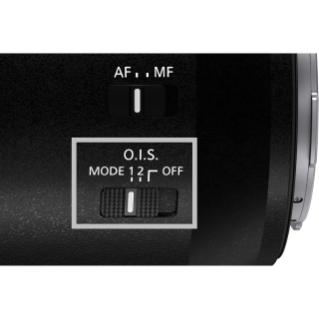

O.I.S. Switch
Switch between O.I.S. modes to match your shooting style. MODE 1 is ideal for general shooting, while MODE 2 is optimized for panning shots, automatically detecting and compensating for the direction of motion.

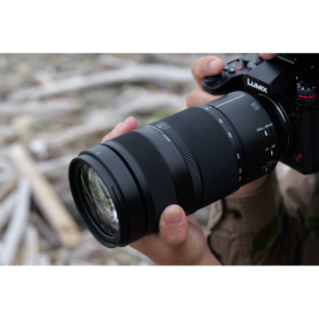

Customizable Focus Ring
The focus ring can be used as a control ring,* allowing you to assign key functions such as aperture and exposure compensation.
*Compatible with the DC-S1RM2, DC-S1M2 and DC-S1M2ES. Please update the DC-S1RM2 to firmware version 1.2.

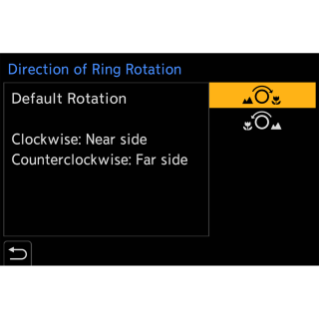

Direction of Ring Rotation
You can change the rotation direction of the focus ring to match your preferred operating style.*
*Compatible with the DC-S1RM2, DC-S1M2 and DC-S1M2ES. Please update the DC-S1RM2 to firmware version 1.2.

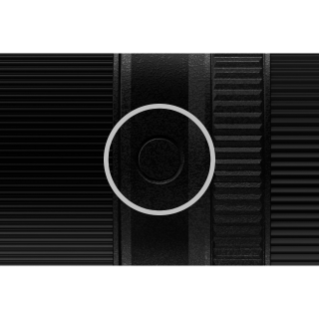

Focus Button (Fn Button)
The lens also features a Focus button that lets you quickly access assigned functions such as Hybrid Zoom*, which smoothly extends your telephoto range.
*This function combines optical zoom and crop zoom, allowing you to extend the telephoto range using only the zoom ring without changing the focal length at the wide-end.
Manual Focus While Zooming
You can manually adjust focus while zooming, enabling smooth focus transitions between subjects and expanding your creative possibilities.

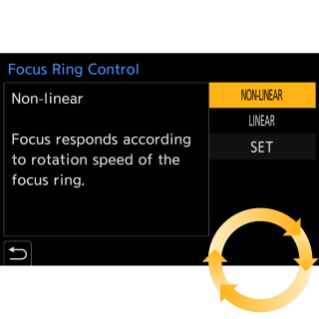

Non-Linear Mode
The focus ring supports both linear and non-linear modes. In non-linear mode, the focus shifts vary depending on how fast you turn the ring, allowing for quick adjustments.

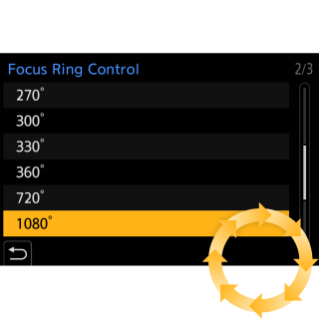

Linear Mode
In linear mode, focus shifts at a consistent, user-defined rate, providing precise, mechanical-like control especially useful for intuitive and accurate focusing during video shooting.
Operability and Reliability
A Dual Phase Linear Motor and the latest optical encoder enables high-speed, high-precision autofocus performance.
Dual Phase Linear Motor: A new actuator that delivers approximately three times the thrust of Panasonic’s conventional voice coil-type linear motors of the same volume, while maintaining high speed, high precision, and quiet operation.

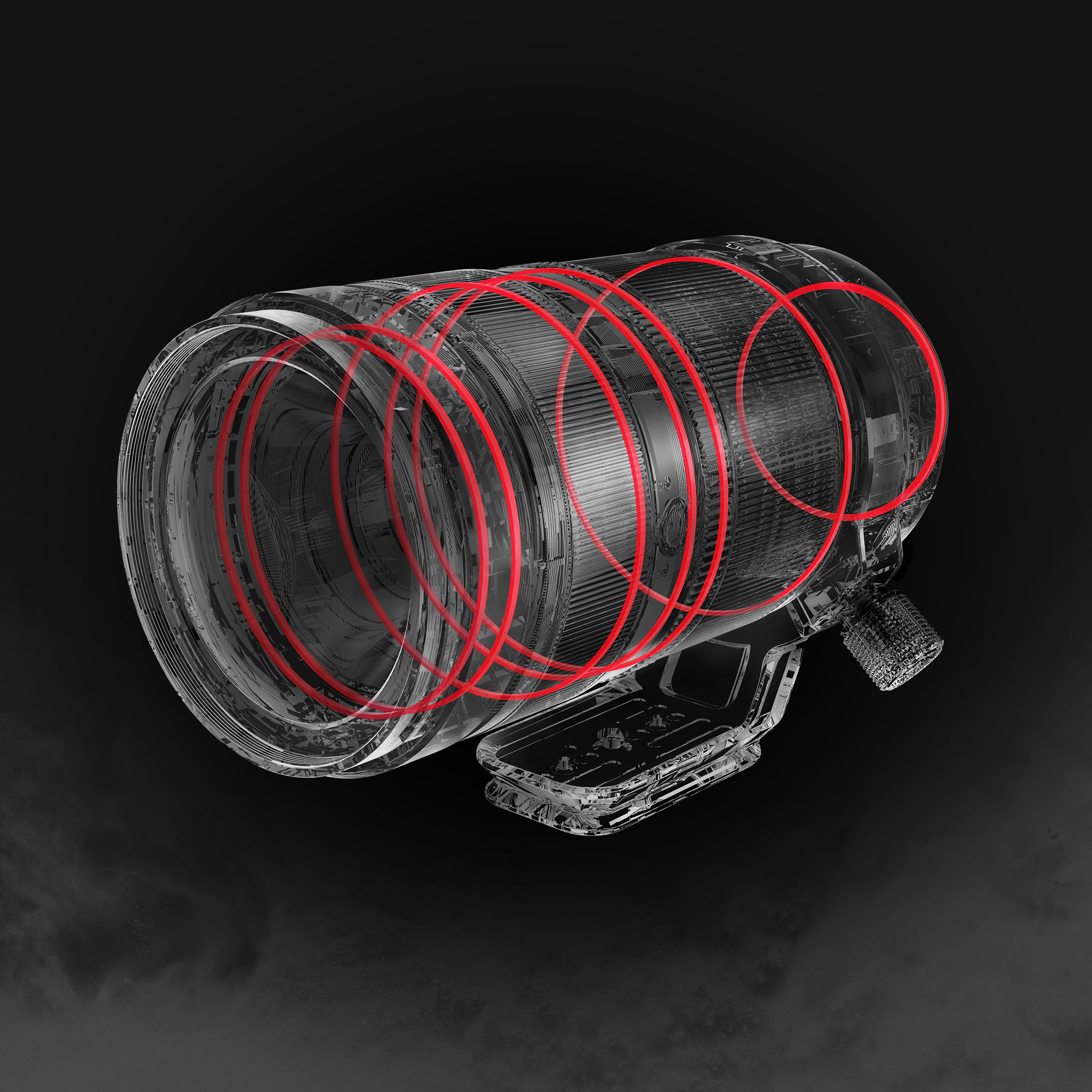

This lens is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction* and allowing you to shoot in temperatures as low as -10°C. The fluorine coating applied to the front lens makes it easy to remove oil-based dirt sticking to it.
･When attached to a LUMIX dust- and splash-resistant camera body. Dust and splash resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

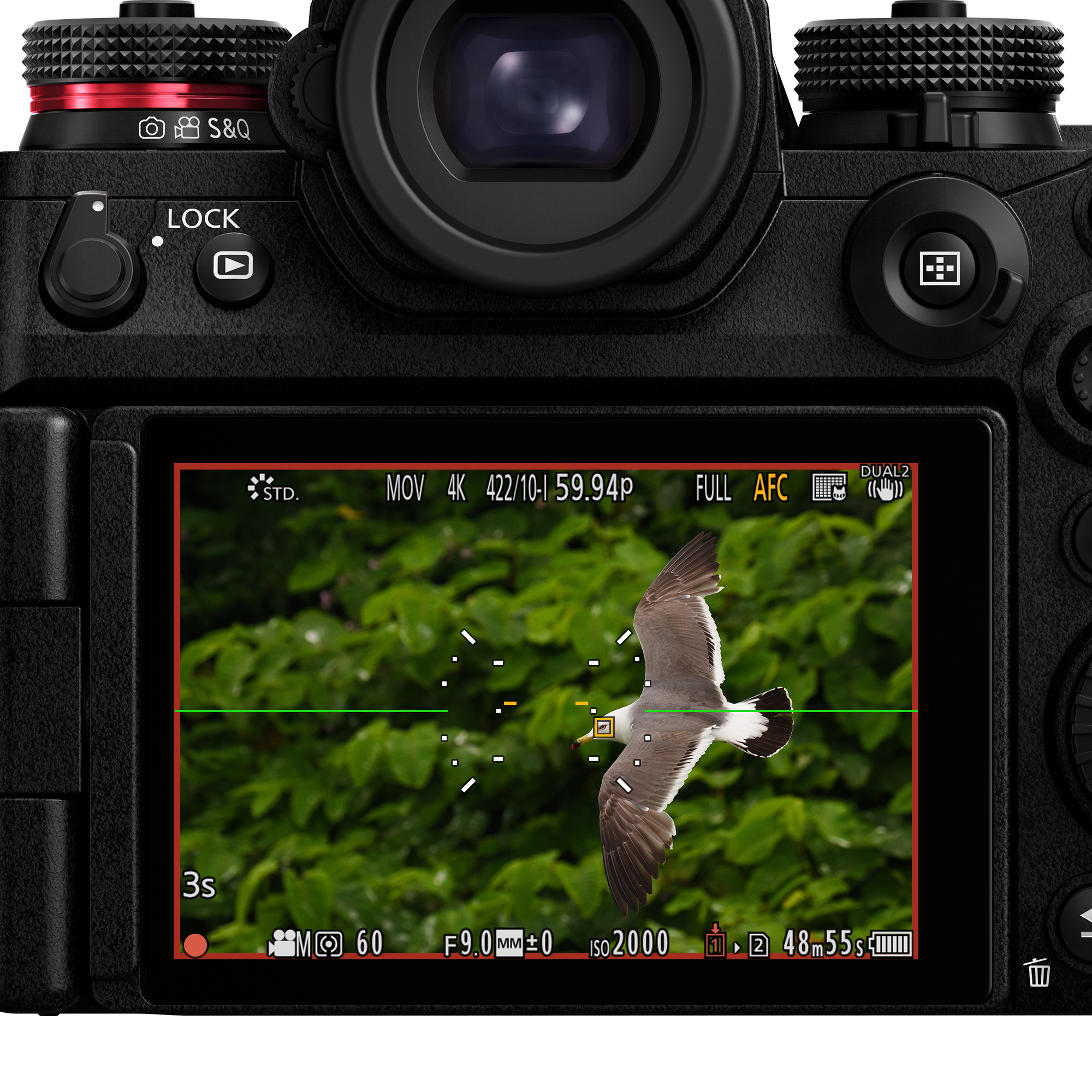

Advanced optical design and an optimized internal barrel structure effectively suppress focus breathing. In high-contrast scenes, micro-step aperture control enables smooth F-stop transitions, preventing sudden exposure changes.
Consideration for the environment and green initiatives
LUMIX is taking steps to become more eco-conscious. We have reduced the number of packaging components by 11%, and the use of plastic materials by 73% compared to the previous model. Furthermore, to reduce environmental impact, we have incorporated molded pulp materials in our packaging.
Get Inspired
Specs
Size and Weight
- Height
- 92.0mm
- Width
- 92.0mm
- Depth
- 196.1mm
- Weight
- 1,285g
Approximately. Weight excluding lens front cap, lens rear cap, lens hood and external tripod mount. Length from the tip of the lens to the base side of the lens mount.
L-Mount- Dust, splash and freeze-resistant design
100-500mm ultra-telephoto zoom lens with outstanding mobility
Compatible with optional 1.4x and 2.0x teleconverters
Closest focusing distance: 0.8m (Wide) / Maximum magnification: 0.36x (Tele)
Up to 7 stops of image stabilization with Dual I.S. 2
Dust, splash and freeze-resistant design and fluorine coating
Lens Construction
-
19 elements in 12 groups (2 UED lenses, 2 ED lenses, 2 UHR lenses)
Mount
-
L-Mount
Optical Image Stabilizer
-
Yes
Focal Length
-
f=100-500mm
Aperture Type
-
11 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
-
F5 (Wide) - F7.1 (Tele)
Minimum Aperture
-
F29 (Wide) - F40 (Tele)
Closest Focusing Distance
-
0.80m/2.62ft (Wide) / 1.50m/4.92ft (Tele)
Maximum Magnification
-
0.16x (Wide) / 0.36x (Tele)
Diagonal Angle of View
-
24°(Wide) - 5.0°(Tele)
Dust and Splash Resistant
-
Yes*
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Recommended Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
Filter Size
-
φ82mm
Max. Diameter
-
φ92.0mm / 3.62inch (excluding external tripod mount)
Overall Length
-
Approx. 196.1mm / 7.72inch (from the tip of the lens to the base side of the lens mount)
Weight
-
Approx. 1,285g / 2.83lb (excluding lens cap, lens rear cap, lens hood and external tripod mount)
Standard Accessories
-
Lens front cap, Lens rear cap, Lens hood, External tripod mount
