X-Premium Inverter Single Split with nanoe™ X - ZZP-SG1001A
ZZP-SG1001A
24-Hour Quality Air
Panasonic X-Premium Inverter comes with nanoe™ X technology and Panasonic Comfort Cloud App for continuous 24-hour air protection. Enjoy comfortable cooling in optimal environment with Panasonic innovative solutions such as AEROWINGS, iAUTO-X and Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO mode. While the compact design allows installation in tight spaces, its modern, elegant flair fits perfectly in any interior.

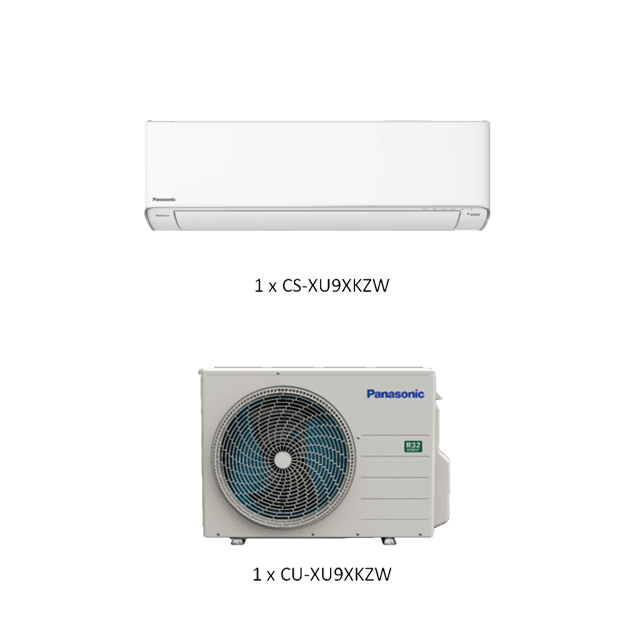

This Bundle includes:
1 x CU-XU9XKZ (Outdoor Unit)
1 x CS-XU9XKZW (Indoor Unit)
This Bundle includes:
1 x CU-XU9XKZ (Outdoor Unit)
1 x CS-XU9XKZW (Indoor Unit)
Specs
Size and Weight
- Height
- 295mm
- Width
- 870mm
- Depth
- 229mm
- Weight
- 10kg
*Please check the minimum space requirements for installation.
nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours
Manage your air conditioner using your mobile device with Comfort Cloud App
15 meters long air distance with the improved new AEROWINGS
iAUTO-X with Humidity Sensor lets you enjoy better sleep with optimal comfortable cooling
Balances energy savings and comfort using ECO Mode with A.I. Control
Basic Specification
-
Model
-
Indoor (50 Hz)
-
1 x CS-XU9XKZW (Indoor Unit)
-
-
Outdoor
-
1 x CU-XU9XKZ (Outdoor Unit)
-
-
-
Cooling Capacity (min-max)
-
2.70 (0.98-3.60) kW
9,210 (3,340-12,300) Btu/h
-
-
COP (min-max)
-
5.19 (5.30-4.00) W/W
-
-
EER (min-max)
-
17.71 (18.05-13.67) Btu/hW
-
-
Weighted COP
-
5.8 W/W
-
-
Electrical Data
-
Voltage
-
220-240 V
-
-
Current
-
2.6-2.4 A
-
-
Power Input (min-max)
-
520 (185-900) W
-
-
-
Moisture Removal
-
1.6 L/h
3.4 Pt/h
-
-
Air Circulation
-
Indoor
-
11.8 m³/min (415 ft³/min)
-
-
Outdoor
-
32.0 m³/min (1,130 ft³/min)
-
-
-
Noise Level (220V-2240V)
-
Indoor (H / L / Q-Lo)
-
42/26/19 dB(A)
-
-
Outdoor (H)
-
47 dB(A)
-
-
-
Dimensions (Indoor)
-
Height
-
295 mm (11-5/8 inch)
-
-
Width
-
870 mm (34-9/32 inch)
-
-
Depth
-
229 mm (9-1/32 inch)
-
-
-
Dimensions (Outdoor)
-
Height
-
542 mm (21-11/32 inch)
-
-
Width
-
780 mm (30-23/32 inch)
-
-
Depth
-
289 mm (11-13/32 inch)
-
-
-
Net Weight
-
Indoor
-
10 kg (22 lb)
-
-
Outdoor
-
27 kg (60 lb)
-
-
-
Refrigerant Pipe Diameter
-
Liquid Side
-
ø 6.35 mm (1/4 inch)
-
-
Gas Side
-
ø 9.52 mm (3/8 inch)
-
-
-
Pipe Extension
-
Chargeless Pipe Length
-
7.5 m
-
-
Maximum Pipe Length
-
20 m
-
-
Maximum Elevation Length
-
15 m
-
-
Additional Refrigerant Gas*
-
10 g/m
-
-
-
Power Supply
-
Outdoor
-
Comfort Features
-
iAUTO-X
-
Yes (Limited function when connected to multi-split system.)
-
-
Humidity Sensor
-
Yes (Limited function when connected to multi-split system.)
-
-
ECO Mode with A.I.
-
Yes (Limited function when connected to multi-split system.)
-
-
Inverter Control
-
Yes
-
-
Sleep Mode
-
Yes
-
-
Quiet Mode
-
Yes
-
-
Soft Dry Operation Mode
-
Yes
-
-
Personal Airflow Creation
-
Yes
-
Cleaner Air Features
-
nanoe™ X
-
Yes
-
-
nanoe-G
-
Yes
-
-
Odour-Removing Function
-
Yes
-
-
Removable, Washable Panel
-
Yes
-
Convenience Features
-
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
-
-
LCD Wireless Remote Control
-
Yes
-
-
Wireless LAN Remote Control For Internet Connection
-
Yes (Built-In)
-
-
Wired Remote Control
-
Yes (Optional)
-
Reliability Features
-
Random Auto Restart
-
Yes (32 Restart Patterns)
-
-
Blue Fin Condenser
-
Yes
-
-
Long Piping (max.)
-
20 m
-
-
Top Panel Maintenance Access
-
Yes
-
-
Self-Diagnostic Function
-
Yes
-
Note
-
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
