ZZP-SG2002A Panasonic XU Series Multi Split System-2 (XKZW) 9K + 12K BTU
ZZP-SG2002A
Panasonic XU Series Multi Split System-2 (XKZW) 9K + 12K BTU
This bundle includes:
1 x CU-2XU20YBZ
1 x CS-XU9XKZW
1 x CS-XU12KZW
• Highest 5-tick energy efficiency rating.
• Outdoor unit offers a cooling capacity of up to 6.7kW and supports up to 2 indoor units.
• A single outdoor unit connects up to 2 indoor units with independent operational control.
• Increased cooling capacity of indoor units to accommodate for large space or high occupancy level.

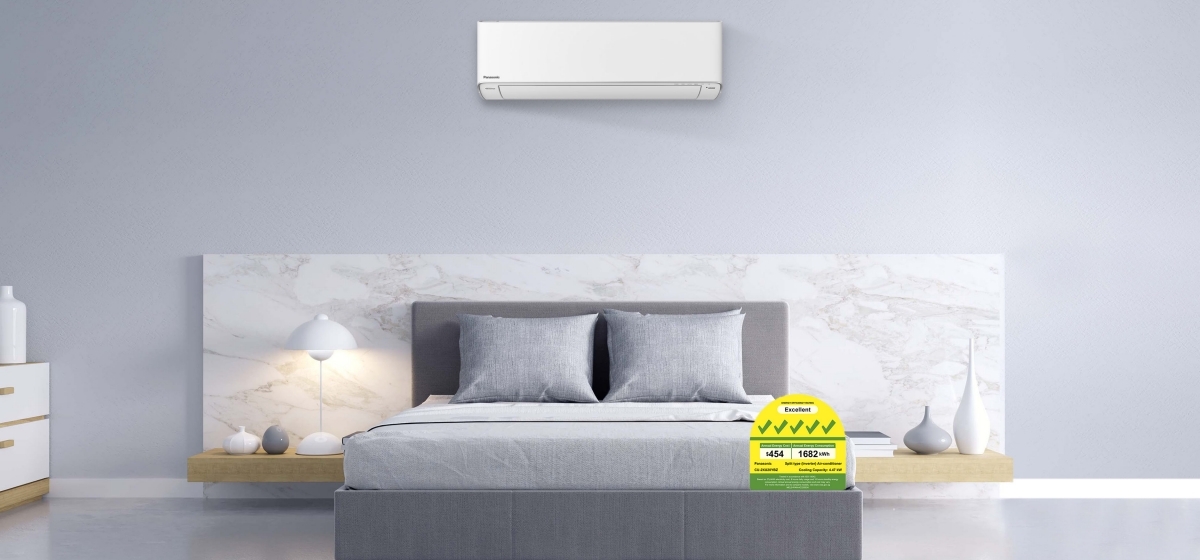

• Wall-mounted X-Premium Inverter R32 equipped with 24-hour nanoe™ X protection to inhibit pollutants.
• Compact design and long piping provides greater installation flexibility for indoor units.
• Indoor units can be controlled with mobile devices when connected to the Internet and are compatible for voice control.
1 x CU-2XU20YBZ
1 x CS-XU9XKZW
1 x CS-XU12KZW
• Highest 5-tick energy efficiency rating.
• Outdoor unit offers a cooling capacity of up to 6.7kW and supports up to 2 indoor units.
• A single outdoor unit connects up to 2 indoor units with independent operational control.
• Increased cooling capacity of indoor units to accommodate for large space or high occupancy level.
• Wall-mounted X-Premium Inverter R32 equipped with 24-hour nanoe™ X protection to inhibit pollutants.
• Compact design and long piping provides greater installation flexibility for indoor units.
• Indoor units can be controlled with mobile devices when connected to the Internet and are compatible for voice control.
Specs
-nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours
-Manage your air conditioner using your mobile device with Comfort Cloud App
-15 meters long air distance with AEROWINGS
-iAUTO-X lets you enjoy better indoor environment with optimal comfortable cooling
-Balances energy savings and comfort using ECO Mode with A.I. Control
-5 tick energy efficiency
Basic Specification
-
Model
-
ZZP-SG2002A
-
-
Cooling Capacity (min-max)
-
4.50 (1.50 ~ 6.70) kW
15,300 (5,120 -22,800) Btu/h
-
-
Power Source
-
Single Phase, 220V-240V, 50Hz
-
-
Maximum Connectable Capacity
-
2 Units
-
-
Maximum Connectable Indoor
-
9.5 kW
-
