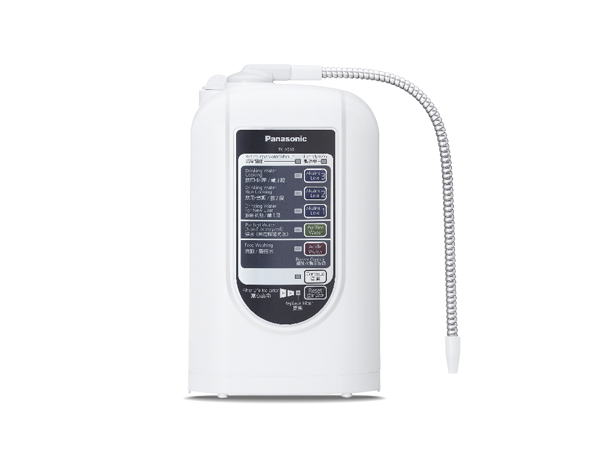

Alkaline Ionizer with Advanced Water Purification TK-AS45
Alkaline Ionizer
TK-AS45
Generates Multi-functional Water to Support Your Life
Five kinds of water generation for a variety of applications - three levels of alkaline ionized water, acidic ionized water and purified water. As well as being safe to drink, alkaline ionized water improves gastrointestinal function and can be used effectively for cooking.
Specs
Size and Weight
- Height
- 291mm
- Width
- 170mm
- Depth
- 101mm
- Weight
- 3.0kg
*Main unit **Approx. 3.5 kg when full of water
AlCare- Made in Japan
- NSF Certified
Generates 5 Kinds of Water
3 Levels Alkaline, Purified, 1 Level Weak Acidic
Ionized Water Output Volume 2.0 L/min. at 100 kPa Water Pressure
Alkaline ionized water is safe to drink, improves gastrointestinal function, and can be used effectively for cooking.
Purified Water Output Volume 2.0 L/min. at 100 kPa Water Pressure
4-stage Purification System Eliminates Harmful Substances: JIS 13 + JWPA 4 Substances, and 99.999% of Bacteria
ELECTROLYSIS
-
Japan medical appliance approval number
-
9 (*¹)
-
-
Electrolytic capability selection
-
5 Levels (Alkaline: 3 levels; Purified, Weak Acidic: 1 level)
-
-
Output water volume (Generated Water Flow Amouunt)
-
3.0 liters/min (at 200 kPa water pressure)
-
-
Electrolysis Method
-
Continuous electrolysis
-
-
Continuous operation capability
-
Approx. 30 mins at Room Temperature (*²)
-
-
Electrolyzer Life
-
Approx. 850 hours Cumulative (Ion Water Production Time, Cleaning Time Only)
-
-
Electrolytic Cleaning
-
Auto Cleaning Method (Cleaning Time: Approx. 8 secs, Waste Water Drain Time: Approx. 30 secs)
-
-
Number of Electrodes
-
3.0
-
-
Material of Electrodes
-
Platinum-Coated Titanium Electrodes
-
PURIFICATION CAPACITY
-
Purified Water Output Volume
-
2.0 litres /min (at 100 kPa Water Pressure)
-
-
Filtration Flow Volume
-
2.5 litres /min (at 100 kPa Water Pressure)
-
-
Cartridge Installed in the Unit
-
TK-AS45C1-EX
-
-
Removable Substances Stiplated by JIS
-
Free Residual Chlorine
-
12,000 litres (*³)
-
-
Turbidity
-
12,000 litres (*⁴)
-
-
Total trihalomethane
-
12,000 litres (*³)
-
-
2-MIB (Mold Smell)
-
12,000 litres (*³)
-
-
Soluble Lead
-
12,000 litres (*³)
-
-
Chloroform
-
12,000 litres (*³)
-
-
Bromodichloromethane
-
12,000 litres (*³)
-
-
Dibromochloromethane
-
12,000 litres (*³)
-
-
Bromoform
-
12,000 litres (*³)
-
-
Tetrachloroethylene
-
12,000 litres (*³)
-
-
Trichloroethylene
-
12,000 litres (*³)
-
-
1,1,1-Trichloroethane
-
12,000 litres (*³)
-
-
CAT (Agriculturial Chemicals)
-
12,000 litres (*³)
-
-
-
Removable Substances Stiplated by JWPA
-
Iron (Fine Particles)
-
yes (*⁵)
-
-
Aluminum (Neutral)
-
yes (*⁵)
-
-
Geosmin (Musty Odor)
-
yes (*⁵)
-
-
Phenoles
-
yes (*⁵)
-
-
-
Bacterial Elimination Rate
-
99.999%
-
-
Filter Usage Limit (Guide to Replacement)
-
Approx. 1 year (*⁶)
-
-
Filter Material
-
Non-woven Fabric, Granular Activated Carbon, Ceramic, Powdered Activated Carbon, Hollow Fiber Membrane
-
-
Non-removable Substances
-
Iron Dissolved in Water, Heavy Metals (Silver, Copper, etc.), Salt (Seawater)
-
GENERAL INFORMATION
-
Rating
-
220 ‐240 V, 50 Hz, 0.3 A
-
-
Electric Power consumption
-
Approx. 55 W (Approx. 1 W During Standby)
-
-
Main Unit
-
Dimensions (W x D x H)
-
170 x 101 x 291 mm
-
-
Weight
-
Approx. 3.0 kg (approx. 3.5 kg when full of water)
-
-
-
Main Unit Usable Water Temperature
-
Under 35 ˚c (Under 80 ˚c for Bypass Selector)
-
-
Main Unit Usable Water Pressure (Dynamic Pressure)
-
70 - 350 kPa
-
-
Usable Water Service Pressure (Static Pressure)
-
70 - 350 kPa
-
-
Length of Power Cord
-
Approx. 3 m
-
-
Power Protection Device
-
Current Fuse: 2.5 A
-
-
Overheating Protection Devices (Inside Isolation Transformer)
-
Overheating Protector (Automatic Resetting Type, Activated at Temperature of 120 ˚c)
-
NOTES
-
(*1) The water which can be used as alkaline ionized water and weak acidic water is equivalent to about 80% of the filtration flow volume.
(*2) This period may be shorter depending on the water quality and usage environment.
(*1) The water which can be used as alkaline ionized water and weak acidic water is equivalent to about 80% of the filtration flow volume.
(*2) This period may be shorter depending on the water quality and usage environment.
(*3) This value for a removal rate of 80% base on JIS S 3201 tests.
(*4) This value is for a filtration flow volume of 50% based on JIS S 3201 tests.
(*5) This figure is 80% of removal rate based on tests according to standards (JWPA B Standards) established by Japan Water Purifier Association (JWPA). Filter performance is not provided for iron (fine particles) and alminum (neutral).
(*6) This period applies when 30 liters of water are used a day.
If 60 liters are used a day, the cartridge usage limit will be approximately halfed.The period may also be significantly less depending of the amount of water used and on its quality and pressure.
