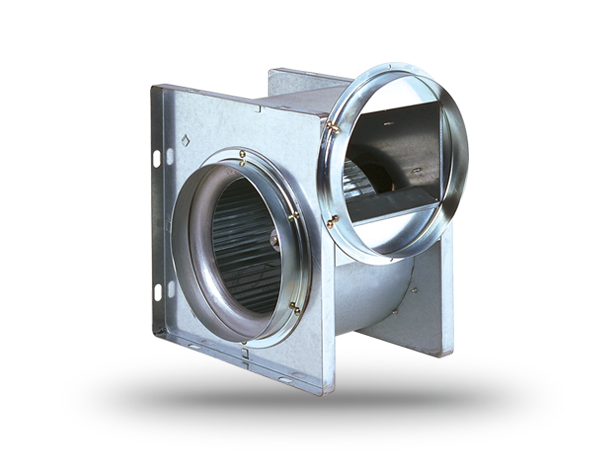

Mini Sirocco Fan

FY-10CG1		230/50hz	Air Volume		144 m³/h 85 CFM
			Consumption [W]		11
			RPM [min^-1]		980
			Noise [dB(A)]	Casing Side	32.0
				Suction Side	38.0
				Discharge Side	38.0
		230/60hz	Air Volume		143 m³/h 84 CFM
			Consumption [W]		13
			RPM [min^-1]		970
			Noise [dB(A)]	Casing Side	32.0
				Suction Side	38.0
				Discharge Side	38.0
		Weight [kg]			3.1
		Impeller Diameter [cm]			10
		Duct Size [mm]			Ø100
FY-12CG1		230/50hz	Air Volume		258 m³/h 152 CFM
			Consumption [W]		21
			RPM [min^-1]		760
			Noise [dB(A)]	Casing Side	34.0
				Suction Side	39.0
				Discharge Side	39.0
		230/60hz	Air Volume		242 m³/h 142 CFM
			Consumption [W]		22
			RPM [min^-1]		725
			Noise [dB(A)]	Casing Side	32.0
				Suction Side	38.0
				Discharge Side	38.0
		Weight [kg]			3.6
		Impeller Diameter [cm]			12
		Duct Size [mm]			Ø150
FY-14CG1		230/50hz	Air Volume		308 m³/h 181 CFM
			Consumption [W]		30
			RPM [min^-1]		930
			Noise [dB(A)]	Casing Side	39.0
				Suction Side	44.5
				Discharge Side	44.5
		230/60hz	Air Volume		284 m³/h 167 CFM
			Consumption [W]		40
			RPM [min^-1]		870
			Noise [dB(A)]	Casing Side	36.0
				Suction Side	41.5
				Discharge Side	41.5
		Weight [kg]			3.8
		Impeller Diameter [cm]			12
		Duct Size [mm]			Ø150
FY-16CG1	230/50hz	Air Volume		High	495 m³/h 291 CFM
		Air Volume		Low	365 m³/h 215 CFM
		Consumption [W]		High	49
		Consumption [W]		Low	41
		RPM [min^-1]		High	1,080
		RPM [min^-1]		Low	875
		Noise [dB(A)]	Casing Side	High	43.5
			Casing Side	Low	38.0
			Suction Side	High	50.0
			Suction Side	Low	44.5
			Discharge Side	High	50.0
			Discharge Side	Low	44.5
	230/60hz	Air Volume		High	470 m³/h 277 CFM
		Air Volume		Low	335 m³/h 197 CFM
		Consumption [W]		High	59
		Consumption [W]		Low	40
		RPM [min^-1]		High	1,060
		RPM [min^-1]		Low	805
		Noise [dB(A)]	Casing Side	High	42.5
			Casing Side	Low	36.0
			Suction Side	High	49.0
			Suction Side	Low	42.5
			Discharge Side	High	49.0
			Discharge Side	Low	42.5
	Weight [kg]				5.3
	Impeller Diameter [cm]				15
	Duct Size [mm]				Ø150
FY-17CG1	230/50hz	Air Volume		High	763 m³/h 449 CFM
		Air Volume		Low	640 m³/h 377 CFM
		Consumption [W]		High	87
		Consumption [W]		Low	74
		RPM [min^-1]		High	920
		RPM [min^-1]		Low	815
		Noise [dB(A)]	Casing Side	High	46.0
			Casing Side	Low	42.5
			Suction Side	High	51.0
			Suction Side	Low	47.0
			Discharge Side	High	51.0
			Discharge Side	Low	47.0
	230/60hz	Air Volume		High	722 m³/h 425 CFM
		Air Volume		Low	593 m³/h 349 CFM
		Consumption [W]		High	95
		Consumption [W]		Low	79
		RPM [min^-1]		High	850
		RPM [min^-1]		Low	730
		Noise [dB(A)]	Casing Side	High	44.5
			Casing Side	Low	44.0
			Suction Side	High	49.0
			Suction Side	Low	45.0
			Discharge Side	High	49.0
			Discharge Side	Low	45.0
	Weight [kg]				8.8
	Impeller Diameter [cm]				18
	Duct Size [mm]				Ø200
FY-19CG1	230/50hz	Air Volume		High	947 m³/h 557 CFM
		Air Volume		Low	821 m³/h 483 CFM
		Consumption [W]		High	117
		Consumption [W]		Low	109
		RPM [min^-1]		High	1,110
		RPM [min^-1]		Low	1,030
		Noise [dB(A)]	Casing Side	High	50.5
			Casing Side	Low	49.0
			Suction Side	High	55.5
			Suction Side	Low	54.0
			Discharge Side	High	55.5
			Discharge Side	Low	54.0
	230/60hz	Air Volume		High	931 m³/h 548 CFM
		Air Volume		Low	791 m³/h 466 CFM
		Consumption [W]		High	143
		Consumption [W]		Low	127
		RPM [min^-1]		High	1,100
		RPM [min^-1]		Low	985
		Noise [dB(A)]	Casing Side	High	50.0
			Casing Side	Low	48.0
			Suction Side	High	55.0
			Suction Side	Low	53.0
			Discharge Side	High	55.0
			Discharge Side	Low	53.0
	Weight [kg]				9.4
	Impeller Diameter [cm]				18
	Duct Size [mm]				Ø200
FY-21CG1	230/50hz	Air Volume		High	1,420 m³/h 836 CFM
		Air Volume		Low	1,260 m³/h 742 CFM
		Consumption [W]		High	240
		Consumption [W]		Low	220
		RPM [min^-1]		High	1,325
		RPM [min^-1]		Low	1,230
		Noise [dB(A)]	Casing Side	High	57.0
			Casing Side	Low	56.0
			Suction Side	High	61.0
			Suction Side	Low	59.5
			Discharge Side	High	61.0
			Discharge Side	Low	59.5
	230/60hz	Air Volume		High	1,540 m³/h 906 CFM
		Air Volume		Low	1,230 m³/h 724 CFM
		Consumption [W]		High	340
		Consumption [W]		Low	300
		RPM [min^-1]		High	1,430
		RPM [min^-1]		Low	1,180
		Noise [dB(A)]	Casing Side	High	59.0
			Casing Side	Low	54.0
			Suction Side	High	63.0
			Suction Side	Low	58.5
			Discharge Side	High	63.0
			Discharge Side	Low	58.5
	Weight [kg]				15.0
	Impeller Diameter [cm]				20
	Duct Size [mm]				Ø200
FY-21CT1	380/50hz	Air Volume		High	1,450 m³/h 853 CFM
		Air Volume		Low	1,090 m³/h 642 CFM
		Consumption [W]		High	253
		Consumption [W]		Low	177
		RPM [min^-1]		High	1,355
		RPM [min^-1]		Low	1,070
		Noise [dB(A)]	Casing Side	High	57.5
			Casing Side	Low	51.5
			Suction Side	High	61.5
			Suction Side	Low	55.5
			Discharge Side	High	61.5
			Discharge Side	Low	55.5
	380/60hz	Air Volume		High	1,590 m³/h 936 CFM
		Air Volume		Low	1,020 m³/h 600 CFM
		Consumption [W]		High	370
		Consumption [W]		Low	228
		RPM [min^-1]		High	1,485
		RPM [min^-1]		Low	1,030
		Noise [dB(A)]	Casing Side	High	59.5
			Casing Side	Low	50.0
			Suction Side	High	63.5
			Suction Side	Low	54.0
			Discharge Side	High	63.5
			Discharge Side	Low	54.0
	Weight [kg]				14.5
	Impeller Diameter [cm]				20
	Duct Size [mm]				Ø200
Note					For info on test conditions, please refer to the technical sheet.
