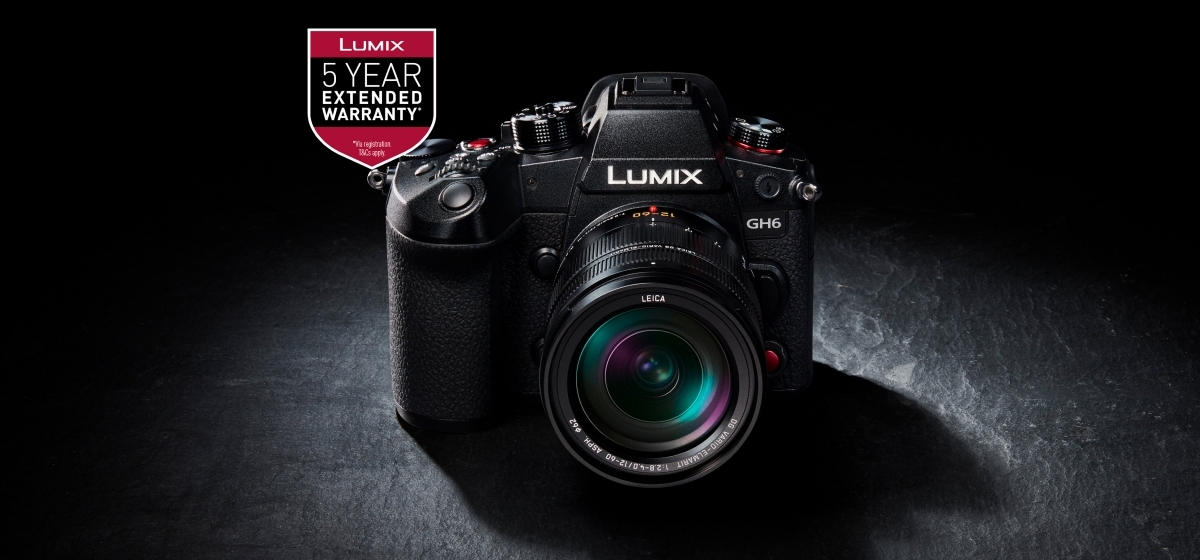

LUMIX GH6 Camera Kit with 12-60mm LEICA DG Lens | DC-GH6LEICA

Price (RRP)$ 4,799.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

DC-GH6LEICA

A New Creative Dimension

Hybrid mirrorless camera featuring new 25.2-megapixel Live MOS sensor, 4:2:2 10-bit C4K/4K 50p/60p video and unlimited recording time.



Includes 12-60mm / F2.8-4.0 LEICA DG lens H-ES12060E.

Zoom In
Zoom Out
Close

Features

Next-Generation Sensor

The LUMIX GH6 features the first 25.2MP Live MOS sensor in Micro Four Thirds™ system. This new sensor offers our highest dynamic range and features a no low-pass filter design, delivering impressive ultra-realistic detail and sharpness.

In a first for the format, the sensor can combine dual simultaneous readouts of high & low gain circuitry producing higher dynamic range with improved detail in highlights.

The high-speed readout delivers C4K/4K 100/120p video recording and 5.7K 50/60p for ultra-smooth slow motion with minimal rolling shutter distortion.
・The Micro Four Thirds™ name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
Next-Generation Sensor

Powered by the New Venus Engine

Powered by the new Venus engine the camera packs twice the processing power to enable higher resolutions, frame rates and bit rates than previously. The processor now supports recording in Apple ProRes HQ internally to CF Express Card for high quality low compression video capture.

The GH6 has a new and improved video encoder offering Intelligent Detail Processing and 3D Noise Reduction optimising resolution, colour, and noise performance offering better video output with the same data rates of conventional models.
Powered by the New Venus Engine

Unlimited Video Recording Time

Specifically designed to offer unlimited oversampled C4K/4K 50p/60p 10-bit 4:2:2 both internal and external recording when used within the recommended operating temperature*. Ideal for production teams in demanding conditions where mobility and high-quality are a must.
*-10-40℃.
Unlimited Video Recording Time

High Frame Rate / Variable Frame Rate 10-bit Recording

Pushing the boundaries of mirrorless cameras producing high quality, high bit rate slow motion the GH6 offers variable frame rate recording in Full HD (1920x1080) 10bit 300fps.

To satisfy the requirements of 4K productions the LUMIX GH6 can deliver 4x slow motion in HFR C4K/4K 10-bit 120p/100p.
・Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
High Frame Rate / Variable Frame Rate 10-bit Recording

5.7K 10-bit 50/60p Recording

Those seeking higher than 4K, the GH6 offers 5.7K 10-bit 50/60p recording with flexibility for greater than 4K delivery in slow-motion and speed ramping or digital zoom and pan in post-production.

The GH6 supports multiple options for Anamorphic video, including 5.8K 10 bit 4:3 mode with de-squeezed preview. Handheld anamorphic shooting is made possible with in-body stabilisation system in anamorphic mode, opening a wide range of possibilities for filmmaking.
5.7K 10-bit 50/60p Recording

A LUMIX first: Apple ProRes Codec Video

Further expanding the versatility of the GH6 for professionals, the camera can record ProRes 422 HQ internally.

The Apple Pro Res HQ codec delivers impressive image quality with low compression, offering shoot, edit, output experience and seamless editing in NLE (non-linear editing) suites, improving workflow and saving time.
・Apple and ProRes are trademarks or registered trademarks of Apple Inc. in the United States and/or other countries.
A LUMIX first: Apple ProRes Codec Video

Smooth Handheld Shooting

Improving on the legacy of the GH5, the GH6 sets the bar for performance of Image Stabilisation (I.S.) systems. Panasonic’s Dual IS system is capable of 7.5-stops of correction for lenses with optical image stabilisation (O.I.S.) reducing the need for tripod or gimbal.

The system features multiple modes for smooth, handheld shots that don’t override intentional movement like panning. “IS Boost” is also included to replicate locked off tripod style shots.
Smooth Handheld Shooting

Versatile Monitor to Shoot from any Angle

The first LUMIX G series camera to feature a tilt and free-angle rear monitor. The monitor can be rotated even with an HDMI or USB cable attached to the camera allowing greater flexibility when viewing the monitor while connected to an external recorder or other devices.
Versatile Monitor to Shoot from any Angle

Double Memory Card Slot for Flexible Data Management

The LUMIX GH6 supports high-bit-rate video recording with a double memory card slot* for a CFexpress Card (CFexpress Type B) and SD Memory Card (UHS-I/UHS-II UHS Speed Class 3, UHS-II Video Speed Class 90). This enables you to use different recording media depending on your shooting needs.

The dual recording mode allows you to save the same content to both cards at once — creating the all-important redundancy.
*For motion pictures with 800Mbps or more, variable frame rate with ALL-Intra, or ProRes, a CFexpress card is required.
Double Memory Card Slot for Flexible Data Management

Learn More About the LUMIX GH6

The LUMIX GH6 satisfies the needs of professional filmmakers to deliver superior image quality, mobility, scalability, in all aspects of video production. Click here to get the full picture.

Learn More About the LUMIX GH6

Get Inspired

Specs

Photo of LUMIX GH6 Camera Kit with 12-60mm LEICA DG Lens | DC-GH6LEICA

Size and Weight

Height
100.3mm
Width
138.4mm
Depth
99.6mm
Weight
823g

All values are approximate. Weight with SD card and battery. Lens is excluded. Body only 739g. Dimensions exclude protrusions.

  • Micro Four Thirds System StandardMicro Four Thirds System Standard
  • 25.2 Megapixels25.2 Megapixels
  • HFR/VFR 10-bit videoHFR/VFR 10-bit video
  • V-LogV-Log
  • 5-Axis Dual I.S. 2 (Image Stabilizer)5-Axis Dual I.S. 2 (Image Stabilizer)
  • 1840k-dot Tilt and Free-angle Monitor1840k-dot Tilt and Free-angle Monitor
  • 3680k-dot OLED Live View Finder3680k-dot OLED Live View Finder
  • Splash, Dust and Freeze-resistantSplash, Dust and Freeze-resistant
  • Wi-FiWi-Fi
  • BluetoothBluetooth

New 25.2-megapixel Digital Live MOS sensor

New Venus Engine

4:2:2 10-bit C4K/4K 50p/60p video and unlimited recording time

HFR/VFR 10-bit video and 5.7K 10-bit 50p/60p video

Includes 12-60mm / F2.8-4.0 LEICA DG lens H-ES12060E

TYPE

  • Type

    • Digital Single Lens Mirrorless camera
  • Lens mount

    • Micro Four Thirds mount

IMAGE SENSOR

  • Type

    • Live MOS sensor (17.3 x 13.0 mm)
  • Camera effective pixels / Total pixels

    • 25.21 megapixels / 26.52 megapixels
  • AR (Anti Reflection) coating

    • Yes
  • Aspect ratio / Colour filter

    • 4:3 / Primary colour filter
  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • Dynamic Range Boost ON: 13+ stops (V-Log)
    Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW
  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1
  • File size (Pixels)

    • 4:3
      • 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
    • 3:2
      • 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
    • 16:9
      • 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
    • 1:1
      • 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.
  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard
  • Colour space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
      MP4: H.264/MPEG-4 AVC, H.265/HEVC
  • Audio format

    • MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      MP4: AAC (2ch 48kHz/16-bit)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz
  • Image area of video

    • Full / Pixel by Pixel
  • MOV (*¹) (*²) *HLG is selectable.

    • 59.94Hz [5.8K] 5760x4320 (4:3)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 59.94Hz [4.4K] 4352x3264 (4:3)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 59.94Hz [C4K] 4096x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 59.94Hz [4K] 3840x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 59.94Hz [FHD] 1920x1080
      • 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
    • 50.00Hz [5.8K] 5760x4320 (4:3)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 50.00Hz [4.4K] 4352x3264 (4:3)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 50.00Hz [C4K] 4096x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 50.00Hz [4K] 3840x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 50.00Hz [FHD] 1920x1080
      • 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
    • 24.00Hz [5.8K] 5760x4320 (4:3)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 24.00Hz [4.4K] 4352x3264 (4:3)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • 24.00Hz [C4K] 4096x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 24.00Hz [4K] 3840x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
    • 24.00Hz [FHD] 1920x1080
      • 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
  • MP4 (*¹)

    • 59.94Hz [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz -
      • -
  • Apple ProRes (*¹) (*²)

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p, 1.9Gbps (Apple ProRes 422 HQ) / 1.3Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p, 1.6Gbps (Apple ProRes 422 HQ) / 1.1Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)

VARIABLE FRAME RATE

  • MOV (*¹) *HLG is selectable.

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *When Image Area of Video is set to FULL.
    • 59.94Hz [C4K] 4096x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 59.94Hz [4K] 3840x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *When Image Area of Video is set to FULL.
    • 50.00Hz [C4K] 4096x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 50.00Hz [4K] 3840x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *When Image Area of Video is set to FULL.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 24.00Hz [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    • 24.00Hz [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.

VIEWFINDER

  • Type

    • OLED Live View Finder
  • Pixels

    • Approx. 3.68 million dots
  • Field of view / Magnification

    • Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
  • Eye sensor

    • Yes

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
  • Pixels

    • Approx. 1.84 million dots
  • Field of view

    • Approx. 100%

FOCUS (*³)

  • Type

    • Contrast AF system
  • DFD technology

    • Yes
  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF
  • AF mode

    • Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
      *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
  • AF detective range

    • EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • AF assist light

    • Yes
  • AF lock

    • Set the Fn button in custom menu to AF lock
  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Centre Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)
  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • Dynamic Range Boost

    • ON / OFF
  • ISO sensitivity (Standard output sensitivity)

    • Still image
      • [Normal]
        Auto / 50 (Extended ISO) / 100-25600

        [V-Log]
        Auto / 125 (Extended ISO) / 250-12800

        *Switchable between 1/3 or 1 EV step.
    • Motion picture
      • [Normal]
        Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800

        [V-Log]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [Hybrid Log Gamma]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        *Switchable between 1/3 or 1 EV step.
  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILISATION SYSTEM

  • B.I.S. (5-axis / 7.5-stop*)
    *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

    Dual I.S. 2 (7.5-stop**)
    **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Colour temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
      Motion picture: 1/25,000 - 1/25
      Creative Video M mode / MF mode: 1/25,000 - 1/8
  • Self timer

    • 10sec, 3 images / 2sec / 10sec / Custom Time
  • Remote control

    • Remote control by DMW-RS2 (sold separately)
  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket

    • 3, 5 or all positions
  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, colour temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
    • Electronic shutter
      • SH75: 75 frames/sec (AFS/MF)
        SH60: 60 frames/sec (AFS/MF)
        SH20: 20 frames/sec (AFS/MF)
        H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
  • Number of recordable images

    • H/M/L*
      RAW+JPEG: More than 40 images
      RAW: More than 65 images**, More than 50 images***
      JPEG: More than 95 images**, More than 90 images***
      *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
      **When using a card with CFexpress Type B
      ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

      SH
      RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

  • Yes

STOP MOTION ANIMATION

  • Yes

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Synchronization speed

    • Less than 1/250 second
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

  • Master pedestal level

    • 31 steps
  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023
  • Wave form monitor / Vectorscope

    • Selectable
  • LUT view assist

    • Supported file types: .vlt, .cube
      Monitor / HDMI
  • HLG view assist

    • Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
  • Synchro scan

    • Yes
  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  • Colour bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes
  • Knee control

    • Yes (in Like709 mode)
  • Red REC frame indicator

    • ON / OFF

VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

LEVEL GAUGE

  • Yes

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

  • Please refer to "OSD" Sheet

PRINT

  • PictBridge compatible

INTERFACE

  • USB

    • USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
  • HDMI (*⁴)

    • HDMI
      • HDMI TypeA
        Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
        Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
    • Playback
      • 59.94Hz: 8K/30p* / C4K/120p** / C4K/60p / C4K/30p / 4K/120p** / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
        50.00Hz: 8K/25p* / C4K/100p** / C4K/50p / C4K/25p / 4K/100p** / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
        24.00Hz: 8K/24p* / C4K/120p** / C4K/24p / 4K/120p** / 4K/24p / 1080/120p / 1080p
        *Only for still image playback. **Only for playback.
  • Remote input

    • φ2.5mm
  • Audio

    • Build-in microphone
      • Stereo
        Wind Noise Canceller: OFF / Standard / High
    • External microphone / External audio device input
      • φ3.5mm for external microphone / external audio device
        MIC (Plug-in Power) / MIC / LINE
        Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
        Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
    • XLR microphone
      • Yes with DMW-XLR1 (sold separately)
    • 4ch mic input
      • Yes with DMW-XLR1 (sold separately)
    • Speaker
      • Monaural
    • Headphone output
      • φ3.5mm
  • Card slot

    • Slot 1: CFexpress Card (CFexpress Type B)
      Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

  • TC IN/OUT

    • Yes with BNC Converter Cable (bundled)
  • Count up

    • Rec Run / Free Run
  • Time code mode

    • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
  • HDMI time code output

    • ON / OFF
  • External TC setting

    • TC Synchronization / TC Output Reference

FAN

  • Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.

LAMP

  • Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac)
      Security: WPA/WPA2/WPA3
      Please refer to "Wi-Fi" sheet
  • Bluetooth

    • Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging, USB power delivery
  • Battery life (CIPA standard)

    • When using CFexpress Card
      • Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using SD memory card
      • Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Continuous recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
  • Actual recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
  • Weight

    • Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
      Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*⁵)

    • -10°C to 40°C (14°F to 104°F)
  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

        LUMIX Sync
        ・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
        https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
    • Playback / Editing
      • ・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories

    • DC-GH6 Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable

      DC-GH6L Kit / DC-GH6M Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap

      ・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • (*1) About motion picture recording

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbp or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbp or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
    Motion pictures with 400Mbp or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
    Motion pictures with 600Mbp or less: CFexpress card, SD memory card with Video Speed Class 90
    Motion pictures with 800Mbp or more, variable frame rate with ALL-Intra, or Apple ProRes: CFexpress card

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbp or more: the maximum file size is 4 GB

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV] in 600Mbps or less: 192GB
    [MOV] in 800Mbps: 640GB
    [ProRes] in [5.7K]: 640GB

    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.

    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
    (*3) About AF
    - Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
    - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
    - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

    (*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).

    (*5) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

Related Products

Reviews

USER REVIEWS

Photo of LUMIX GH6 Camera Kit with 12-60mm LEICA DG Lens | DC-GH6LEICA

Customer Reviews

Accessories

Lenses

XLR Microphone Adaptor / Microphones

Flashes / Video Light

DMW-FL580L

External Flash

Photo of DMW-FL580L

DMW-FL200L

External Flash

Photo of DMW-FL200L

Learn More About The Product

Get Support

for LUMIX GH6 Camera Kit with 12-60mm LEICA DG Lens | DC-GH6LEICA
