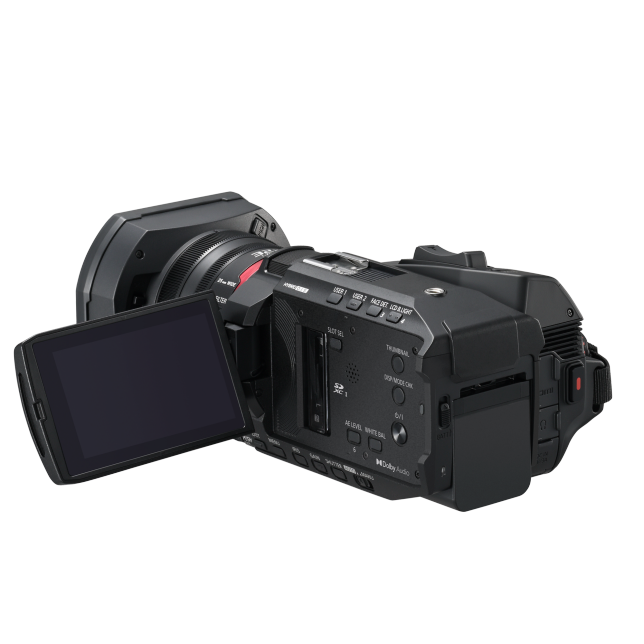

4K Camcorder HC-X1200GC
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
HC-X1200GC
Light Weight 4K 60p Camcorder
Realize 4K 60p shooting with optical performance such as a wide-angle 25mm* lens and optical 24x zoom, as well as a long-life battery to support long hours of shooting in a compact body.
* 35mm camera equivalent.



Features
4K 60p Camcorder Built for On-the-Go Creators
While excelling in mobility and portability, the included high-capacity battery provides 6 hours and 10 minutes of shooting (60 Hz), and the compact body considers the weight balance of the advanced functions when shooting.

Remarkable Optical Performance for Precise Shooting
Wide 25mm* and Optical 24x Zoom Lens
The lens covers the range from 25mm* wide-angle to 600mm* tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K mode, and 48x zoom with FHD mode.
* 35mm camera equivalent.

4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.

HYBRID O.I.S.
In addition to Optical Image Stabilisation, Electronic Image Stabilisation detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.

Versatile Recording Mode
Supports a high bit rate of 100 Mbps for 4K 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MP4) codec, and 120/100fps* Super Slow-motion with 10-bit recording in FHD.
*59.94Hz: 120fps, 50Hz: 100fps

Heat-Dispersing Design
The heat dispersion structure equipped with an ultrathin fan enables a compact, lightweight body to be combined with ultra high definition 4K 60p recording.

Environmental Care and Initiatives
Recycled materials are used for the packaging boxes and molded pulp, and white ink is used for recyclability. It is also compatible with the versatile USB-PD standard to reduce environmental impact.

Functions and Designs that Support Professional Camera Work
1 Two Manual Rings
Two Manual Rings are provided, one for focusing and the other for zoom or iris operation. The use of the Manual Rings is improved by using different-sized rings in the front and rear, so they can be distinguished by the fingers.

2 ND Filter
ND filters are built into the lens to suppress the amount of incident light. The filters can be selected (1/4, 1/16, 1/64, CLEAR) to match the shooting environment. This is handy for shooting at a slow shutter speed in bright daylight.

3 Double SD Card Slot
This enables unlimited* relay recording by simply changing SD cards, and also allows simultaneous recording and background recording** for high recording reliability.
* If the relay recording time reaches 10 hours, shooting will temporarily stop, and then automatically restart a few seconds later.
** Only MP4 FHD format is supported.
** Only MP4 FHD format is supported.

4 3.5-inch LCD with Touch Operation
The approx. 2,760-k dot LCD monitor has an RGB pixel structure for high legibility in bright light, and an electrostatic touch panel for easy menu selection.

5 User Buttons
45 functions can be allocated to the User Buttons. There are a total of 13 User Buttons: six on the body, and seven on the LCD Touch Panel. The FACE DET. and AE LEVEL buttons can also be used as User Buttons.

6 USB PD (USB Type-C)
The USB-C port enables power supply and charging with a mobile battery when the power is turned off.

7 Wired Remote
Equipped with a REMOTE terminal (2.5-mm super mini jack) for remote operation of focus, zoom, REC start/stop, etc.
* A wired remote controller (commercially available) is required.

Specs

Size and Weight
- Height
- 93mm
- Width
- 129mm
- Depth
- 209mm
- Weight
- 800g
All values are approximate. The lens hood is included in the dimensions.
The weight is for the body only and excludes the lens hood and battery.
4K Recording
Optical 24x Zoom
25mm Wide-Angle
4K High Precision AF
5-Axis HYBRID O.I.S.+
4K 10-bit 60p Recording
Wide-Angle 25mm
Optical 24x, Face Detection AF/AE
HEVC 10bit Recording
Long Life Battery & USB PD
2 Manual Rings
SENSOR SECTION
-
Image Sensor
-
1/2.5-type (inch) MOS Sensor
-
-
Effective Pixels
-
8.29 megapixels
-
LENS SECTION
-
F Value
-
F1.8 ― 4.0
-
-
Optical Zoom
-
24x
-
-
Focal Length
-
4.12 ― 98.9 mm
-
-
35 mm Film Camera Equivalent
-
25.0 ― 600.0 mm
-
-
Filter Diameter
-
62 mm
-
-
Lens Brand
-
Panasonic Lens
-
CAMERA SECTION
-
Minimum Illumination
-
1.5 lx (F1.8, Super Gain +, Shutter Speed 1/30 sec)
-
-
Focus
-
Auto / Manual
-
-
Zoom
-
i.Zoom OFF
-
24x
-
-
i.Zoom ON
-
Max. 48x (UHD 32x)
-
-
Digital Zoom
-
2x / 5x / 10x
-
-
-
ND Filter
-
Clear, 1/4, 1/16, 1/64
-
-
IR Filter
-
Incorporates the ON/OFF control function
-
-
White Balance
-
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
-
-
Shutter Speed
-
59.94 Hz mode
-
60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
-
-
50.00 Hz mode
-
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
-
-
-
Slow Shutter Speed
-
59.94 Hz mode
-
59.94i/59.94p: 1/8, 1/15, 1/30 sec
29.97p: 1/8, 1/15 sec
23.98p: 1/6, 1/12 sec
-
-
50.00 Hz mode
-
50i/50p: 1/6, 1/12, 1/25 sec
25p: 1/6, 1/12 sec
-
-
-
Super Slow Recording Frame Rate
-
59.94 Hz mode
-
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
-
-
50.00 Hz mode
-
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
-
-
-
Iris
-
Auto / Manual
-
-
Image Stabiliser
-
Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)
-
RECORDING SECTION
-
Recording Media
-
SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible
-
-
Recording Format
-
MP4, AVCHD
-
-
Video Compression Method
-
MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile
AVCHD: H.264/MPEG-4 AVC High Profile
-
-
Audio Compression Method
-
MP4: AAC, 48kHz/16bit, 2ch
AVCHD: Dolby Audio, 48kHz/16bit, 2ch
-
-
2-slot Function
-
Relay recording, simultaneous recording, background recording (MP4 FHD only)
-
-
System Frequency
-
59.94Hz / 50.00Hz
-
-
Recording / Playback Mode
-
MOV (HEVC)
-
—
-
-
MOV
-
—
-
-
MP4 (HEVC)
-
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
-
-
MP4
-
[4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
FHD 1920x1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: Average 50Mbps (VBR)
FHD 1920x1080 59.94p*/50.00p* LongGOP 28M: Average 28Mbps (VBR)
FHD 1920x1080 23.98p* LongGOP 24M: Average 24Mbps (VBR)
FHD 1920x1080 29.97p*/25.00p* LongGOP 20M: Average 20Mbps (VBR)
*To be added by firmware update.
-
-
AVCHD
-
[4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
-
-
P2
-
—
-
-
P2 Proxy
-
—
-
-
DUAL CODEC SECTION *To be added by firmware update.
-
Recording Format
-
—
-
-
Video Compression Method
-
—
-
-
Audio Compression Method
-
—
-
-
Recording format
-
FHD 50Mbps
-
—
-
-
FHD 8Mbps
-
—
-
-
LIVE STREAMING
-
Video Compression Format
-
—
-
—
-
-
Video Resolution
-
—
-
—
-
-
Streaming Method
-
—
-
—
-
-
Frame Rate
-
—
-
—
-
-
Bit Rate
-
—
-
—
-
-
Audio Compression Format
-
—
-
—
-
-
Network Protocol
-
—
-
NDI
-
—
STILL IMAGE SECTION
-
Recording Format
-
JPEG (DCF/Exif2.2)
-
-
Recording Image Size
-
Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
* Only images cut from video in video playback mode are supported.
-
GENERAL SECTION
-
Power Supply
-
7.28V (Battery) / 9.0V (DC IN)
-
-
Power Consumption
-
Recording: 12.3W, Charging: 15.5W
-
-
Dimensions (W x H x D)
-
Approx. 129 x 93 x 209 mm (5.1 x 3.7 x 8.3 inch) (including lens hood)
-
-
Weight
-
Body: approx. 0.80kg (1.77 lb) (body only, excluding lens hood and battery)
Shooting: approx. 1.1kg (2.43 lb) (including lens hood and battery)
-
-
LCD Monitor (Electrostatic Touch Panel)
-
3.5-inch Wide LCD monitor (About 2,760,000 dots)
-
-
Viewfinder
-
—
-
-
Manual Ring
-
Focus / Zoom or Iris
-
-
Accessory Shoe
-
Yes
-
-
LED Video Light
-
Average Illumination
-
—
-
-
Irradiation Angle
-
—
-
-
Colour Temperature
-
—
-
-
INTERFACE SECTION
-
Video
-
SDI OUT
-
—
-
-
HDMI
-
Type A x 1 (VIERA Link not supported), supports time code output and remote recording control
Output format: 4:2:2 10bit:
3840x2160/59.94p, 50.00p, 29.97p, 25.00p, 23.98p
1920x1080/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p
1280x720/59.94p, 50.00p, 720x480/59.94p, 720x576/50.00p
-
-
-
Audio Input
-
Built-in Microphone
-
Stereo microphone
-
-
Microphone Input
-
3.5mm stereo mini jack x 1
-
-
XLR Input
-
—
-
-
-
Audio Output
-
SDI OUT
-
—
-
-
HDMI
-
2 ch (LPCM)
-
-
Headphone
-
3.5 mm diameter stereo mini jack x 1
-
-
Speaker
-
15 mm diameter, round x 1
-
-
-
Other Input/Output
-
Camera Remote
-
2.5mm diameter super mini jack x 1
-
-
USB
-
Type-C x 1, High-speed USB (USB2.0), Mass storage function (read only)
-
-
DC IN
-
9V/3A, USB Type-C x 1, USB-PD supported
-
-
Wi-Fi
-
Standard
-
—
-
-
Frequency
-
—
-
STANDARD ACCESSORY
-
AC Adaptor
-
—
-
-
AC Cable
-
—
-
-
Rechargeable Battery Pack
-
Yes (5,900mAh)
-
-
Handle Unit
-
—
-
-
Battery Charger
-
—
-
-
IR Remote
-
—
-
-
HDMI Cable
-
—
-
-
USB Cable (C-C)
-
—
-
-
Microphone Holder
-
—
-
-
Microphone Holder Screws
-
—
-
-
Input Terminal Cap
-
—
-
-
Eye Cup
-
—
-
-
Lens Hood
-
Yes
-
-
Editing Software
-
—
-
