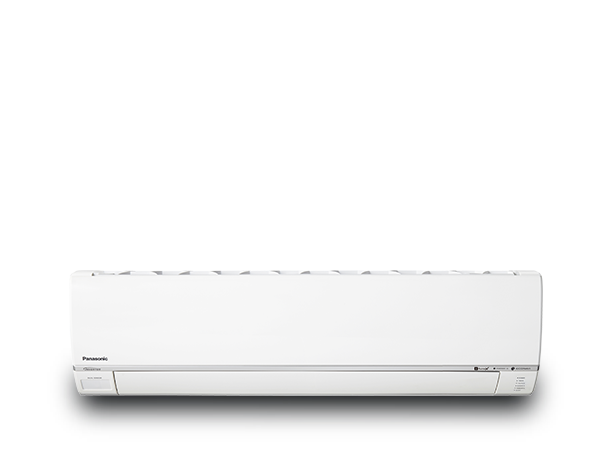

7kW ECONAVI Reverse Cycle Inverter Air Conditioner CS/CU-Z24RKR
| Indoor Unit | CS-Z24RKR | |
|---|---|---|
| Outdoor Unit | CU-Z24RKR | |
| Function | Cooling + Heating | |
| PERFORMANCE | Cooling Capacity Rated Conditions (kW) | 7.00 |
| Cooling Capacity Range - Min ~ Max (kW) | 1.70 ~ 8.10 | |
| EER | 3.55 | |
| AEER | 3.53 | |
| Heating Capacity Rated Conditions (kW) | 8.00 | |
| Heating Capacity Range - Min ~ Max (kW) | 1.70 ~ 8.56 | |
| COP | 3.79 | |
| ACOP | 3.77 | |
| Star Rating - Cool / Heat | 2.5 / 3.0 | |
| SPECIFICATIONS | Electrical Voltage (V) | 240 |
| Running Current - Cool / Heat (A) | 9.1 / 9.4 | |
| Power Input - Cool / Heat (kW) | 1.97 / 2.11 | |
| Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)) | 49 / 37 / 34 | |
| Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)) | 49 / 37 / 34 | |
| Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)) | 54 / 49 | |
| Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)) | 54 / 49 | |
| Sound Power Outdoor - Cool - Hi / S-Lo (dB) | 68 / 63 | |
| Sound Power Outdoor - Heat - Hi / S-Lo (dB) | 68 / 63 | |
| Quiet Mode - Indoor (dB) | 34 | |
| Quiet Mode - Outdoor (dB) | 49 | |
| Dehumidify (L/h) | 4.0 | |
| Air Flow - Cool / Heat (L/s) | 312 / 317 | |
| Indoor Dimensions - H x W x D (mm) | 296 x 1070 x 241 | |
| Outdoor Dimensions - H x W x D (mm) | 695 x 875 x 320 | |
| Weight - Indoor (kg) | 12 | |
| Weight - Outdoor (kg) | 53 | |
| Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm) | 6.35 / 15.88 | |
| Piping Extension Length Min ~ Max (m) | 3 ~ 30 | |
| Pipe Length for Additional Gas (m) | 10 | |
| Additional Refrigerant (R32) (g/m) | 25 | |
| Power Supply | Outdoor | |
| Operating Temperature Range - Outdoor - Cooling (˚C) | 5 ~ 46 | |
| Operating Temperature Range - Outdoor - Heating (˚C) | -15 ~ 24 | |
| Refrigerant Type | R32 | |
| Warranty - Residential | 5 Years Manufacturer's Warranty | |
| FEATURES - ENERGY SAVINGS | ECONAVI | Yes |
| Economy Mode | - | |
| Inverter Control | Yes | |
| P-TECh Compressor | Yes | |
| FEATURES - CLEANER AIR | nanoe-G Air Purifying System | Yes |
| Anti Bacterial Air Filter | - | |
| Odour Removing Function | Yes | |
| Removable, Washable Panel | Yes | |
| FEATURES - COMFORT | iAUTO-X | Yes |
| Aerowings | Yes | |
| Mild Dry Cooling | Yes | |
| Powerful Mode | Yes | |
| Quiet Mode | Yes | |
| Soft Dry Operation Mode | Yes | |
| Fan Mode | Yes | |
| Remote Airflow Control (All Directions) | Yes | |
| Remote Airflow control (Up & Down) | - | |
| Auto Changeover | Yes | |
| Hot Start Control | Yes | |
| Cooling Operation Higher Limit (˚C) | 46 | |
| Heating Operation Lower Limit (˚C) | -15 | |
| FEATURES - CONVENIENCE | 24-hour Dual On / Off Real Setting Timer | Yes |
| Demand Response Enabling Device (DRED) | Yes | |
| 3rd Party Connectivity | Yes | |
| LCD Wireless Remote Controller | Large | |
| Wired Remote Controller | Optional | |
| FEATURES - RELIABILITY | Blue Fin Condenser | Yes |
| Random Auto Restart | Yes | |
| Long Piping (m) | 30 | |
| Top-panel Maintenance Access | Yes | |
| Self Diagnostic Function | Yes | |
