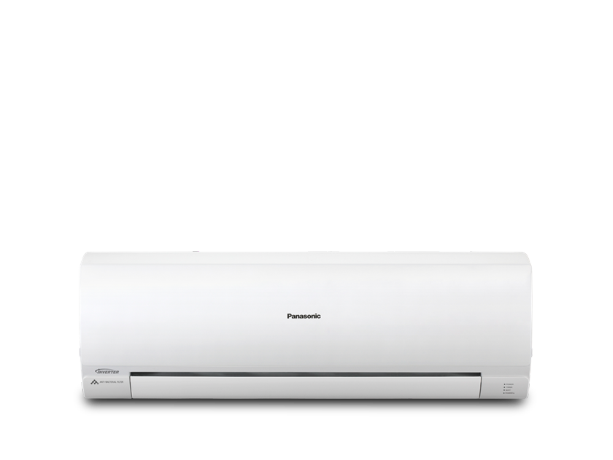

Reverse Cycle Air Conditioning - CS/CU-RE9PKR
| GENERAL | Indoor Unit | CS-RE9PKR |
|---|---|---|
| Outdoor Unit | CU-RE9PKR | |
| Function | Cooling + Heating | |
| PERFORMANCE | Cooling Capacity Rated Conditions (kW) | 2.50 |
| Cooling Capacity Range - Min ~ Max (kW) | 0.90 ~ 3.00 | |
| EER (w/w) | 3.97 | |
| Heating Capacity Rated Conditions (kW) | 3.30 | |
| Heating Capacity Range - Min ~ Max (kW) | 0.90 ~ 4.10 | |
| COP (w/w) | 4.18 | |
| Star Rating - Cool / Heat | 3.0 / 3.5 | |
| SPECIFICATIONS | Electrical Voltage (V) | 240 |
| Running Current - Cool / Heat (A) | 2.80 / 3.50 | |
| Power Input - Cool / Heat (kW) | 0.63 / 0.79 | |
| Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)) | 42 / 27 /22 | |
| Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)) | 42 / 27 /25 | |
| Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)) | 47 / - | |
| Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)) | 48 / - | |
| Sound Power Outdoor - Cool - Hi / S-Lo (dB) | 62 / - | |
| Sound Power Outdoor - Heat - Hi / S-Lo (dB) | 63 / - | |
| Quiet Mode - Indoor (dB) | 22 | |
| Quiet Mode - Outdoor (dB) | 47 | |
| Dehumidify (L/h) | 1.5 | |
| Air Flow - Cool / Heat (L/s) | 202 / 218 | |
| Indoor Dimensions - H x W x D (mm) | 290 x 870 x 214 | |
| Outdoor Dimensions - H x W x D (mm) | 542 x 780 x 289 | |
| Weight - Indoor (kg) | 9 | |
| Weight - Outdoor (kg) | 32 | |
| Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm) | 6.35 / 9.52 | |
| Piping Extension Length Min ~ Max (m) | 3 ~ 15 | |
| Pipe Length for Additional Gas (m) | 7.5 | |
| Additional Refrigerant (R410A) (g/m) | 20 | |
| Power Supply | Outdoor | |
| Operating Temperature Range - Outdoor - Cooling (˚C) | 16 ~ 46 | |
| Operating Temperature Range - Outdoor - Heating (˚C) | -15 ~ 24 | |
| Warranty - Residential | 5 Years Manufacturer's Warranty | |
| FEATURES - HEALTHIER AIR | Nonoe-g Air Purifying System | - |
| Anti Bacterial Air Filter | Yes | |
| Odour Removing Function | - | |
| Removable, Washable Panel | - | |
| FEATURES - COMFORT | ECONAVI | - |
| AUTOCOMFORT | - | |
| Inverter Control | Yes | |
| Mild Dry Cooling | - | |
| Powerful Mode | Yes | |
| Economy Mode | Yes | |
| Heating Operation Lower Limit (˚C) | -15 | |
| Cooling Operation Higher Limit (˚C) | 46 | |
| Soft Dry Operation Mode | Yes | |
| Fan Mode | Yes | |
| Remote Airflow Control (All directions) | - | |
| Remote Airflow control (Up & Down) | Yes | |
| Manual Horizontal Airflow Direction Control | - | |
| Auto Changeover - Inverter | Yes | |
| Automatic Operation Mode | - | |
| Hot Start Control | Yes | |
| FEATURES - CONVENIENCE | 24-hour Dual On / Off Real Setting Timer | Yes |
| 12-hour On / Off Timer | - | |
| Demand Response Compatible | Yes | |
| 3rd Party Connectivity | Yes | |
| LCD Wireless Remote Controller | Yes | |
| Wired Remote Controller | Optional. | |
| FEATURES - RELIABILITY | Blue Fin Condenser | Yes |
| Random Auto Restart | Yes | |
| Long Piping (m) | 20 | |
| Top-panel Maintenance Access | Yes | |
| Self Diagnostic Function | Yes |
