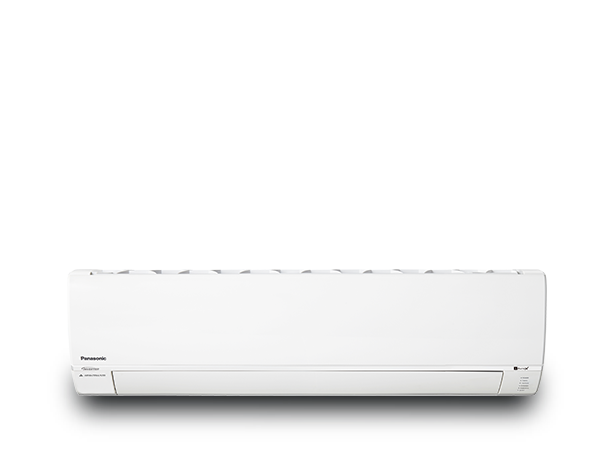

Photo of CS/CU-RZ18RKR

CS/CU-RZ18RKR

Indoor Unit CS-RZ18RKR
Outdoor Unit CU-RZ18RKR
Function Cooling + Heating
PERFORMANCE Cooling Capacity Rated Conditions (kW) 5.00
Cooling Capacity Range - Min ~ Max (kW) 0.90 ~ 6.00
EER 4.31
AEER 4.26
Heating Capacity Rated Conditions (kW) 6.00
Heating Capacity Range - Min ~ Max (kW) 0.90 ~ 6.40
COP 4.32
ACOP 4.27
Star Rating - Cool / Heat 4.0 / 4.0
SPECIFICATIONS Electrical Voltage (V) 240
Running Current - Cool / Heat (A) 5.0 / 6.1
Power Input - Cool / Heat (kW) 1.16 / 1.39
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)) 47 / 34 / 31
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)) 44 / 33 / 29
Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)) 48 / 43
Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)) 48 / 43
Sound Power Outdoor - Cool - Hi / S-Lo (dB) 62 / 57
Sound Power Outdoor - Heat - Hi / S-Lo (dB) 62 / 57
Quiet Mode - Indoor (dB) 31
Quiet Mode - Outdoor (dB) 43
Dehumidify (L/h) 2.8
Air Flow - Cool / Heat (L/s) 295 / 302
Indoor Dimensions - H x W x D (mm) 296 x 1070 x 241
Outdoor Dimensions - H x W x D (mm) 695 x 875 x 320
Weight - Indoor (kg) 12
Weight - Outdoor (kg) 49
Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm) 6.35 / 12.70
Piping Extension Length Min ~ Max (m) 3 ~ 30
Pipe Length for Additional Gas (m) 10
Additional Refrigerant (R32) (g/m) 20
Power Supply Outdoor
Operating Temperature Range - Outdoor - Cooling (˚C) 5 ~ 46
Operating Temperature Range - Outdoor - Heating (˚C) -15 ~ 24
Refrigerant Type R32
Warranty - Residential 5 Years Manufacturer's Warranty
FEATURES - ENERGY SAVINGS ECONAVI -
Economy Mode Yes
Inverter Control Yes
P-TECh Compressor Yes
FEATURES - CLEANER AIR nanoe-G Air Purifying System -
Anti Bacterial Air Filter Yes
Odour Removing Function Yes
Removable, Washable Panel Yes
FEATURES - COMFORT iAUTO-X Yes
Aerowings Yes
Mild Dry Cooling -
Powerful Mode Yes
Quiet Mode Yes
Soft Dry Operation Mode Yes
Fan Mode Yes
Remote Airflow Control (All Directions) Yes
Remote Airflow control (Up & Down) -
Auto Changeover Yes
Hot Start Control Yes
Cooling Operation Higher Limit (˚C) 46
Heating Operation Lower Limit (˚C) -15
FEATURES - CONVENIENCE 24-hour Dual On / Off Real Setting Timer Yes
Demand Response Enabling Device (DRED) Yes
3rd Party Connectivity Yes
LCD Wireless Remote Controller Large
Wired Remote Controller Optional
FEATURES - RELIABILITY Blue Fin Condenser Yes
Random Auto Restart Yes
Long Piping (m) 30
Top-panel Maintenance Access Yes
Self Diagnostic Function Yes
