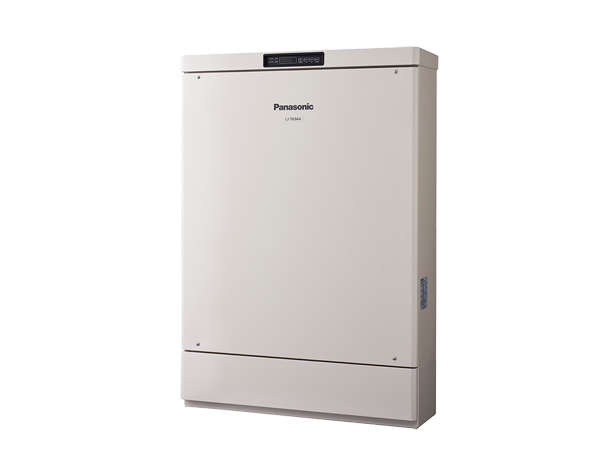

Residential Storage Battery System LJ-SK84A
| Lithium-ion storage battery system | Model number | LJ-SK84A | |
|---|---|---|---|
| Width x Height x Depth [mm] | 966×1380×279 | ||
| Weight | 84kg * 159kg with the batteries included | ||
| Colour | Ivory (3Y7.8/1.1) | ||
| Operating temperature | 0°C to 40°C | ||
| Storage temperature | -20°C to 40°C | ||
| Humidity | 0% to 90% RH (no dew condensation) | ||
| Maximum altitude | 1000m | ||
| Degree of protection in accordance with IEC 60529 | IP54 (Main body) IP44 (Control panel/Display) | ||
| Noise emission | less than 40dB | ||
| Maximum inverter conversion efficiency | 93% | ||
| GRID (Charge) |
Rated voltage | AC230V 1W+N+PE | |
| Rated current | 8.7A | ||
| Rated frequency | 50Hz | ||
| Rated active power | 2.0kW | ||
| Rated apparent power | 2.0kVA | ||
| Total current harmonic distortion | 5% | ||
| GRID (Discharge) |
Rated voltage | AC230V 1W+N+PE | |
| Rated current | 8.7A | ||
| Rated frequency | 50Hz | ||
| Rated active power | 2.0kW | ||
| Rated apparent power | 2.0kVA | ||
| Total current harmonic distortion | 5% | ||
| Back Up (Discharge) |
Rated voltage | AC230V 1W+N+PE | |
| Rated current | 4.3A | ||
| Rated frequency | 50Hz | ||
| Rated active power | 1.0kW | ||
| Rated apparent power | 1.0kVA | ||
| Standard | Safety | AS/NZS 3100 [2009] | |
| Grid | AS 4777-1/-2/-3 [2005] | ||
| EMC | IEC61000-3, IEC61000-6 | ||
| Battery | Model number | LJ-SBK01 | |
| The number of battery pack | 3 pcs. | ||
| Initial usable capacity | 8.0kWh | ||
| Lithium-ion storage battery | Model number | LJ-SBK01 | |
| Rated battery capacity | 2817Wh/1pc. | ||
| Rated voltage | DC46.8V/1pc. | ||
| Weight | 25kg/1pc. | ||
| Storage temperature | -20°C to 40°C (if stored more than 3 months, keep temperature below 30°C) | ||
| Network Adaptor | Model number | LJ-NA02 | |
| Width x Height x Depth [mm] | 150×325×111 | ||
| Weight | 1.4kg | ||
| Colour | White (10Y9/0.5) | ||
| Operating temperature | 0°C to 40°C | ||
| Humidity | 0% to 80% RH (no dew condensation) | ||
| Maximum altitude | 1000m | ||
| Rated voltage | AC230V 1W+N+PE | ||
| Rated current | 0.03A | ||
| Rated frequency | 50Hz | ||
| Network interface [LAN port] | Ethernet | 100BASE-TX/10BASE-T | |
| Number of port | 1 | ||
| Type of connector | RJ-45 | ||
| Communication protocol | HTTP over IPv4 | ||
| Serial interface [RS-485] | Communication method | 2-wire | |
| Transfer rate | 9600bps | ||
| Communication protocol | Modbus RTU | ||
