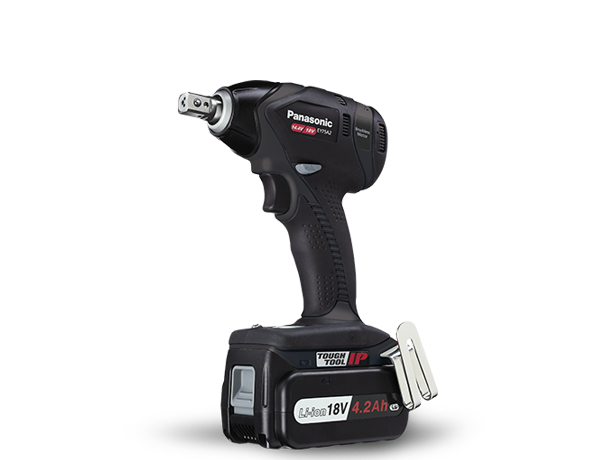

Photo of EY75A2LS2G57 KIT

EY75A2LS2G57 KIT

Feature • 3 Speed (High / Medium / Low)
• Variable speed control / reversible
• LED light to support work
• Electric brake
• With 2 battery packs, battery charger (EY0L82) and carrying case
Max. Torque High/Hard Mode (M16 High tensile bolt tightening for 3 sec.) 18V:205Nm / 14.4V:200Nm
Medium Mode (M14 High tensile bolt tightening for 3 sec.) 18V:140Nm / 14.4V:140Nm
Low/Soft Mode (M10 High tensile bolt tightening for 3 sec.) 18V:50Nm / 14.4V:50Nm
Speed at No Load High/Hard Mode 0-2300rpm
Medium Mode 0-1400rpm
Low/Soft Mode 0-1000rpm
Impact/min. High/Hard Mode 0-3500ipm
Medium Mode 0-2800ipm
Low/Soft Mode 0-2000ipm
Size (LxHxW) / Weight (including battery pack) LS2G 155mm x 242mm x 61mm / 1.65kg
LS2F 155mm x 233mm x 61mm / 1.55kg
Battery Pack and Charging time (using EY0L82B) LS2G 18V / 4.2Ah (EY9L51B)
Usable:55min. / Full:70min.
LS2F 14.4V / 4.2Ah (EY9L45B)
Usable:50min. / Full:60min.
Capacity LS2G Screwing Wood Screws in Yellow Pine ø4.2 mm x 75 mm 550 pcs
ø5.2 mm x 120 mm 120 pcs
Self-Drilling Screws in SPC ø4 mm x 13 mm t=1.6 mm 950 pcs
Bolting Standard Tensil Bolt M16 x 25 mm t=10 mm 1,000 pcs
M14 x 25 mm t=10 mm 1,090 pcs
High Tensil Bolt M12 x 25 mm t=10 mm 350 pcs
LS2F Screwing Wood Screws in Yellow Pine ø4.2 mm x 75 mm 480 pcs
ø5.2 mm x 120 mm 100 pcs
Self-Drilling Screws in SPC ø4 mm x 13 mm t=1.6 mm 770 pcs
Bolting Standard Tensil Bolt M16 x 25 mm t=10 mm 650 pcs
M14 x 25 mm t=10 mm 910 pcs
High Tensil Bolt M12 x 25 mm t=10 mm 280 pcs
