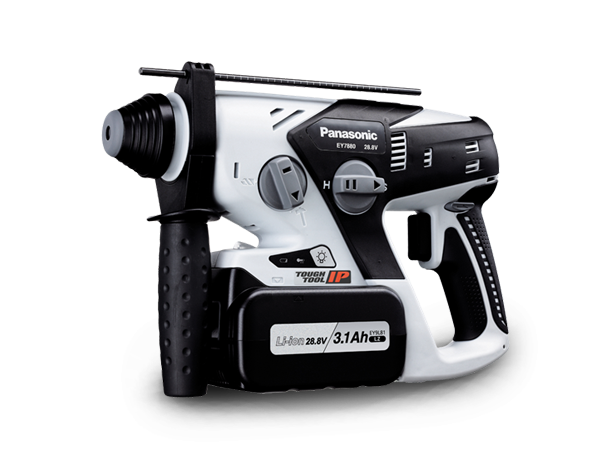

EY7880LZ2T
| DESCRIPTION | Description | 28.8V Cordless Rotary Hammer Drill |
|---|---|---|
| Typical Application | Concrete drilling | |
| Skin Only Option Available (battery and charger not included) | - | |
| POWER SUPPLY | Voltage (V) | 28.8 |
| Battery Pack Type | Li-ion Type Z | |
| Amps (Ah) | 3.1 | |
| Charge Time (mins) | Full: 80 (using EY0L81B charger) Usable: 65 | |
| Speed - High / Hard at No Load (rpm) | 0 - 920 | |
| Speed - Medium at No Load | - | |
| Speed - Low / Soft at No Load (rpm) | 0 - 500 | |
| Speed - Impact Mode at No Load (rpm) | - | |
| Speed - Drill & Driver Mode at No Load (rpm) | - | |
| Impact - High Mode (ipm) | - | |
| Impact - Medium (ipm) | - | |
| Impact - Soft Mode (ipm) | - | |
| Maximum Torque - Impact Mode (Nm) | - | |
| Maximum Torque - Drill & Driver Mode (Nm) | - | |
| Maximum Torque - Stalling (Nm) | - | |
| Maximum Torque - Instant (Nm) | - | |
| Maximum Torque - High (Nm) | - | |
| Maximum Torque - Medium (Nm) | - | |
| Maximum Torque - Low (Nm) | - | |
| Ejection Pressure (kgf) | - | |
| Capacity (ml) | - | |
| FEATURES | Tough Tool - IP56 Approval | Yes |
| Safety Switch Lock | - | |
| Clutch Stages | - | |
| Electric Brake | - | |
| Chuck Type | 3/4" SDS-plus bit system | |
| No of Speeds | 2 | |
| Variable Speed Control / Reversible | Yes | |
| Slow Start Switch | Yes | |
| LED Light | Yes | |
| Ergonomic Design | Ergonomic soft rubber grip for stress reduction | |
| Additional Design Features | 360 o auxiliary side handle with built-in depth gauge Cooling & dust-proof design | |
| FEATURES - DRILL amp DRIVER | Maximum Drill Diameter - Wood (mm) | - |
| Maximum Drill Diameter - Metal (mm) | - | |
| Maximum Drill Diameter - Concrete (mm) | - | |
| Maximum Holesaw (mm) | - | |
| Maximum Screws Driving - Wood (mm) | - | |
| Maximum Screws Driving - Self-Drilling Screw (mm) | - | |
| Maximum Screws Driving - Machine Screw (mm) | - | |
| FEATURES - HAMMERING | Hammering Force - Soft Mode (kN) | - |
| Hammering Force - Hard Mode (kN) | 23.6 | |
| Blows Per Minute - Hard Mode | 0 - 4500 | |
| Blows Per Minute - Soft Mode | 0 - 2800 | |
| FEATURES - GRINDING amp CUTTING | Grinding Wheel Diameter (mm) | - |
| Blade Diameter (mm) | - | |
| Maximum Cutting Depth (mm) | - | |
| Stroke Per Minute at No Load | - | |
| Stroke Length (mm) | - | |
| Cutting Performance - Wood (mm) | - | |
| Cutting Performance - Mild Steel (mm) | - | |
| Cutting Performance - Aluminium (mm) | - | |
| GENERAL | Dimensions - L x H x W (mm) | 319 x 203 x 83 |
| Weight (kg) | 3.85 | |
| ACCESSORIES | Standard | 28.8V Battery Pack (3.1Ah Li-ion Battery Type Z) EY9L81B57 x 2 Charger for Li-ion EY0L81B57 |
| Optional | Chiseling Attachment for Rotary Hammer EY9HX402E57 |
