S-18PUY7H5YD

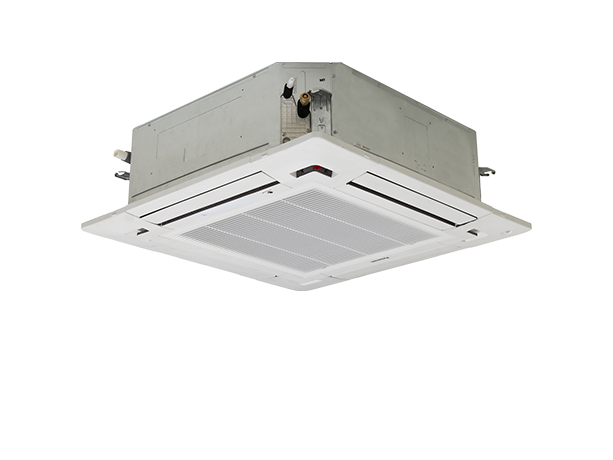

HOT & COLD INVERTER CASSETTE AC

Specs

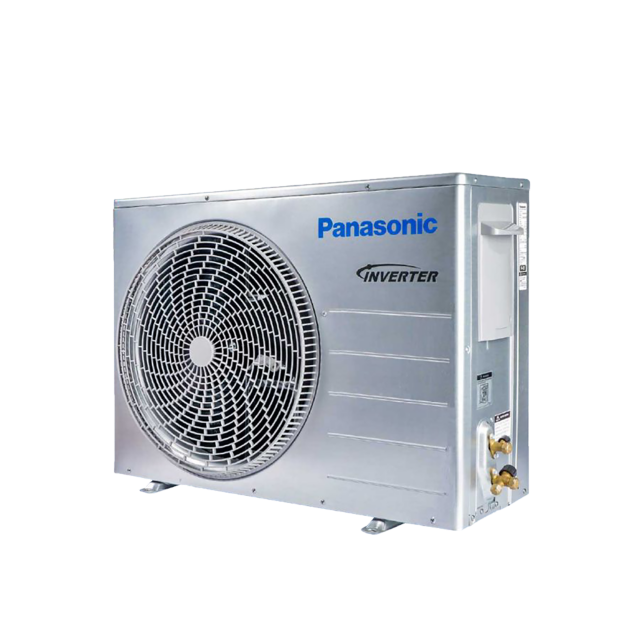

Photo of S-18PUY7H5YD

Simplistic Design

LCD Wireless Remote Controller

Operation Range up to 52°C

Model

  • Indoor Unit

    • S-18PUY7H5YD
  • Outdoor Unit

    • U-18PZY7H5Y
  • Panel

    • CZ-KPUB7HY

Tonnage Class

  • TR

    • 1.5

Capacity

  • Cooling Standard [Min. - Max.]

    • Btu/h
      • 18002 [8189-19107]
    • W
      • 5276 [2400-5600]
  • Heating Standard [Min. - Max.]

    • Btu/h
      • 18426 [8359-19619]
    • W
      • 5400 [2450-5750]

ISEER

  • 5.10

Star Rating

    • 5★

Power Input

  • Cooling Standard [Min. - Max.]

    • W
      • 1305 [450-1600]
  • Heating Standard [Min. - Max.]

    • W
      • 1450 [400-1550]

Running Current

  • Cooling [Rated - Max.]

    • A
      • 6.1~11
  • Heating [Rated - Max.]

    • A
      • 6.6~11

Power Supply

  • V / Φ / Hz

    • 230V / 1Φ / 50Hz

Indoor Unit

  • Air Volume Flow Rate

    • H/M/L (CMH)
      • 1200/1100/1000
  • Sound Pressure Level*

    • H/M/L (dB(A))
      • 43/42/40
  • Dimension

    • Indoor (L x B x H) (cm)
      • 84.5 x 84.5 x 24.5
    • Panel (L x B x H) (cm)
      • 95.0 x 95.0 x 42
  • Net Weight Indoor

    • kg
      • 24.0
  • Net Weight Panel

    • kg
      • 5.5

Outdoor Unit

  • Compressor Type

    • Twin Rotary
  • Sound Pressure Level

    • High (dB(A))
      • 54
  • Dimension

    • L x B x H (cm)
      • 82.4 x 29.9 x 61.9
  • Net Weight Outdoor

    • kg
      • 30.5
  • Piping Connections

    • Gas (Flare) (cm)
      • Φ1.27
    • Liquid (Flare) (cm)
      • Φ0.635
    • Drain (cm)
      • 3.2
  • Maximum Elevation Drain Pipe

    • m
      • 0.66
  • Maximum Refrigerant Pipe Length

    • m
      • 25
  • Maximum Elevation Difference

    • m
      • 15
  • Maximum Chargeless Length

    • m
      • 5
  • Refrigerant Type

    • R-32
  • Refrigerant Charged Qty.

    • g
      • 1100
  • Interconnecting Cable

    • From ODU to IDU (Sq.mm)
      • 4C X 1.5
  • Power Cable

    • To IDU (Sq.mm)
      • NA
    • To ODU (Sq.mm)
      • 3C X 2.5
  • RS485 Cable

    • From ODU to IDU (Sq.mm)
      • NA
  • Ambient Temperature Operating Range

    • °C
      • up to -6°C (Heating)
        up to 52°C (Cooling)
  • Standard Controller (Remote)

    • LCD Wireless Type
