S-36PUY7H5YD

HOT & COLD INVERTER CASSETTE AC

Specs

Photo of S-36PUY7H5YD

Simplistic Design

LCD Wireless Remote Controller

Operation Range up to 52°C

Model

  • Indoor Unit

    • S-36PUY7H5YD
  • Outdoor Unit

    • U-36PZY7H5Y
  • Panel

    • CZ-KPUB7HY

Tonnage Class

  • TR

    • 3.0

Capacity

  • Cooling Standard [Min. - Max.]

    • Btu/h
      • 36169 [17060-37532]
    • W
      • 10600 [5000-11000]
  • Heating Standard [Min. - Max.]

    • Btu/h
      • 36169 [17060-37532]
    • W
      • 10600 [5000-11000]

ISEER

  • 3.95

Star Rating

    • 4★

Power Input

  • Cooling Standard [Min. - Max.]

    • W
      • 3240 [1200-3600]
  • Heating Standard [Min. - Max.]

    • W
      • 3000 [1000-3200]

Running Current

  • Cooling [Rated - Max.]

    • A
      • 14.2~21
  • Heating [Rated - Max.]

    • A
      • 13.2~19

Power Supply

  • V / Φ / Hz

    • 230V / 1Φ / 50Hz

Indoor Unit

  • Air Volume Flow Rate

    • H/M/L (CMH)
      • 2050/2000/1900
  • Sound Pressure Level*

    • H/M/L (dB(A))
      • 52/50/49
  • Dimension

    • Indoor (L x B x H) (cm)
      • 84.5 x 84.5 x 29.0
    • Panel (L x B x H) (cm)
      • 95.0 x 95.0 x 42
  • Net Weight Indoor

    • kg
      • 26.5
  • Net Weight Panel

    • kg
      • 5.5

Outdoor Unit

  • Compressor Type

    • Twin Rotary
  • Sound Pressure Level

    • High (dB(A))
      • 60
  • Dimension

    • L x B x H (cm)
      • 87.5 x 32 x 75
  • Net Weight Outdoor

    • kg
      • 48
  • Piping Connections

    • Gas (Flare) (cm)
      • Φ1.588
    • Liquid (Flare) (cm)
      • Φ0.952
    • Drain (cm)
      • 3.2
  • Maximum Elevation Drain Pipe

    • m
      • 0.66
  • Maximum Refrigerant Pipe Length

    • m
      • 30
  • Maximum Elevation Difference

    • m
      • 20
  • Maximum Chargeless Length

    • m
      • 5
  • Refrigerant Type

    • R-32
  • Refrigerant Charged Qty.

    • g
      • 1650
  • Interconnecting Cable

    • From ODU to IDU (Sq.mm)
      • 4C X 1.5
  • Power Cable

    • To IDU (Sq.mm)
      • NA
    • To ODU (Sq.mm)
      • 3C X 4
  • RS485 Cable

    • From ODU to IDU (Sq.mm)
      • NA
  • Ambient Temperature Operating Range

    • °C
      • up to -6°C (Heating)
        up to 52°C (Cooling)
  • Standard Controller (Remote)

    • LCD Wireless Type

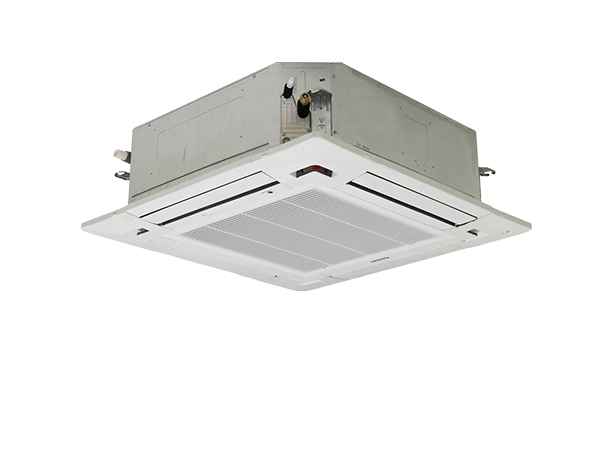

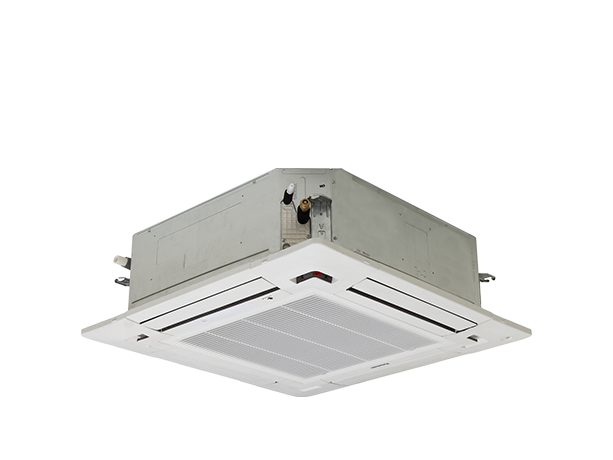

Different Size Products
