S-24PUY7H5YD
HOT & COLD INVERTER CASSETTE AC
Specs
Simplistic Design
LCD Wireless Remote Controller
Operation Range up to 52°C
Model
-
Indoor Unit
-
S-24PUY7H5YD
-
-
Outdoor Unit
-
U-24PZY7H5Y
-
-
Panel
-
CZ-KPUB7HY
-
Tonnage Class
-
TR
-
2.0
-
Capacity
-
Cooling Standard [Min. - Max.]
-
Btu/h
-
22179 [10236-23884]
-
-
W
-
6500 [3000-7000]
-
-
-
Heating Standard [Min. - Max.]
-
Btu/h
-
22179 [10236-23884]
-
-
W
-
6500 [3000-7000]
-
-
ISEER
-
4.65
Star Rating
-
★
-
4★
-
Power Input
-
Cooling Standard [Min. - Max.]
-
W
-
1800 [600-2050]
-
-
-
Heating Standard [Min. - Max.]
-
W
-
1550 [500-1750]
-
-
Running Current
-
Cooling [Rated - Max.]
-
A
-
8.1~13
-
-
-
Heating [Rated - Max.]
-
A
-
6.8~12.5
-
-
Power Supply
-
V / Φ / Hz
-
230V / 1Φ / 50Hz
-

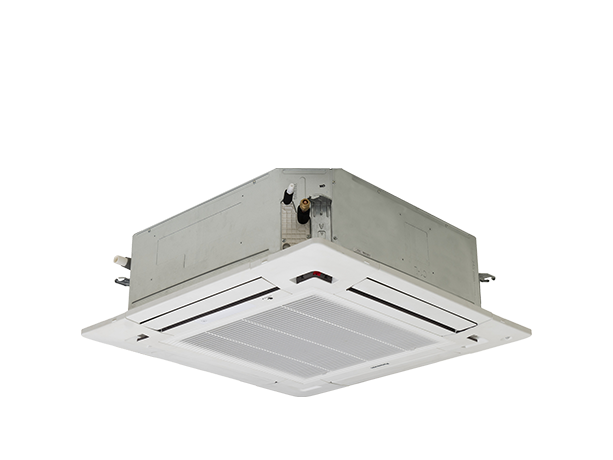

Indoor Unit
-
Air Volume Flow Rate
-
H/M/L (CMH)
-
1350/1200/1100
-
-
-
Sound Pressure Level*
-
H/M/L (dB(A))
-
45/43/41
-
-
-
Dimension
-
Indoor (L x B x H) (cm)
-
84.5 x 84.5 x 24.5
-
-
Panel (L x B x H) (cm)
-
95.0 x 95.0 x 42
-
-
-
Net Weight Indoor
-
kg
-
25.0
-
-
-
Net Weight Panel
-
kg
-
5.5
-
-

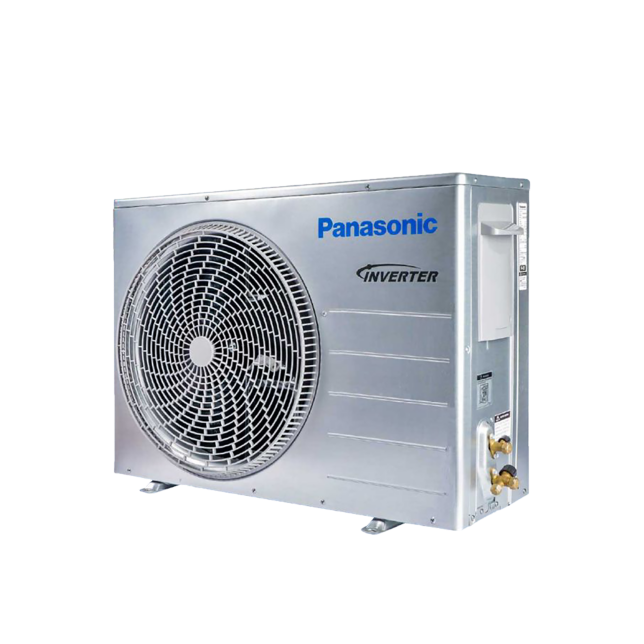

Outdoor Unit
-
Compressor Type
-
Twin Rotary
-
-
Sound Pressure Level
-
High (dB(A))
-
57
-
-
-
Dimension
-
L x B x H (cm)
-
82.4 x 29.9 x 61.9
-
-
-
Net Weight Outdoor
-
kg
-
34.5
-
-
-
Piping Connections
-
Gas (Flare) (cm)
-
Φ1.588
-
-
Liquid (Flare) (cm)
-
Φ0.635
-
-
Drain (cm)
-
3.2
-
-
-
Maximum Elevation Drain Pipe
-
m
-
0.66
-
-
-
Maximum Refrigerant Pipe Length
-
m
-
30
-
-
-
Maximum Elevation Difference
-
m
-
15
-
-
-
Maximum Chargeless Length
-
m
-
5
-
-
-
Refrigerant Type
-
R-32
-
-
Refrigerant Charged Qty.
-
g
-
1250
-
-
-
Interconnecting Cable
-
From ODU to IDU (Sq.mm)
-
4C X 1.5
-
-
-
Power Cable
-
To IDU (Sq.mm)
-
NA
-
-
To ODU (Sq.mm)
-
3C X 2.5
-
-
-
RS485 Cable
-
From ODU to IDU (Sq.mm)
-
NA
-
-
-
Ambient Temperature Operating Range
-
°C
-
up to -6°C (Heating)
up to 52°C (Cooling)
-
-
-
Standard Controller (Remote)
-
LCD Wireless Type
-
