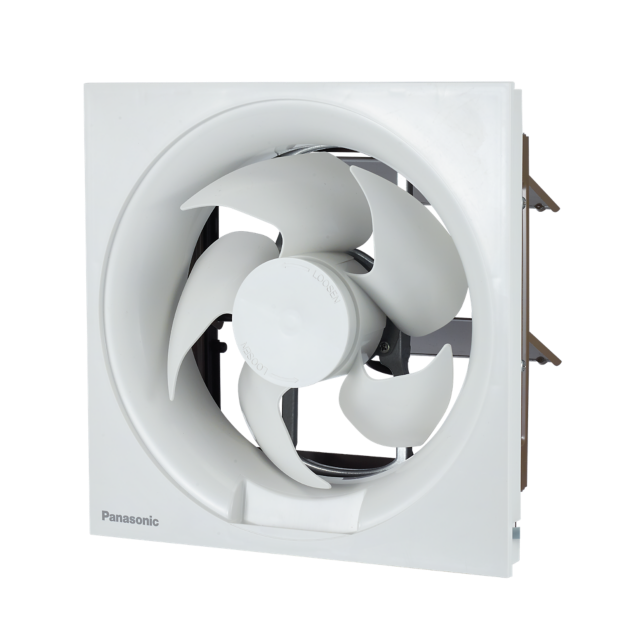

Automatic Shutter Series
Easy to Install, Wall Mounted Exhaust Fan
Offers superior performance with smart design and advanced technology. The sleek, flat design creates a floating effect, seamlessly integrating with interiors. The fan operates quietly, providing enhanced airflow and reliable safety features for long-lasting, efficient operation.
Features
Smart Design
The new flat design creates a floating effect when installed on the wall. These minimalist elements integrate seamlessly with the interior space.
Half Pitch Motor & Bearing
All motors are equipped with thermal fuses that shut off automatically when overheated. This feature prevents further temperature increases and minimizes the risk of hazards.
Silent Stream Fan
The new blade design applies advanced aerodynamic principles to optimize the blade shape. This design reduces noise while increasing airflow efficiency.
Highly Secure Fuse
A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Product Variations
FV-20AU1 / FV-25AU1 / FV-30AU1
• Flat surface design
• Silent stream fan
• Half Pitch condenser motor with thermal cut-off
• Well lubricated ball bearing for long life operation
• Automatic Shutter
• Silent stream fan
• Half Pitch condenser motor with thermal cut-off
• Well lubricated ball bearing for long life operation
• Automatic Shutter
FV-15AST1
• Condenser motor with thermo cut-off
• Lubricated sintered bush for long-life operation
• High performance propeller fan adopted
• Automatic shutter with plastic cushions
• Orifice equipped with oil cup
• Lubricated sintered bush for long-life operation
• High performance propeller fan adopted
• Automatic shutter with plastic cushions
• Orifice equipped with oil cup
Specs
Smart Design
Half Pitch Motor & Bearing
Silent Stream Fan
Highly Secure Fuse
FV-15AST1
-
220/50hz
-
Air Volume
-
288 m³/h
170 CFM
-
-
Consumption [W]
-
15
-
-
RPM [min⁻¹]
-
1,480
-
-
Noise [dB(A)]
-
31
-
-
-
220/60hz
-
Air Volume
-
306 m³/h
180 CFM
-
-
Consumption [W]
-
19
-
-
RPM [min⁻¹]
-
1,560
-
-
Noise [dB(A)]
-
34
-
-
-
230/50hz
-
Air Volume
-
294 m³/h
173 CFM
-
-
Consumption [W]
-
17
-
-
RPM [min⁻¹]
-
1,512
-
-
Noise [dB(A)]
-
33
-
-
-
240/50hz
-
Air Volume
-
306 m³/h
180 CFM
-
-
Consumption [W]
-
19
-
-
RPM [min⁻¹]
-
1,560
-
-
Noise [dB(A)]
-
33
-
-
-
Weight [kg]
-
1.4
-
-
Installation Space [mm]
-
175 x 175
-
FV-20AU9T
-
220/50hz
-
Air Volume
-
580 m³/h
341CFM
-
-
Consumption [W]
-
20
-
-
RPM [min⁻¹]
-
1,250
-
-
Noise [dB(A)]
-
37.5
-
-
-
220/60hz
-
Air Volume
-
650 m³/h
383CFM
-
-
Consumption [W]
-
24
-
-
RPM [min⁻¹]
-
1,400
-
-
Noise [dB(A)]
-
41.5
-
-
-
230/50hz
-
Air Volume
-
610 m³/h
359 CFM
-
-
Consumption [W]
-
21
-
-
RPM [min⁻¹]
-
1,270
-
-
Noise [dB(A)]
-
38
-
-
-
240/50hz
-
Air Volume
-
620 m³/h
365 CFM
-
-
Consumption [W]
-
23
-
-
RPM [min⁻¹]
-
1,290
-
-
Noise [dB(A)]
-
38
-
-
-
Weight [kg]
-
2.0
-
-
Installation Space [mm]
-
250 x 250
-
FV-25AU9T
-
220/50hz
-
Air Volume
-
920 m³/h
541 CFM
-
-
Consumption [W]
-
27
-
-
RPM [min⁻¹]
-
1,070
-
-
Noise [dB(A)]
-
39
-
-
-
220/60hz
-
Air Volume
-
940 m³/h
553 CFM
-
-
Consumption [W]
-
31
-
-
RPM [min⁻¹]
-
1,125
-
-
Noise [dB(A)]
-
39
-
-
-
230/50hz
-
Air Volume
-
940 m³/h
553 CFM
-
-
Consumption [W]
-
29
-
-
RPM [min⁻¹]
-
1,100
-
-
Noise [dB(A)]
-
42
-
-
-
240/50hz
-
Air Volume
-
960 m³/h
565 CFM
-
-
Consumption [W]
-
32
-
-
RPM [min⁻¹]
-
1,170
-
-
Noise [dB(A)]
-
42
-
-
-
Weight [kg]
-
2.4
-
-
Installation Space [mm]
-
300 x 300
-
FV-30AU9T
-
220/50hz
-
Air Volume
-
1,200 m³/h
706 CFM
-
-
Consumption [W]
-
31
-
-
RPM [min⁻¹]
-
1,000
-
-
Noise [dB(A)]
-
39
-
-
-
220/60hz
-
Air Volume
-
1,140 m³/h
671 CFM
-
-
Consumption [W]
-
38
-
-
RPM [min⁻¹]
-
1,000
-
-
Noise [dB(A)]
-
38
-
-
-
230/50hz
-
Air Volume
-
1,206 m³/h
710 CFM
-
-
Consumption [W]
-
35
-
-
RPM [min⁻¹]
-
980
-
-
Noise [dB(A)]
-
40
-
-
-
240/50hz
-
Air Volume
-
1,250 m³/h
736 CFM
-
-
Consumption [W]
-
39
-
-
RPM [min⁻¹]
-
1,010
-
-
Noise [dB(A)]
-
42
-
-
-
Weight [kg]
-
2.7
-
-
Installation Space [mm]
-
350 x 350
-
Note
-
For info on test conditions, please refer to the technical sheet.
