Bathroom Series

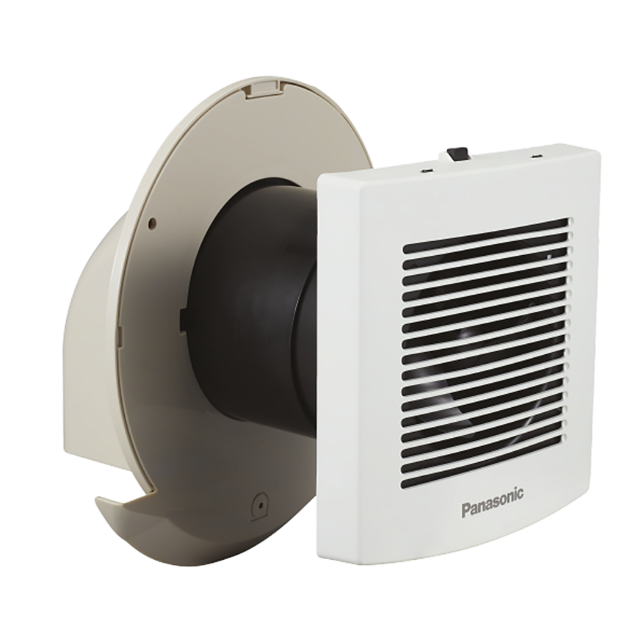

Easy to Install, Wall Mounted Exhaust Fan
Effortless installation with all accessories included. The innovative design protects against wind and water ingress, prevents wall stains during rain, and integrates seamlessly with interiors, delivering functionality and elegance in one sleek solution.
Features
Easy Installation
The exhauster is well-designed to facilitate the installation process. With the supplied accessories, only a few steps are required to complete the fan setup.
All Accessories Included
The product comes bundled with all the required accessories, conveniently eliminating the hassle of searching for them separately.
Back Draft Shutter
Outside wind may enter the house through the duct when the fan is not operating. The backdraft shutter covers the duct opening when the fan is not in use, blocking the ingress of wind and water.
Trace-Prevention
When it rains, water flowing along the pipe hood may leave trace marks on the wall. The exclusively designed duct ring redirects the water flow to prevent traces from forming on the wall.
Additionally, the water-cut plate on the duct ring channels the water away from the wall, effectively avoiding the formation of trace marks.
Additionally, the water-cut plate on the duct ring channels the water away from the wall, effectively avoiding the formation of trace marks.
Product Variations
FV-10EGK2 / FV-15EGK2
• Pipe Hood Series
• Compact and stylish design
• HP motor with well lubricated ball bearing for long life operation
• Easy installation
• Water resistance: IPX4 (outside)
• Motor insulation class: E
• Compact and stylish design
• HP motor with well lubricated ball bearing for long life operation
• Easy installation
• Water resistance: IPX4 (outside)
• Motor insulation class: E
FV-10EGS2 / FV-15EGS2
• Shutter Series (for Vertical Shaft)
• Compact and stylish design
• HP motor with well lubricated ball bearing for long life operation
• Easy installation
• Water resistance: IPX4 (outside)
• Motor insulation class: E
• Compact and stylish design
• HP motor with well lubricated ball bearing for long life operation
• Easy installation
• Water resistance: IPX4 (outside)
• Motor insulation class: E
Specs
Easy Installation
Back Draft Shutter
Trace-Prevention
FV-10EGK1
-
220/50hz
-
Air Volume
-
75 m³/h
44 CFM
-
-
Consumption [W]
-
5.5
-
-
RPM [min⁻¹]
-
2,706
-
-
Noise [dB(A)]
-
33
-
-
-
220/60hz
-
Air Volume
-
80 m³/h
47 CFM
-
-
Consumption [W]
-
4.4
-
-
RPM [min⁻¹]
-
2,888
-
-
Noise [dB(A)]
-
34
-
-
-
230/50hz
-
Air Volume
-
76 m³/h
45 CFM
-
-
Consumption [W]
-
5.9
-
-
RPM [min⁻¹]
-
2,720
-
-
Noise [dB(A)]
-
33
-
-
-
240/50hz
-
Air Volume
-
76 m³/h
45 CFM
-
-
Consumption [W]
-
6.4
-
-
RPM [min⁻¹]
-
2,732
-
-
Noise [dB(A)]
-
33
-
-
-
Weight [kg]
-
1.2
-
-
Installation Space [mm]
-
Ø135+5
Ø135-5
-
-
Wall Thickness [mm]
-
100-150
-
FV-15EGK1
-
220/50hz
-
Air Volume
-
160 m³/h
94 CFM
-
-
Consumption [W]
-
6.2
-
-
RPM [min⁻¹]
-
2,329
-
-
Noise [dB(A)]
-
34
-
-
-
220/60hz
-
Air Volume
-
180 m³/h
106 CFM
-
-
Consumption [W]
-
8.5
-
-
RPM [min⁻¹]
-
2,647
-
-
Noise [dB(A)]
-
38
-
-
-
230/50hz
-
Air Volume
-
163 m³/h
96 CFM
-
-
Consumption [W]
-
6.6
-
-
RPM [min⁻¹]
-
2,369
-
-
Noise [dB(A)]
-
35
-
-
-
240/50hz
-
Air Volume
-
163 m³/h
96 CFM
-
-
Consumption [W]
-
6.9
-
-
RPM [min⁻¹]
-
2,405
-
-
Noise [dB(A)]
-
35
-
-
-
Weight [kg]
-
1.5
-
-
Installation Space [mm]
-
Ø180+5
Ø180-5
-
-
Wall Thickness [mm]
-
100-150
-
FV-10EGS1
-
220/50hz
-
Air Volume
-
75 m³/h
44 CFM
-
-
Consumption [W]
-
5.5
-
-
RPM [min⁻¹]
-
2,706
-
-
Noise [dB(A)]
-
35
-
-
-
220/60hz
-
Air Volume
-
80 m³/h
47 CFM
-
-
Consumption [W]
-
4.4
-
-
RPM [min⁻¹]
-
2,888
-
-
Noise [dB(A)]
-
36
-
-
-
230/50hz
-
Air Volume
-
75 m³/h
44 CFM
-
-
Consumption [W]
-
5.9
-
-
RPM [min⁻¹]
-
2,720
-
-
Noise [dB(A)]
-
35
-
-
-
240/50hz
-
Air Volume
-
75 m³/h
44 CFM
-
-
Consumption [W]
-
6.4
-
-
RPM [min⁻¹]
-
2,732
-
-
Noise [dB(A)]
-
35
-
-
-
Weight [kg]
-
0.9
-
-
Installation Space [mm]
-
Ø120-Ø125
-
FV-15EGS1
-
220/50hz
-
Air Volume
-
150 m³/h
88 CFM
-
-
Consumption [W]
-
6.2
-
-
RPM [min⁻¹]
-
2,329
-
-
Noise [dB(A)]
-
36
-
-
-
220/60hz
-
Air Volume
-
175 m³/h
103 CFM
-
-
Consumption [W]
-
8.5
-
-
RPM [min⁻¹]
-
2,647
-
-
Noise [dB(A)]
-
40
-
-
-
230/50hz
-
Air Volume
-
155 m³/h
91 CFM
-
-
Consumption [W]
-
6.6
-
-
RPM [min⁻¹]
-
2,369
-
-
Noise [dB(A)]
-
37
-
-
-
240/50hz
-
Air Volume
-
155 m³/h
91 CFM
-
-
Consumption [W]
-
6.9
-
-
RPM [min⁻¹]
-
2,405
-
-
Noise [dB(A)]
-
37
-
-
-
Weight [kg]
-
1.1
-
-
Installation Space [mm]
-
Ø165-Ø170
-
Note
-
For info on test conditions, please refer to the technical sheet.
