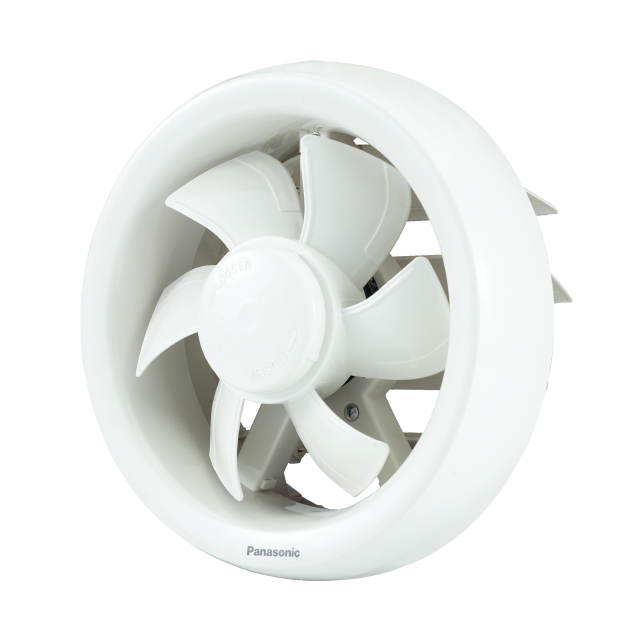

Automatic Shutter Series
Easy Installation on Any Glass Plate
Built with an aerodynamic blade design, this fan ensures smooth, quiet airflow and reduced turbulence. A thermal safety fuse and high-performance motor offer added safety and durability. The automatic shutter and removable blade make cleaning and maintenance quick and hassle-free.
Features

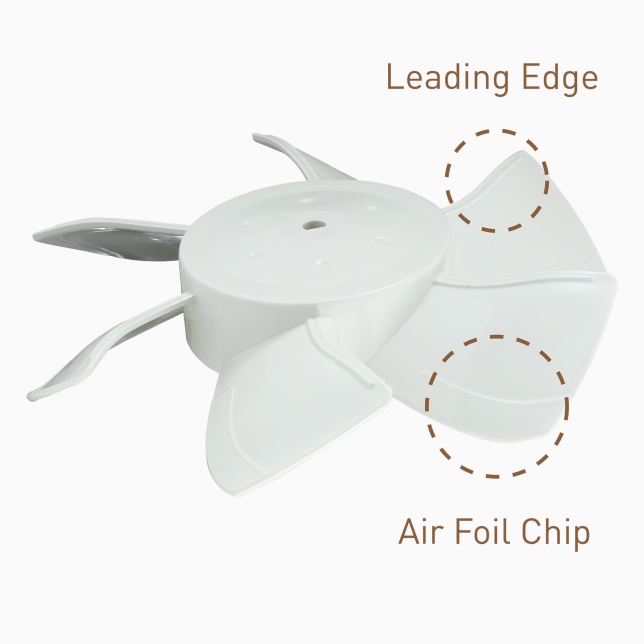

Advanced Blade Design
An advanced blade design applies advanced aerodynamic principles that minimize any airflow impediment. An aerodynamic shape streamlines airflow from every direction. Smooth airflow that minimizes fan noise has been achieved through reduced turbulence at rear edges and improved curvature at front edges.

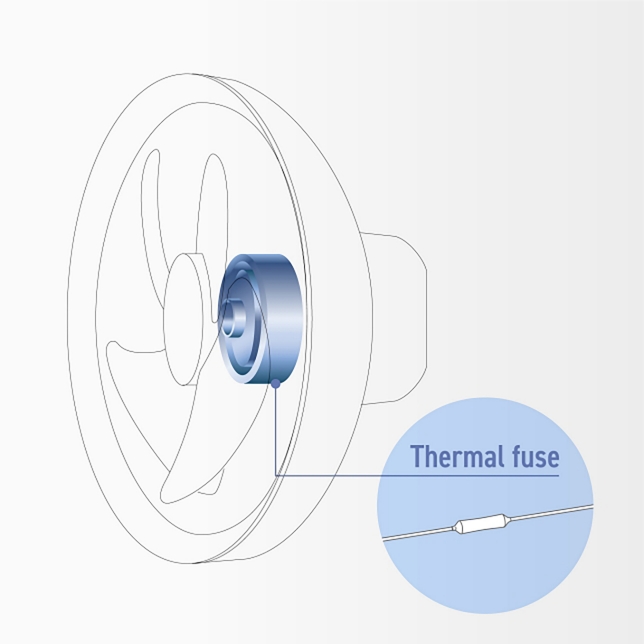

Thermal Cut Off
A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.

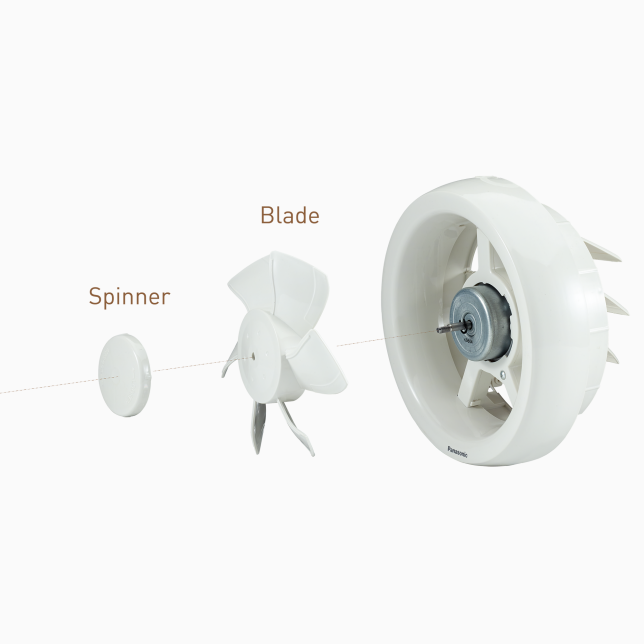

Easy Maintenance
The blade can be detached by simply loosening the spinner, that facilitates the periodical maintenance.
Product Variations

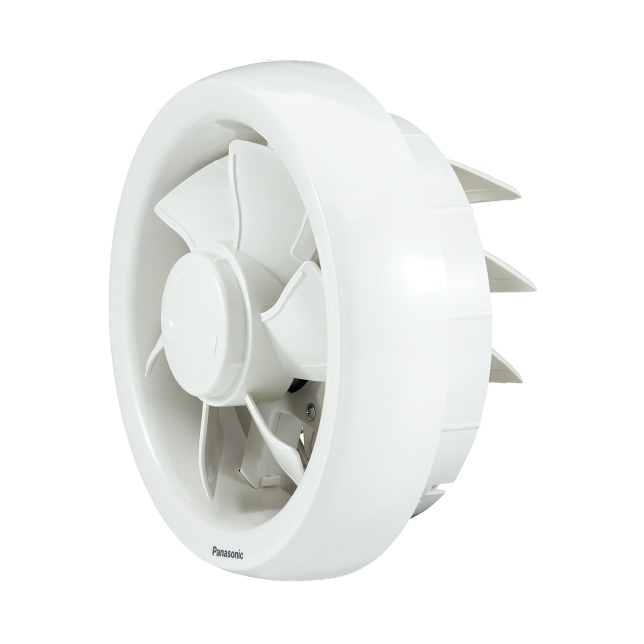

FV-15WA1/FV-20WA1
• Automatic shutter
• High performance condenser motor with thermo cut-of
• Well lubricated bearing for long-life operation
• Propeller fan incorporated with advance blade design
• Removable blade for easy maintenance
• High performance condenser motor with thermo cut-of
• Well lubricated bearing for long-life operation
• Propeller fan incorporated with advance blade design
• Removable blade for easy maintenance
Specs
Single Ppeed
HP (High Pitch) Condenser Motor
Removable Blade
FV-15WA1
-
220/50hz
-
Air Volume
-
210 m³/h
124 CFM
-
-
Consumption [W]
-
14
-
-
RPM [min⁻¹]
-
1,900
-
-
Noise [dB(A)]
-
43
-
-
-
220/60hz
-
Air Volume
-
222 m³/h
131 CFM
-
-
Consumption [W]
-
18
-
-
RPM [min⁻¹]
-
1,950
-
-
Noise [dB(A)]
-
44
-
-
-
230/50hz
-
Air Volume
-
222 m³/h
131 CFM
-
-
Consumption [W]
-
15
-
-
RPM [min⁻¹]
-
1,950
-
-
Noise [dB(A)]
-
44
-
-
-
240/50hz
-
Air Volume
-
228 m³/h
134 CFM
-
-
Consumption [W]
-
16
-
-
RPM [min⁻¹]
-
1,980
-
-
Noise [dB(A)]
-
44
-
-
-
Weight [kg]
-
0.9
-
-
Installation Space [mm]
-
Ø186-Ø188
-
FV-20WA1
-
220/50hz
-
Air Volume
-
380 m³/h
224 CFM
-
-
Consumption [W]
-
15
-
-
RPM [min⁻¹]
-
1,320
-
-
Noise [dB(A)]
-
42
-
-
-
220/60hz
-
Air Volume
-
380 m³/h
224 CFM
-
-
Consumption [W]
-
17
-
-
RPM [min⁻¹]
-
1,365
-
-
Noise [dB(A)]
-
42
-
-
-
230/50hz
-
Air Volume
-
390 m³/h
230 CFM
-
-
Consumption [W]
-
16
-
-
RPM [min⁻¹]
-
1,335
-
-
Noise [dB(A)]
-
43
-
-
-
240/50hz
-
Air Volume
-
402 m³/h
237 CFM
-
-
Consumption [W]
-
17.5
-
-
RPM [min⁻¹]
-
1,345
-
-
Noise [dB(A)]
-
43
-
-
-
Weight [kg]
-
1.4
-
-
Installation Space [mm]
-
Ø247-Ø250
-
Note
-
For info on test conditions, please refer to the technical sheet.
