Electric Shutter Series
Maintain Air-Tightness When the Fan is Turned Off
Delivers smooth, quiet airflow while ensuring safety with a thermal fuse. Its weather-resistant hood and bent-end shutter prevent rain and wind ingress. The easy-mount bracket fits glass plates from 3mm to 25mm, including insulated glass—no gaskets or silicone needed.
Features

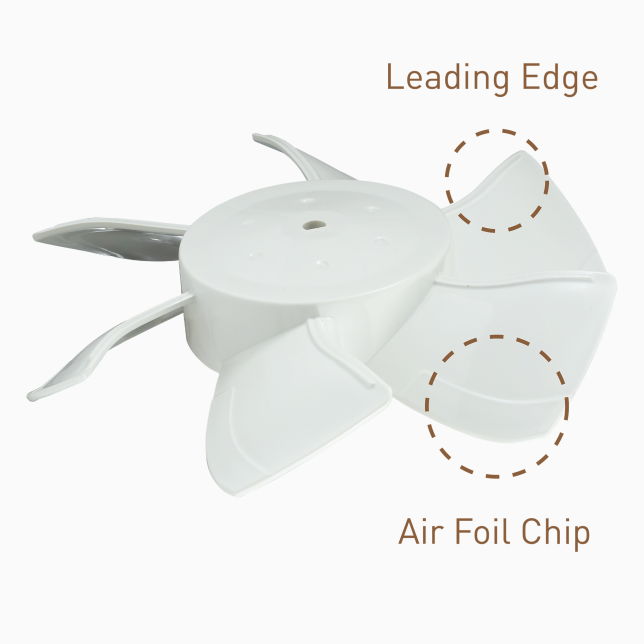

Advanced Blade Design
An advanced blade design applies advanced aerodynamic principles that minimize any airflow impediment. An aerodynamic shape streamlines airflow from every direction. Smooth airflow that minimizes fan noise has been achieved through reduced turbulence at rear edges and improved curvature at front edges.

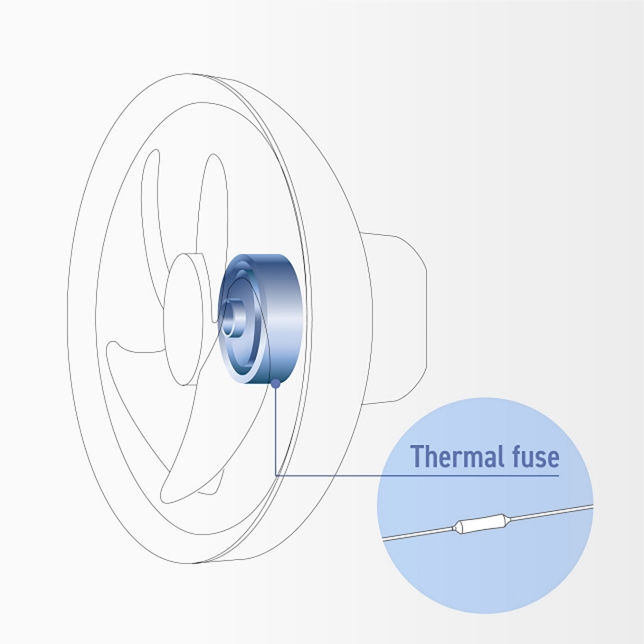

Thermal Cut Off
A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Rain Proof & Wind Resistant

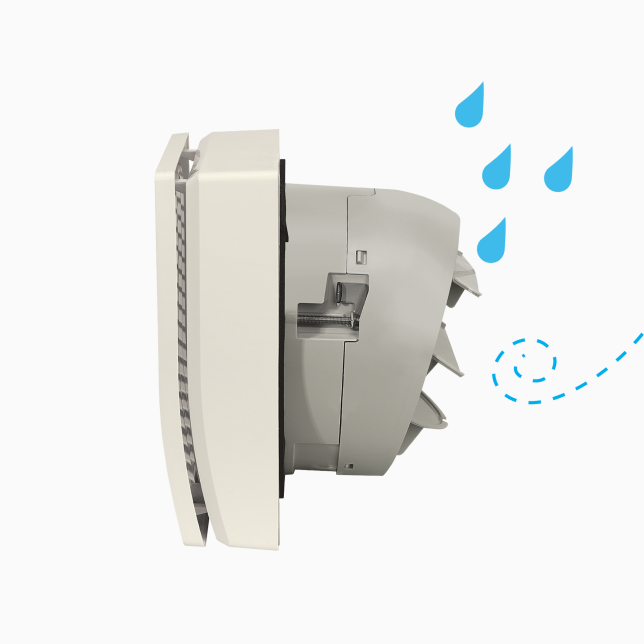

The specially designed hood prevents rainwater from entering during operation. The bent-end shutter structure also helps block water backflow.

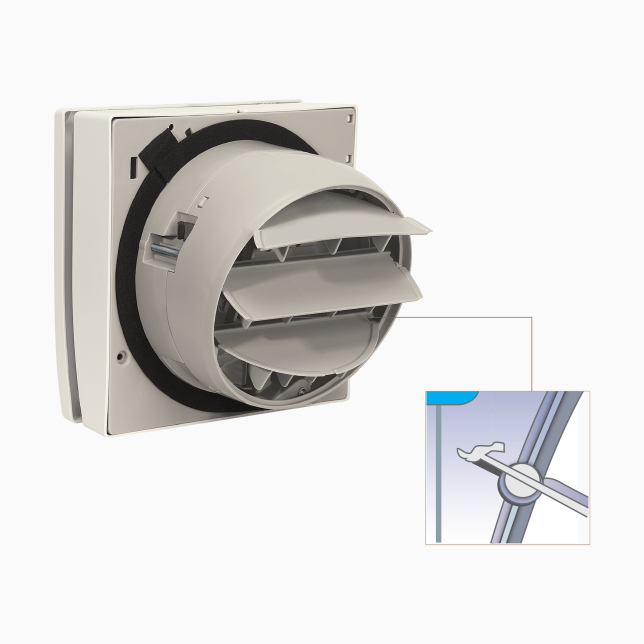

The high static pressure blade minimizes the effect of wind entering the unit during operation. The shutter design further prevents air backflow, maintaining reliable performance in windy conditions.

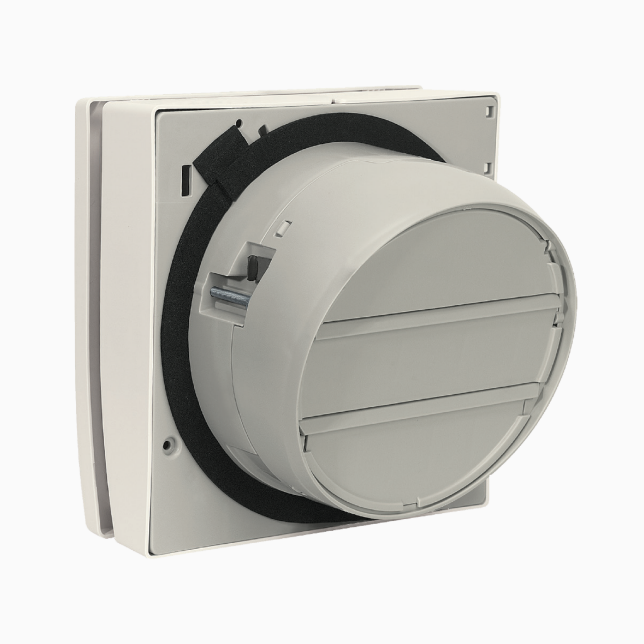

Easy Installation
Designed for quick setup, the fan can be directly mounted on a glass plate using the unique bracket—no need to detach the orifice. The included packing fits tightly, eliminating the need for gaskets or silicone seals and preventing indoor water leakage.

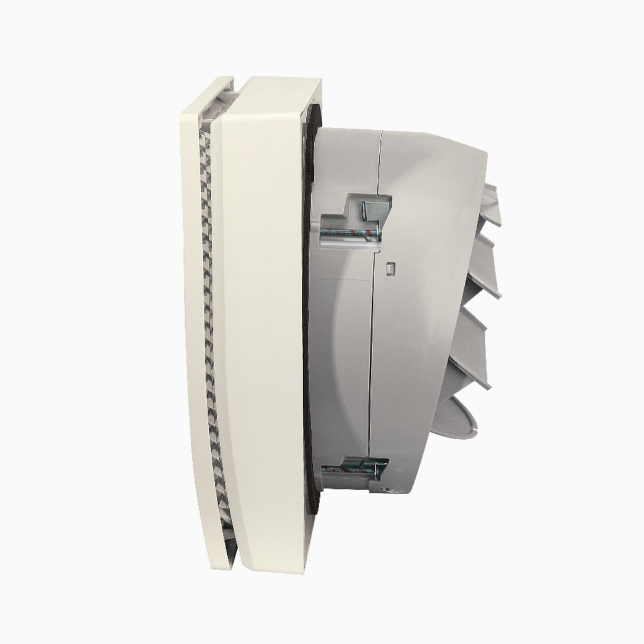

High Adaptability
The new mounting design supports easy installation on glass plates from 3mm to 25mm thick, including insulated glass. This makes it ideal for modern buildings where thermal insulation is essential.
Product Variations

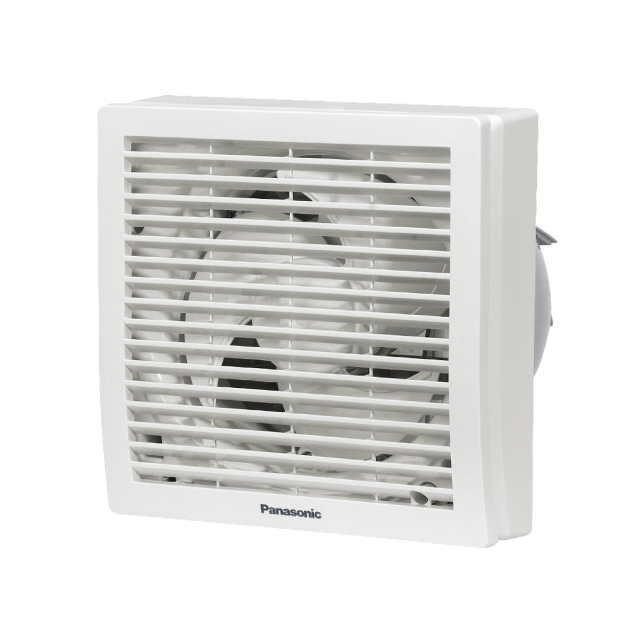

FV-15WH3T / FV-20WH3T
• Condenser motor with thermo cut-off
• Lubricated sintered bush for long-life operation
• High performance propeller fan adopted
• Electrically operated shutter
• Front louver attached
• Lubricated sintered bush for long-life operation
• High performance propeller fan adopted
• Electrically operated shutter
• Front louver attached
Specs
High Pressure Exhaust Type
Rain Proof and Wind Resistant
Single Speed
FV-15WH3T
-
220/50hz
-
Air Volume
-
230 m³/h
135 CFM
-
-
Consumption [W]
-
13
-
-
RPM [min⁻¹]
-
2,290
-
-
Noise [dB(A)]
-
43
-
-
-
220/60hz
-
Air Volume
-
230 m³/h
135 CFM
-
-
Consumption [W]
-
13
-
-
RPM [min⁻¹]
-
2,375
-
-
Noise [dB(A)]
-
44
-
-
-
230/50hz
-
Air Volume
-
230 m³/h
135 CFM
-
-
Consumption [W]
-
14
-
-
RPM [min⁻¹]
-
2,305
-
-
Noise [dB(A)]
-
43
-
-
-
240/50hz
-
Air Volume
-
230 m³/h
135 CFM
-
-
Consumption [W]
-
15
-
-
RPM [min⁻¹]
-
2,315
-
-
Noise [dB(A)]
-
43
-
-
-
Weight [kg]
-
1.4
-
-
Installation Space [mm]
-
Ø186-Ø188
-
FV-20WH3T
-
220/50hz
-
Air Volume
-
445 m³/h
262 CFM
-
-
Consumption [W]
-
20
-
-
RPM [min⁻¹]
-
1,370
-
-
Noise [dB(A)]
-
42
-
-
-
220/60hz
-
Air Volume
-
480 m³/h
283 CFM
-
-
Consumption [W]
-
22
-
-
RPM [min⁻¹]
-
1,470
-
-
Noise [dB(A)]
-
45
-
-
-
230/50hz
-
Air Volume
-
445 m³/h
262 CFM
-
-
Consumption [W]
-
21
-
-
RPM [min⁻¹]
-
1,375
-
-
Noise [dB(A)]
-
42
-
-
-
240/50hz
-
Air Volume
-
445 m³/h
262 CFM
-
-
Consumption [W]
-
22
-
-
RPM [min⁻¹]
-
1,380
-
-
Noise [dB(A)]
-
42
-
-
-
Weight [kg]
-
2.6
-
-
Installation Space [mm]
-
Ø247-Ø250
-
Note
-
For info on test conditions, please refer to the technical sheet.
