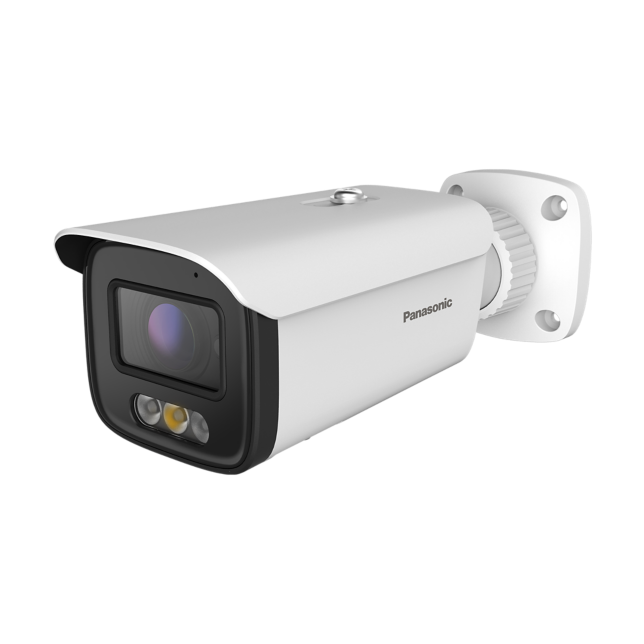

PM-VB4ULVC-W
4MP Varifocal Bullet Colour IP Camera 4.3x Motorized zoom
Features
Key Features
• 4MP Varifocal bullet full colour Network camera
• 4.3x Optical Zoom
• 120dB Wide Dynamic Range
• Color Night Vision: Color: 0.005 lux @F1.6, AGC ON
• 30~50m IR night view distance; 30~40m white light view distance
• IP67 protection from dust and water
• Advanced encryption and access control
• NDAA
4MP Resolution
IP67 Weatherproof
True WDR Technology
Superior Night Vision
Mobile App Access
Specs
4MP Varifocal bullet full colour Network camera
4.3x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: Color: 0.005 lux @F1.6, AGC ON
30~50m IR night view distance
30~40m white light view distance
CAMERA
-
Type
-
4MP Varifocal Bullet Full Colour Network Camera
-
-
Image Sensor
-
1/3"CMOS
-
-
Max Resolution
-
4MP (2560×1440)
-
-
Electronic Shutter
-
1/1s ~ 1/100000s
-
-
Min. Illumination
-
Color: 0.005 lux @F1.6, AGC ON
-
-
IR Distance / Light Range
-
30~50m IR night view distance
30~40m white light view distance
-
Lens
-
Focal length
-
2.8~12mm@F1.4
-
-
Focus
-
Motorized
-
-
Iris Type
-
Fixed Iris
-
-
Optical zoom
-
4.3x (Motorized zoom )
-
-
Lens Mount
-
Ø 14
-
-
Angular Field of View
-
H.FoV: 92°~31°
V.FoV: 48°~17.2°
D.FoV: 112°~ 35.6°
-
-
Day & Night
-
ICR
-
-
Video Compression
-
Mainstream: H.265+/H.265/H.264+/H.264
Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
-
-
Supported Resolution
-
4MP (2560×1440)
3M (2304×1296)
1080P (1920×1080)
720P (1280×720)
D1(704×480)
VGA(640×480)
480×240
CIF(352×288)
-
-
Number of Supported Stream
-
3
-
-
Mainstream
-
60Hz: 4MP/3MP/1080P/720P (1~30fps)
50Hz: 4MP/3MP/1080P/720P (1~25fps)
-
-
Sub Stream
-
1080P (1~12fps)
60Hz: 720P/D1/640x480/CIF (1~30fps)
50Hz: 720P/D1/640x480/CIF (1~25fps)
-
-
Third Stream
-
60Hz: D1/480×240/CIF (1~30fps)
50Hz: D1/480×240/CIF (1~25fps)
-
-
Bit Rate
-
64Kbps~6Mbps
-
-
Bit Rate Type
-
VBR/CBR
-
-
Image Settings
-
ROI
Saturation
Brightness
Hue
Contrast
Wide Dynamic
Sharpness
Image Mirror
Image Flip
NR
etc. adjustable through client software or web browser
-
-
Audio Compression
-
G711A/U
-
-
Region Of Interest
-
Each ROI to be configured separately
-
Operational
-
Wide Dynamic Range(WDR)
-
120dB
-
-
Back Light Compensation (BLC)
-
Yes
-
-
High Light Compensation (HLC)
-
Yes
-
-
Defog
-
-
-
-
Digital Noise Reduction (DNR)
-
Yes
-
-
S/N ratio
-
≥50dB
-
-
Angle Adjustment
-
Pan: 0°~360°
Tilt: 0°~90°
Rotation: 0°~360°
-
INTERFACES
-
Network
-
RJ 45 10M/100M self-adaptive Ethernet port
-
-
Video
-
-
-
-
Audio
-
1CH audio input
1CH built-in MIC
-
-
Storage
-
Built-in micro SD card slot, up to 256GB
-
-
Alarm
-
-
-
-
RS485
-
-
-
DORI DISTANCE
-
Lens
-
2.8~12mm(W)
2.8~12mm(T)
-
-
Detect
-
64m(210ft)
189m(619ft)
-
-
Observe
-
26m(84ft)
75m(247ft)
-
-
Recognize
-
13m(42ft)
38m(124ft)
-
-
Identify
-
6m(20ft)
19m(62ft)
-
INTELLIGENT ANALYTICS
-
Statistics
-
-
-
-
Audio Exception Detection
-
-
-
-
Face Detection
-
-
-
-
Video Metadata(Human/Vehicle Attributes / Two Wheelers)
-
-
-
Other Analytics
-
Motion Detection
-
-
-
-
Smart Alarm
-
Motion detection
SMD
SD card full, SD card error
IP address conflict
Cable disconnection
Video exception (scene change, video blur and abnormal color detection)
-
-
Smart Event
-
Line crossing
Region intrusion detection (human/motor vehicle/non-motor vehicle classification)
Abandoned/missing object detection
-
FUNCTIONS
-
Remote Monitoring
-
Web browser
NVR
Panasonic VMS 2.X
Mobile APP
-
-
Web Browser
-
Chrome 89.0+
Edge 89.0+
Firefox 87.0+
Safari 14.0+
-
-
Online Connection
-
Support simultaneous monitoring for up to 6 users
Support multi-stream real time transmission
-
-
Network Protocol
-
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS
SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPS
HTTP POST, P2P, QoS
-
-
Interface Protocol
-
ONVIF Profile S/G/M/T
-
-
Other Functions
-
Watermark
IP Address Filtering
Video Mask
Heartbeat
Smart Supplement Light
Corridor Pattern
ANR
Cloud Upgrade
-
-
Security
-
Video encryption
Firmware encryption
Configuration encryption
Illegal login lock
IP address filtering
802.1x authentication
Basic and digest authentication for HTTP/RTSP
NDAA
-
General
-
Power Supply
-
DC12V/PoE
-
-
PoE
-
Yes, IEEE802.3af
-
-
Power Consumption
-
< 8.5W
-
-
Weather Protection
-
IP67 protection from dust and water
-
-
Operating Environment
-
-30°C~60°C (-22°F~140°F)
Humidity: less than 95% (non-condensing)
-
-
Storage Environment
-
-30°C~65°C (-22°F~149°F)
Humidity: less than 95% (non-condensing)
-
-
Dimensions (mm)
-
218.1×72.9× 73.1
-
-
Weight (net)
-
Approx. 0.684KG
-
-
Installation
-
Ceiling mounting
Wall mounting
-
-
Certificate
-
EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
Safety: EN IEC 62368-1:2020+A11:2020
RoHS: 2011/65/EU
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
