PM-VB5ULVR-W

5MP Varifocal Bullet IP Camera 4.3X Motorized Zoom

Panasonic Cameras are developed to provide high security, ensuring the safety of customers in their homes, shops, and offices. Equipped with advanced intelligence features, these cameras detect line crossings, abandoned or missing objects, and more, enhancing user security and peace of mind. Moreover, the cameras guarantee customer privacy through an advanced encryption algorithm and the Region of Interest (ROI) feature built into the camera.
Add to WishlistRemove from Wishlist
PM-VB5ULVR-W
SHOP NOW

Features

Key Features

• 5MP Varifocal Bullet Network Camera
• 4.3x Optical Zoom
• 120dB Wide Dynamic Range
• Color Night Vision: Color: 0.005 lux @F1.6, AGC ON
• IR range: 30 ~ 50 m
• IP67 Protection from dust and water
• Advanced encryption and access control
• NDAA
Download DatasheetOpen new window
Key Features

5MP Resolution

5MP resolution provides enhanced clarity and fine image detail, making it ideal for mid-to-large-scale surveillance where higher accuracy and recognition are essential.
*Image shown is for illustration purposes only.
5MP Resolution

IP67 Weatherproof

Built to withstand dust and heavy rain, IP67-rated cameras offer reliable outdoor performance in extreme conditions.
IP67 Weatherproof

True WDR Technology

Wide Dynamic Range balances bright and dark areas, delivering clear images even in challenging lighting conditions.
True WDR Technology

Superior Night Vision

Advanced infrared technology enables clear video monitoring even in total darkness, ensuring round-the-clock security.
Superior Night Vision

Mobile App Access

Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Download the App
Mobile App Access

Specs

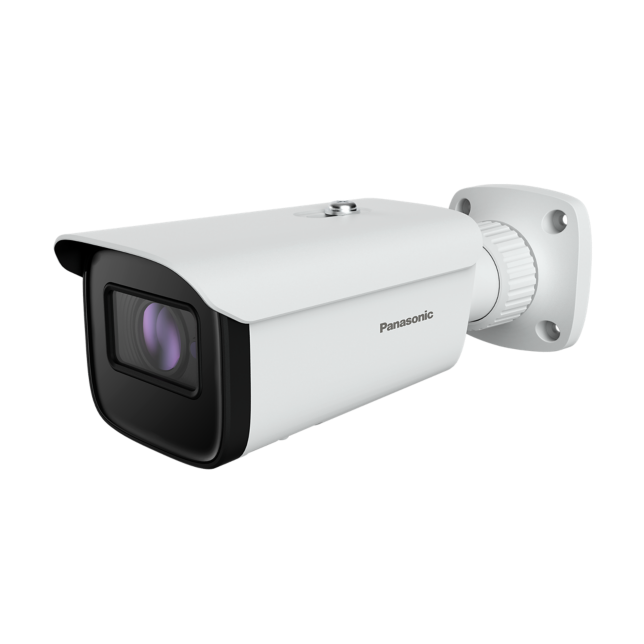

Photo of PM-VB5ULVR-W

5MP Varifocal Bullet Network Camera

4.3x Optical Zoom

120dB Wide Dynamic Range

Color Night Vision: Color: 0.005 lux @F1.6, AGC ON

IR range: 30 ~ 50 m

CAMERA

  • Type

    • 5MP Varifocal Bullet Network Camera

  • Image Sensor

    • 1/2.5"CMOS

  • Max Resolution

    • 2880×1624

  • Electronic Shutter

    • 1/4s ~1/100000 s

  • Min. Illumination

    • Color: 0.005 lux @F1.6, AGC ON

  • IR Distance / Light Range

    • 30 ~ 50 m

Lens

  • Focal length

    • 2.8~12mm@F1.6

  • Focus

    • Motorized

  • Iris Type

    • DC AUTO

  • Optical zoom

    • 4.3x (Motorized zoom )

  • Lens Mount

    • Ø 14

  • Angular Field of View

    • H.FoV: 108°~36°
      V.Fov: 57°~20°
      D.FoV: 129°~42°

  • Day & Night

    • ICR


  • Video Compression

    • Main stream: H.265+/H.265/H.264+/H.264
      Sub/thirdstream:H.265+/H.265/H.264+/H.264/MJPEG

  • Supported Resolution

    • 5MP(2880×1624)
      4MP(2688×1520)
      1080P(1920×1080)
      720P(1280×720)
      D1(704×480)
      VGA(640×480)
      480×240
      CIF(352×288)

  • Number of Supported Stream

    • 3

  • Mainstream

    • 60Hz: 5MP/4MP/1080P (1~30fps)
      50Hz: 5MP/4MP/1080P (1~25fps)

  • Sub Stream

    • 60Hz: 1080P/720P/D1/VGA/CIF/480×240 (1~30fps)
      50Hz: 1080P/720P/D1/VGA/CIF/480×240 (1~25fps)

  • Third Stream

    • 60Hz: D1/480×240/CIF (1~30fps)
      50Hz: D1/480×240/CIF (1~25fps)

  • Bit Rate

    • 64 Kbps ~10 Mbps

  • Bit Rate Type

    • VBR/CBR

  • Image Settings

    • ROI
      Saturation
      Brightness
      Hue
      Contrast
      Wide Dynamic
      Sharpness
      Image Mirror
      Image Flip
      NR
      etc. adjustable through client software or web browser

  • Audio Compression

    • G711A/U

  • Region Of Interest

    • Each ROI to be configured separately

Operational

  • Wide Dynamic Range(WDR)

    • 120dB

  • Back Light Compensation (BLC)

    • Yes

  • High Light Compensation (HLC)

    • Yes

  • Defog

    • Yes

  • Digital Noise Reduction (DNR)

    • Yes

  • S/N ratio

    • ≥50dB

  • Angle Adjustment

    • Pan: 0°~360°
      Tilt: 0°~90°
      Rotation: 0°~360°

INTERFACES

  • Network

    • RJ 45 10M/100M self-adaptive Ethernet port

  • Video

    • -

  • Audio

    • 1CH audio input
      1CH audio output
      1CH built-in microphone

  • Storage

    • Built-in micro SD card slot, up to 256GB

  • Alarm

    • 1CH alarm input
      1CH alarm output

  • RS485

    • -

DORI DISTANCE

  • Lens

    • 2.8~12mm(W)
      2.8~12mm(T)

  • Detect

    • 66m(218ft)
      204m(669ft)

  • Observe

    • 27m(87ft)
      82m(269ft)

  • Recognize

    • 13m(44ft)
      41m(135ft)

  • Identify

    • 7m(23ft)
      20m(66ft)

INTELLIGENT ANALYTICS

  • Statistics

    • Yes, with NVR or SD Card

  • Audio Exception Detection

    • Yes

  • Face Detection

    • Yes

  • Face Recognition and Matching

    • Yes, with NVR

  • Video Metadata(Human/Vehicle Attributes / Two Wheelers)

    • Simultaneously captures human body
      motor vehicle and non-motor vehicle
      extracts 13 human features
      4 motor vehicle features
      1 non-motor vehicle feature

Other Analytics

  • Motion Detection

    • -

  • Smart Alarm

    • Motion detection
      SMD
      SD card full, SD card error
      IP address conflict
      cable disconnection
      video exception (scene change, video blur and abnormal color detection)

  • Smart Event

    • Line crossing
      Region intrusion
      Entrance/exiting (human/vehicle classification)
      Abandoned/missing object detection
      Loitering detection
      Illegal parking detection

FUNCTIONS

  • Remote Monitoring

    • Web browser
      NVR
      Panasonic VMS 2.X
      Mobile APP

  • Web Browser

    • Chrome 89.0+
      Edge 89.0+
      Firefox 87.0+
      Safari 14.0+

  • Online Connection

    • Support simultaneous monitoring for up to 10 users
      Support multi-stream real time transmission

  • Network Protocol

    • UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE
      DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP
      HTTPS, P2P, QoS

  • Interface Protocol

    • ONVIF Profile S/G/M/T

  • Other Functions

    • Watermark
      IP Address Filtering
      Video Mask
      Heartbeat
      Image Distortion Correction
      Corridor Pattern
      ANR
      Cloud Upgrade

  • Security

    • Video encryption
      Firmware encryption
      Configuration encryption
      Illegal login lock
      IP address filtering
      802.1x authentication
      Basic and digest authentication for HTTP/RTSP
      NDAA

General

  • Power Supply

    • DC12V/PoE

  • PoE

    • Yes, IEEE802.3af

  • Power Consumption

    • <10.5W

  • Weather Protection

    • IP67 Protection from dust and water

  • Operating Environment

    • -30°C~60°C (-22°F~140°F)
      Humidity: less than 95% (non-condensing)

  • Storage Environment

    • -30°C~65°C (-22°F~149°F)
      Humidity: less than 95% (non-condensing)

  • Dimensions (mm)

    • 218.1×70.4×80.3

  • Weight (net)

    • Approx. 0.73KG

  • Installation

    • Ceiling mounting
      Wall mounting

  • Certificate

    • EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
      Safety: EN IEC 62368-1:2020+A11:2020
      RoHS: 2011/65/EU

  • Footnote / Disclaimer

    • Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
      Product dimensions and masses are approximate. Specifications are subject to change without notice.
