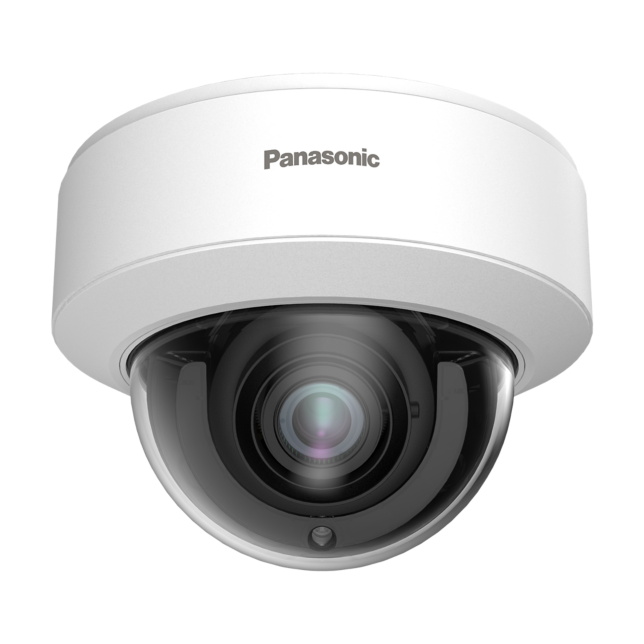

PM-VD4ULVR-W
4MP Varifocal Dome IP Camera 4.3X Motorized Zoom
Features
Key Features
• 4.3x Optical Zoom
• 120dB Wide Dynamic Range
• Color Night Vision: 0.005 lux @F1.6, AGC ON
• IR range: 30~50m
• IP67 protections from dust and water; IK10 protection for Vandal resistance
• Advanced encryption and access control
• NDAA
4MP Resolution
IP67 Weatherproof
True WDR Technology
Superior Night Vision
Mobile App Access
Specs
4MP Varifocal dome network camera
4.3x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: 0.005 lux @F1.6, AGC ON
IR range: 30~50m
CAMERA
-
Type
-
4MP Varifocal Dome Network Camera
-
-
Image Sensor
-
1/3" CMOS
-
-
Max Resolution
-
4MP (2560×1440)
-
-
Electronic Shutter
-
1/1s ~ 1/100000 s
-
-
Min. Illumination
-
0.005 lux @F1.6, AGC ON
-
-
IR Distance / Light Range
-
30~50m
-
Lens
-
Focal Length
-
2.8~12mm@F1.4
-
-
Focus
-
Motorized Varifocal
-
-
Iris Type
-
Fixed Iris
-
-
Optical Zoom
-
4.3x (Motorized zoom )
-
-
Angular Field of View
-
H.FoV: 92°~31°
V.FoV: 48°~17.2°
D.FoV: 112°~ 35.6°
-
-
Day&Night
-
ICR
-
-
Video Compression
-
Mainstream: H.265+/H.265/H.264+/H.264
Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
-
-
Supported Resolution
-
4MP (2560×1440)
3M (2304×1296)
1080P (1920×1080)
720P (1280×720)
D1(704×480)
VGA(640×480)
480×240
CIF(352×288)
-
-
Number of Supported Stream
-
3
-
-
Mainstream
-
60Hz: 4MP/3MP/1080P/720P(1~30fps)
50Hz: 4MP/3MP/1080P/720P(1~25fps)
-
-
Sub Stream
-
1080P (1~12fps)
60Hz: 720P/D1/640x480/CIF (1~30fps)
50Hz: 720P/D1/640x480/CIF (1~25fps)
-
-
Third Stream
-
60Hz: D1/480×240/CIF (1~30fps)
50Hz: D1/480×240/CIF (1~25fps)
-
-
Bit Rate
-
64Kbps~6Mbps
-
-
Bit Rate Type
-
VBR/CBR
-
-
Image Settings
-
ROI
Saturation
Brightness
Hue
Contrast
Wide Dynamic
Sharpness
Image Mirror
Image Flip
NR
etc.adjustable through client software or web browser
-
-
Audio Compression
-
G711A/U
-
-
Region Of Interest
-
Each ROI to be configured separately
-
Operational
-
Wide Dynamic Range
-
120dB
-
-
Back Light Compensation (BLC)
-
Yes
-
-
High Light Compensation (HLC)
-
Yes
-
-
Defog
-
-
-
-
Digital Noise Reduction (DNR)
-
Yes
-
-
S/N ratio
-
≥50dB
-
-
Angle Adjustment
-
Pan: 0°~345°
Tilt: 0°~77°
Rotation: 0°~345°
-
INTERFACES
-
Network
-
RJ 45 10M/100M self-adaptive Ethernet port
-
-
Video
-
-
-
-
Audio
-
1CH audio input
1CH built-in MIC
-
-
Storage
-
Built-in micro SD card slot, up to 256GB
-
-
Alarm
-
-
-
DORI DISTANCE
-
Lens
-
2.8~12mm(W)
2.8~12mm(T)
-
-
Detect
-
64m(210ft)
189m(619ft)
-
-
Observe
-
26m(84ft)
75m(247ft)
-
-
Recognize
-
13m(42ft)
38m(124ft)
-
-
Identify
-
6m(20ft)
19m(62ft)
-
INTELLIGENT ANALYTICS
-
Statistics
-
-
-
-
Audio Exception Detection
-
-
-
-
Face Detection
-
-
-
-
Video Metadata(Human/Vehicle Attributes / Two Wheelers)
-
-
-
Other Analytics
-
Smart Alarm
-
Motion detection
SMD
SD card full, SD card error
IP address conflict
Cable disconnection
Video exception (scene change, video blur and abnormal color detection)
-
-
Smart Event
-
Line Crossing
Region Intrusion Detection (Human/Motor Vehicle/Non-Motor Vehicle Classification)
Abandoned/Missing Object Detection
-
FUNCTIONS
-
Remote Monitoring
-
Web browser
NVR
Panasonic VMS 2.X
Mobile APP
-
-
Web Browser
-
Chrome 89.0+
Edge 89.0+
Firefox 87.0+
Safari 14.0+
-
-
Online Connection
-
Support simultaneous monitoring for up to 6 users
Support multi-stream real time transmission
-
-
Network Protocol
-
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS
SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPS
HTTP POST, P2P, QoS
-
-
Interface Protocol
-
ONVIF Profile S/G/M/T
-
-
Other Function
-
Watermark
IP Address Filtering
Video Mask
Heartbeat
Smart Supplement Light
Corridor Pattern
ANR
Cloud Upgrade
-
-
Security
-
Video encryption
Firmware encryption
HTTPS encryption
Configuration encryption
Illegal login lock
IP address filtering
802.1x authentication
Basic and digest authentication for HTTP/RTSP
NDAA
-
General
-
Power Supply
-
DC12V/PoE
-
-
PoE
-
Yes, IEEE802.3af
-
-
Power Consumption
-
< 7.5W
-
-
Weather Protection
-
IP67 protections from dust and water
IK10 protection for Vandal resistance
-
-
Operating Environment
-
-30°C~60°C (-22°F~140°F)
Humidity: less than 95% (non-condensing)
-
-
Storage Environment
-
-30°C~65°C (-22°F~149°F)
Humidity: less than 95% (non-condensing)
-
-
Dimensions (mm)
-
Ø141x100.2
-
-
Weight (net)
-
Approx. 0.876KG
-
-
Installation
-
Ceiling mounting
Wall mounting
-
-
Certificate
-
EMC: CE/EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
Safety: IEC 62368-1:2020+A11:2020
RoHS: 2011/65/EU
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
