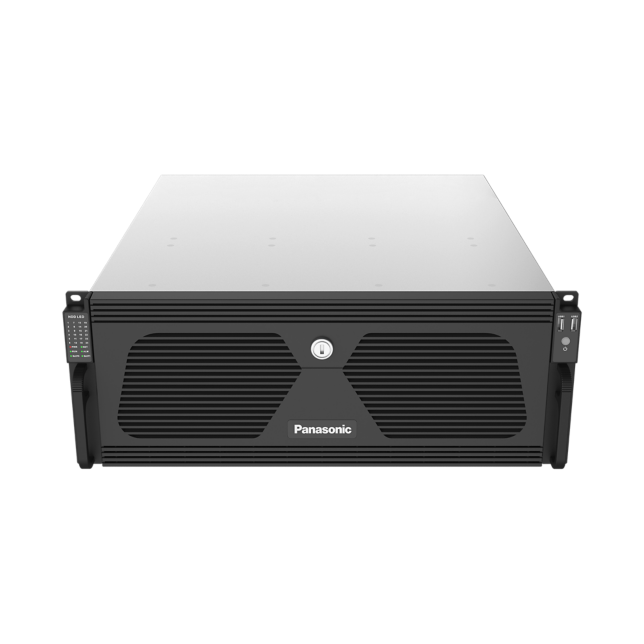

PM-PN128CH
128CH NVR Redundant PS
The Panasonic 128-Channel NVR is a high-performance, enterprise-grade video recording solution engineered for demanding surveillance environments. Supporting up to 128 high-definition IP camera inputs, it handles resolutions from 720p to 16MP, offering a flexible and scalable platform for large-scale deployments. Built on advanced System on Chip (SoC) architecture, the system ensures stable, high-quality recording across all channels with outstanding system reliability and performance. It supports simultaneous playback of up to 16 channels and delivers 8K Ultra HD display output.
Features
Key Features
• 128CH NVR Redundant PS
• Bandwith of Incoming/Outgoing 768Mbps
• Simultaneous playback of 16CH
• Inteligent Analytics
• Bandwith of Incoming/Outgoing 768Mbps
• Simultaneous playback of 16CH
• Inteligent Analytics
Mobile App Access
Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Specs
128CH NVR Redundant PS
Bandwith of Incoming/Outgoing 768Mbps
Simultaneous playback of 16CH
Inteligent Analytics
Network Video Recorder
-
Type
-
128CH NVR Redundant PS
-
-
OS
-
Embedded Linux
-
VIDEO
-
IP Video Input
-
128
-
-
Network Bandwidth
-
Incoming: 768Mbps
Outgoing: 768Mbps
*When the AI function of the Camera is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR.
-
-
Resolution
-
16MP
12MP
8MP
6MP
5MP
4MP
3MP
1080P
1280x1024
960P
720P
960H
D1
CIF
-
-
Output
-
HDMI1:
7680×4320@60
7680×4320@30
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
(When the resolution of HDMI1output is 8K, HDMI2 is unavailable)
HDMI2:
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
HDMI3:
1920×1080
1280×1024
1024×768
HDMI4:
1920×1080
1280×1024
1024×768
VGA×1:
1920×1080
1280×1024
1024×768
(VGA and HDMI1 output the same video source)
-
-
Multi-screen Display
-
Main output: 1/4/6/8/9/13/16/25/32/36/64
AUX output 1: 1/4/6/8/9/13/16/25/32/36
AUX output2: 1/4/6/8/9/13/16
AUX output 3: 1/4/6/8/9/13/16
Max. 132(64+36+16+16)
-
-
Compression
-
H.264
H.265
H.265+
H.265S
-
AUDIO
-
Network input
-
128
-
-
Local Input
-
RCA×1 (for two-way talk)
-
-
Local Output
-
RCA×1
-
-
HDMI Audio Output
-
Support
-
-
Audio Compression
-
G.711(U/A)
-
RECORD
-
Resolution
-
16MP
12MP
8MP
6MP
5MP
4MP
3MP
1080P
1280x1024
960P
720P
960H
D1
CIF
-
-
Frame Rate
-
NTSC: 30fps
PAL: 25fps
-
PLAYBACK
-
Simultaneous Playback
-
16CH
-
-
Search
-
Time Slice
Time
Event
Tag
Smart Search
-
-
Function
-
Play
Pause
FF
Rewind
Digital zoom
Previous frame
Next frame
etc.
-
DECODING
-
Live View
-
1× 16MP@30
4×12MP (only available for main output)
-
-
Playback
-
1× 16MP@30
4× 8MP(only available for main output)
-
Intelligent Analytics
-
Face Detection Performance (AI by Camera)
-
128CH
-
-
Face Detection Performance (AI by NVR)
-
4CH (4MP)
-
-
Face Match Performance
-
16CH
-
-
Comparison Capability
-
36 pictures/second
-
-
Face Picture Database
-
32 libraries
10000 Face Pictures
-
-
Face Picture Search
-
Search by picture is supported
-
-
Database Management
-
Add
modify
delete
search face pictures
-
-
Face Picture Adding
-
Add face pictures through APP
WEB and external import
-
-
Face Picture Comparison
-
Supports successful face recognition alarm and stranger match alarm
-
-
Track
-
Track display on a map
-
-
Statistical Graph of Information
-
Bar graph
-
-
Statistical Mode of Information
-
Statistics by day, week, month, quarter as well as customized time period
-
PERIMETER PROTECTION
-
Human/Vehicle Classification (AI by Camera)
-
128CH
-
-
Human/Vehicle Classification (AI by NVR)
-
8CH (2MP)
-
-
Human/Vehicle Attribute Analysis (AI by Camera)
-
Yes
-
ALARM
-
Mode
-
Manual
Sensor
Motion
Exception
Smart events
etc.
-
-
Input
-
24CH
-
-
Channel Capacity
-
8CH
-
-
Triggering
-
Record
Snapshot
Preset
E-mail
etc.
-
OTHER FUNCTION
-
Fisheye
-
Supports fisheye dewarping via NVR
Web Client
Mobile APP
-
-
Plate Recognition (AI by Camera)
-
Yes
-
NETWORK
-
Interface
-
RJ 45 1000 Mbps × 4
-
-
Protocol
-
TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP
NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
-
-
Client Connection
-
Max. 128 users access
-
-
Mobile Device OS
-
Ios
Android
-
PORT
-
PoE Network Port
-
No
-
-
SFP Interface
-
SFP × 2
-
-
Storage Expansion
-
Mini SAS × 2 (currently no function)
-
STORAGE
-
HDD Interface
-
SATA × 24 max 18TB per HDD
-
-
RAID Type
-
RAID0,1,5,6,10
-
External Interface
-
E-SATA Interface
-
2
-
-
USB
-
USB3.0× 1
USB2.0 × 3
-
-
RS485
-
Yes (full-duplex)
connect to keyboard
-
-
RS232
-
Yes
-
-
12V Output
-
Yes (1A)
-
-
Power Switch
-
Yes
-
DECODING CARD
-
HDMI Interface
-
8 HDMI output
2 HDMI input
-
-
HDMI Output
-
HDMI1:
3840×2160@60
3840×2160@30
1920×1080
HDMI2:
3840×2160@60
3840×2160@30
1920×1080
HDMI3:
3840×2160@60
3840×2160@30
1920×1080
HDMI4:
1920×1080
-
-
HDMI Input
-
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
(HDMI Input only can be
output to the monitor connected to the HDMI output interface of the same decoding card)
-
-
Display Layout
-
HDMI1/HDMI2/HDMI3/HDMI4
1/4/6/8/9/13/16/25/32/36 144(36+36+36+36)
-
-
Decoding Capability
-
32×1080P@30fps (1×16MP@30fps per HDMI output)
-
OTHERS
-
Power
-
Single or redundant, AC100V / 240V
-
-
Consumption
-
≤ 50W (without HDD)
-
-
Dimensions (mm)
-
W = 483
D = 535
H = 175
-
-
Weight
-
16.35KG
-
-
Certificate
-
EMC:EN 55032:2015+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 55035:2017+A11:2020
Safety: EN IEC 62368-1:2020+A11:2020
RoHS:2011/65/EU
-
-
Working Environment
-
-10~50℃
Humidity: 10%~90%
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
