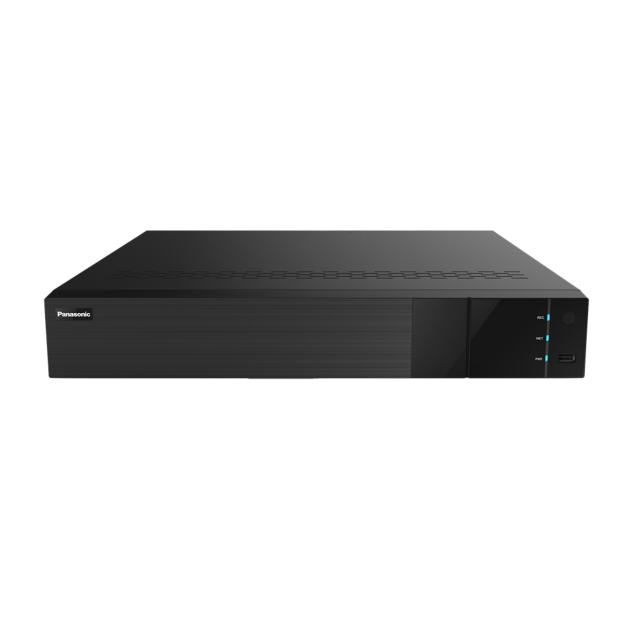

PM-VN32CH
32CH Network Video Recorder 16PoE ports
The Panasonic PM-VN32CH is a high-performance NVR engineered for expansive surveillance systems. Supporting up to 32 IP input channels, it ensures crystal-clear, high-definition recording across all streams using advanced SOC technology. With 4 HDD interfaces, it offers substantial storage capacity to accommodate continuous, long-term video retention.Equipped with 16 built-in PoE ports, simplifies installation by powering connected IP cameras directly, reducing cabling complexity. It enables simultaneous 4K playback across multiple channels.
Features
Key Features
• 32CH Network Video Recorder 16PoE ports
• Bandwith of Incoming: 320Mbps/ Outgoing: 256Mbps
• Simultaneous playback of Max.16CH
• Inteligent Analytics
• Bandwith of Incoming: 320Mbps/ Outgoing: 256Mbps
• Simultaneous playback of Max.16CH
• Inteligent Analytics
Mobile App Access
Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Specs
32CH Network Video Recorder 16PoE ports
Bandwith of Incoming: 320Mbps/ Outgoing: 256Mbps
Simultaneous playback of Max.16CH
Inteligent Analytics
Network Video Recorder
-
Type
-
32CH Network Video Recorder, 16PoE ports
-
-
OS
-
Embedded Linux
-
VIDEO
-
IP Video Input
-
32CH
-
-
Network Bandwidth
-
Incoming: 320Mbps
Outgoing: 256Mbps
-
-
Resolution
-
12MP
9MP
8MP
6MP
5MP
4MP
3MP
1080P
960P
720P
960H
D1
CIF
-
-
Output
-
HDMI1:
3840×2160
1920×1080
1280×1024
1024×768
HDMI2:
1920×1080
1280×1024
1024×768
VGA×1:
1920×1080
1280×1024
1024×768
VGA and HDMI1 output the same video source
-
-
Multi-screen Display
-
Main output: 1/4/6/8/9/13/16/25/32/36 (live view)
AUX output: 1/4/6/8/9 (live view)
Max. 41CH(36+9) local live view
-
-
Compression
-
H.264
H.265
H.265+
H.265S
-
AUDIO
-
Network input
-
32CH Camera audio input
-
-
Local Input
-
RCA×1 (for two-way talk)
-
-
Local Output
-
RCA×1
-
-
HDMI Audio Output
-
-
-
-
Audio Compression
-
G.711(U/A)
-
RECORD
-
Resolution
-
12MP
9MP
8MP
6MP
5MP
4MP
3MP
1080P
960P
720P
960H
D1
CIF
-
-
Frame Rate
-
12MP: 20fps
9MP or lower resolution
NTSC: 30fps
PAL: 25fps
-
PLAYBACK
-
Simultaneous Playback
-
Max.16CH
-
-
Search
-
Time Slice
Time
Event
Tag
Smart Search
-
-
Function
-
Play
Pause
FF
Rewind
Digital zoom
Previous frame
Next frame
etc.
-
DECODING
-
Live View
-
1CH 12MP
4CH1080P
-
-
Playback
-
1CH 12MP
4CH1080P
-
Intelligent Analytics
-
Face Detection Performance (AI by Camera)
-
32CH
-
-
Face Detection Performance (AI by NVR)
-
2CH(2MP)
-
-
Face Match Performance
-
6CH
-
-
Comparison Capability
-
18 pictures / second
-
-
Face Picture Database
-
32 libraries
10000 Face Pictures
-
-
Face Picture Search
-
Search by picture is supported
-
-
Database Management
-
Add, modify, delete and search face pictures
-
-
Face Picture Adding
-
Add face pictures through APP, WEB and external import
-
-
Face Picture Comparison
-
Support successful face recognition alarm and stranger match alarm
-
-
Track
-
Track display on a map
-
-
Statistical Graph of Information
-
Bar graph
-
-
Statistical Mode of Information
-
Statistics by day, week, month, quarter as well as customized time period
-
PERIMETER PROTECTION
-
Human/Vehicle Classification (AI by Camera)
-
32CH
-
-
Human/Vehicle Classification (AI by NVR)
-
2CH(2MP)
-
-
Human/Vehicle Attribute Analysis (AI by Camera)
-
Yes
-
ALARM
-
Mode
-
Manual
Sensor
Motion
Exception
Smart events
etc.
-
-
Input
-
16CH
-
-
Channel Capacity
-
4CH
-
-
Triggering
-
Record
Snapshot
Preset
E-mail
etc.
-
OTHER FUNCTION
-
Fisheye
-
Supports fisheye dewarping via Web Client
Mobile APP
-
-
Plate Recognition (AI by Camera)
-
Yes
-
NETWORK
-
Interface
-
RJ 45 1000 Mbps × 2
-
-
Protocol
-
TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP
NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
-
-
Client Connection
-
Max.128 users access
-
-
Mobile Device OS
-
Ios
Android
-
PORT
-
PoE Network Port
-
RJ 45 100Mbps×16
-
-
SFP Interface
-
No
-
-
Storage Expansion
-
No
-
STORAGE
-
HDD Interface
-
SATA×4 max16TB per HDD (HDD are not included)
-
-
RAID Type
-
-
-
External Interface
-
E-SATA Interface
-
1
-
-
USB
-
USB3.0×1
USB2.0×2
-
-
RS485
-
Yes (full-duplex)
connect to keyboard
-
-
RS232
-
No
-
-
12V Output
-
ATX 300W(PoE)
-
-
Power Switch
-
Yes
-
DECODING CARD
-
HDMI Interface
-
2 HDMI output
-
-
HDMI Output
-
HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768
HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA and HDMI1 output the same video source
-
-
HDMI Input
-
-
-
-
Display Layout
-
Main output:1/4/6/8/9/13/16/25/32/36 (live view)
AUX output:1/4/6/8/9 (live view)
Max. 32+9CH local live view
-
-
Decoding Capability
-
Non-AI Mode:1×16MP@30fps/4×6MP@30fps/9×2MP@30fps/16×720P@30fps
AI Mode: 1×16MP@30fps/4×5MP@30fps/9×2MP@30fps/16×720P@30fps
-
OTHERS
-
Power
-
100-240V AC, 300W, 5.5A
-
-
Consumption
-
≤20W (without HDD and PoE power supply)
-
-
Dimensions (mm)
-
W = 440
D = 390
H = 70
-
-
Weight
-
4.5KG
-
-
Certificate
-
EMC:EN 55032:2015+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 55035:2017+A11:2020
Safety: EN IEC 62368-1:2020+A11:2020
RoHS:2011/65/EU
-
-
Working Environment
-
-10~50℃
Humidity: 10%~90%
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
