PM-VN64CH
64CH Network Video Recorder
The Panasonic 64-Channel NVR is a high-performance, scalable video management solution tailored for large-scale surveillance systems. Supporting up to 64 high-definition IP camera inputs, it accommodates resolutions from 720p to 16MP, making it adaptable to diverse security needs. Powered by an advanced System on Chip (SoC) architecture, this NVR ensures stable, high -quality recording across all channels with superior reliability. It features simultaneous 16-channel playback and delivers crystal-clear 8K HD output for enhanced live monitoring and video review.
Features
Key Features
• 64CH Network video recorder
• Bandwith of Incoming/Outgoing 640Mbps
• Simultaneous playback of Max.16CH
• Inteligent Analytics
• Bandwith of Incoming/Outgoing 640Mbps
• Simultaneous playback of Max.16CH
• Inteligent Analytics
Mobile App Access
Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Specs
64CH Network video recorder
Bandwith of Incoming/Outgoing 640Mbps
Simultaneous playback of Max.16CH
Inteligent Analytics
Network Video Recorder
-
Type
-
64CH Network video recorder
-
-
OS
-
Embedded Linux
-
VIDEO
-
IP Video Input
-
64CH
-
-
Network Bandwidth
-
Incoming: 640Mbps
Outgoing: 640Mbps
*When the AI function of the Camera is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR.
-
-
Resolution
-
16MP
12MP
8MP
6MP
5MP
4MP
3MP
1080P
1280x1024
960P
720P
960H
D1
CIF
-
-
Output
-
HDMI1:
7680×4320@60
7680×4320@30
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
(When the resolution of HDMI1output is 8K)
(HDMI2 is unavailable and the maximum resolution of HDMI3 output is 1920×1080)
HDMI2:
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
HDMI3:
3840×2160@60
3840×2160@30
1920×1080
1280×1024
1024×768
HDMI4:
1920×1080
1280×1024
1024×768
VGA×1:
1920×1080
1280×1024
1024×768
(VGA and HDMI1 output the same video source)
-
-
Multi-screen Display
-
Main output: 1/4/6/8/9/13/16/25/32/36/64
AUX output1: 1/4/6/8/9/13/16/25/32/36
AUX output2: 1/4/6/8/9/13/16
AUX output 3: 1/4/6/8/9/13/16
Max.132(64+36+16+16)
-
-
Compression
-
H.264
H.265
H.265+
H.265S
-
AUDIO
-
Network input
-
64CH Camera audio input
-
-
Local Input
-
RCA×1 (for two-way talk)
-
-
Local Output
-
RCA×1
-
-
HDMI Audio Output
-
Support
-
-
Audio Compression
-
G.711(U/A)
-
RECORD
-
Resolution
-
16MP
12MP
8MP
6MP
5MP
4MP
3MP
1080P
1280x1024
960P
720P
960H
D1
CIF
-
-
Frame Rate
-
NTSC: 30fps
PAL: 25fps
-
PLAYBACK
-
Simultaneous Playback
-
Max.16CH
-
-
Search
-
Time Slice
Time
Event
Tag
Smart Search
-
-
Function
-
Play
Pause
FF
Rewind
Digital zoom
Previous frame
Next frame
etc.
-
DECODING
-
Live View
-
1CH 16MP@30
4 CH 12MP(only available for main output)
-
-
Playback
-
1CH 16MP@30
4CH 8MP(only available for main output)
-
Intelligent Analytics
-
Face Detection Performance (AI by Camera)
-
64CH
-
-
Face Detection Performance (AI by NVR)
-
4CH(4MP)
-
-
Face Match Performance
-
16CH
-
-
Comparison Capability
-
36 pictures/second
-
-
Face Picture Database
-
32 libraries
10000 Face Pictures
-
-
Face Picture Search
-
Search by picture is supported
-
-
Database Management
-
Add, modify, delete and search face pictures
-
-
Face Picture Adding
-
Add face pictures through APP, WEB and external import
-
-
Face Picture Comparison
-
Support successful face recognition alarm and stranger match alarm
-
-
Track
-
Track display on a map
-
-
Statistical Graph of Information
-
Bar graph
-
-
Statistical Mode of Information
-
Statistics by day, week, month, quarter as well as customized time period
-
PERIMETER PROTECTION
-
Human/Vehicle Classification (AI by Camera)
-
64CH
-
-
Human/Vehicle Classification (AI by NVR)
-
8CH(2MP)
-
-
Human/Vehicle Attribute Analysis (AI by Camera)
-
Yes
-
ALARM
-
Mode
-
Manual
Sensor
Motion
Exception
Smart events
etc.
-
-
Input
-
16CH
-
-
Channel Capacity
-
4CH
-
-
Triggering
-
Record
Snapshot
Preset
E-mail
etc.
-
OTHER FUNCTION
-
Fisheye
-
Supports fisheye dewarping via NVR
Web Client
Mobile APP
-
-
Plate Recognition (AI by Camera)
-
Yes
-
NETWORK
-
Interface
-
RJ 45 1000 Mbps × 2
-
-
Protocol
-
TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP
NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
-
-
Client Connection
-
Max.128 users access
-
-
Mobile Device OS
-
Ios
Android
-
PORT
-
PoE Network Port
-
No
-
-
SFP Interface
-
No
-
-
Storage Expansion
-
No
-
STORAGE
-
HDD Interface
-
SATA×8 max16TB per HDD
-
-
RAID Type
-
RAID0,1,5,6,10
-
External Interface
-
E-SATA Interface
-
2
-
-
USB
-
USB3.0×1
USB2.0×2
-
-
RS485
-
Yes (full-duplex)
connect to keyboard
-
-
RS232
-
No
-
-
12V Output
-
ATX-200W
-
-
Power Switch
-
Yes
-
DECODING CARD
-
HDMI Interface
-
4 HDMI output
-
-
HDMI Output
-
HDMI1 7680×4320@60 7680×4320@30 3840×2160@60 3840×2160@30 1920×1080 1280×1024
1024×768 (When the resolution of HDMI1output is 8K, HDMI2 is unavailable and the maximum
resolution of HDMI3 output is 1920×1080)
HDMI2: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI3: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768
HDMI4: 1920×1080 1280×1024 1024×768
VGA×1: 1920×1080 1280×1024 1024×768 (VGA and HDMI1 output the same video source)
-
-
HDMI Input
-
-
-
-
Display Layout
-
Main output 1/4/6/8/9/13/16/25/32/36/64
AUX output 1 1/4/6/8/9/13/16/25/32/36
AUX output2 1/4/6/8/9/13/16
AUX output 3 1/4/6/8/9/13/16
Max. 132(64+36+16+16)
-
-
Decoding Capability
-
Live View:1CH 16MP@30 / 4 CH 12MP(only available for main output)
Playback :1CH 16MP@30 / 4CH 8MP(only available for main output)
-
OTHERS
-
Power
-
ATX 200W
-
-
Consumption
-
≤ 50W (without HDD)
-
-

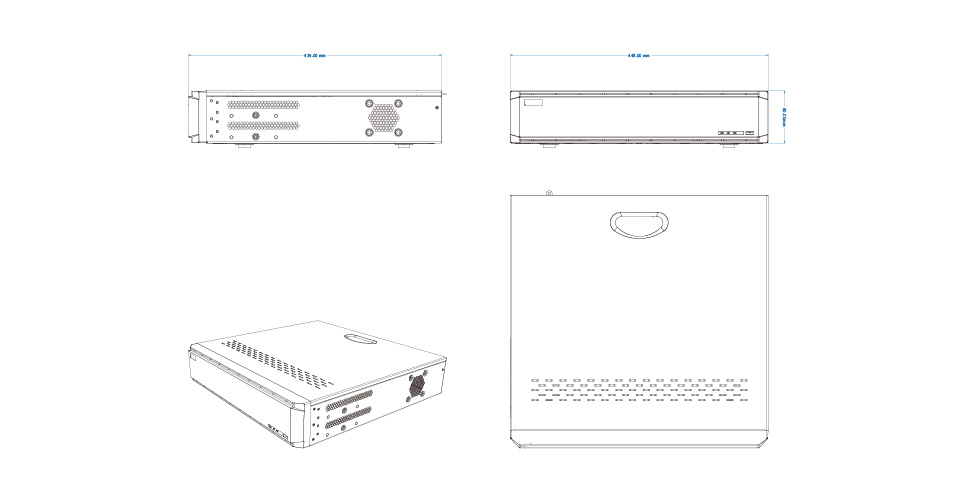

Dimensions (mm)
-
W = 445
D = 436
H = 90
-
-
Weight
-
7.67KG
-
-
Certificate
-
EMC:EN 55032:2015+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 55035:2017+A11:2020
Safety: EN IEC 62368-1:2020+A11:2020
RoHS:2011/65/EU
-
-
Working Environment
-
-10~50℃
Humidity: 10%~90%
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
