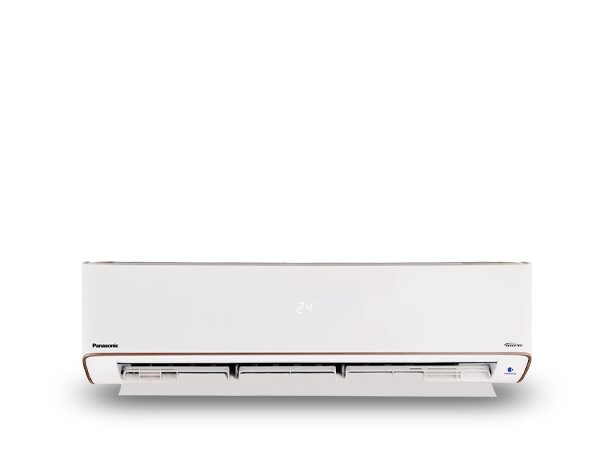

CS-EU24BKXF, nanoe X™ Technology Air Conditioner
Tonnage Class
-
TR
-
2.0
-
Model
-
CS/CU-EU24BKXF-8
T1
-
Cooling Capacity
-
BTU/hr
-
24000
-
-
-
Power
-
W
-
1970
-
-
-
EER
-
BTU/hr/W
-
12.183
-
-
-
Rated Current@230V
-
A
-
9.0
-
-
-
Rated Current@240V
-
A
-
8.6
-
-
T3
-
Cooling Capacity
-
BTU/hr
-
21500
-
-
-
Power
-
W
-
2400
-
-
-
EER
-
BTU/hr/W
-
8.958
-
-
-
Rated Current@230V
-
A
-
11.0
-
-
-
Rated Current@240V
-
A
-
10.5
-
-
Max. Input Power
-
W
-
2660
-
Max. Input Current
-
A
-
12.2
-
Power supply source
-
V/Ph/Hz
-
220~240/1/50
-
Air Flow Volume
-
m³/h
-
1224
-
Noise level
-
Indoor (H/Q)
-
dB（A)
-
49/36
-
-
-
Outdoor
-
dB（A)
-
57
-
-
Net Weight (IDU [ODU]) (Kg)
-
12.5 [29.6]
Gross Weight (IDU [ODU]) (Kg)
-
14.5 [32.6]
Net Dimensions of the Indoor Unit
-
Length(L)
-
cm
-
104.0
-
-
-
Breadth(B)
-
cm
-
24.4
-
-
-
Height (H)
-
cm
-
29.6
-
-
Gross Dimensions of the Indoor Unit
-
Length(L)
-
cm
-
114.8
-
-
-
Breadth(B)
-
cm
-
31.4
-
-
-
Height (H)
-
cm
-
38.3
-
-
Net Dimensions of the Outdoor Unit
-
Length(L)
-
cm
-
82.4
-
-
-
Breadth(B)
-
cm
-
29.9
-
-
-
Height (H)
-
cm
-
61.9
-
-
Gross Dimensions of the Outdoor Unit
-
Length(L)
-
cm
-
97.0
-
-
-
Breadth(B)
-
cm
-
41.6
-
-
-
Height (H)
-
cm
-
70.0
-
-
Refrigerant
-
R-32
Operating Temp. Range
-
°C
-
16 ~ 55
-
Operating Volt. Range
-
V
-
198 ~ 264V
-
Refrigerant Pipe Diameter
-
Liquid Valve
-
cm
-
Ø0.635
-
-
-
Gas Valve
-
cm
-
Ø1.588
-
-
Chargeless Pipe Length
-
mm
-
7.5
-
Max. Pipe Length
-
20
Max. Height Difference
-
10
Container Loading
-
sets
-
155
-
