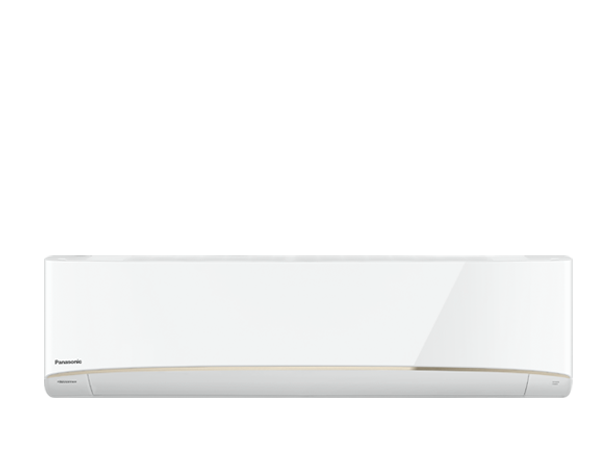

CS-YS18-UKA
| Model [ ]: Outdoor Unit |
[50Hz] | CS-YS18UKA CU-YS18UKA | |
|---|---|---|---|
| Cooling Capacity | Btu/h | 17,500 [3,750-19,400] | |
| kW | 5.12 [1.10-5.70] | ||
| EER | Btu/hW | 11.51[12.93-10.78] | |
| Elecrical Data | Voltage | V | 220 |
| Runnning Current | A | 7.1 | |
| Power Input | W | 1,520 [290-1,800] | |
| Moisture Removal | L/h | 2.8 | |
| Pt/h | 5.9 | ||
| Air Circulation [Indoor/Hi] | m³/min | 19.7 | |
| ft³/min | 695 | ||
| DimensionsIndoor [Outdoor] | Height | mm | 302 [619] |
| inch | 11-29/32 [24-3/8] | ||
| Width | mm | 1,102 [824] | |
| inch | 43-13/32 [32-15/32] | ||
| Depth | mm | 244 [299] | |
| inch | 9-5/8 [11-25/32] | ||
| Net Weight / Indoor [Outdoor] | kg | 12 [32] | |
| lb | 26 [71] | ||
| Refrigerant Pipe Diameter | Liquid Side | mm | ø 6.35 |
| inch | 1/4" | ||
| Gas Side | mm | ø 12.70 | |
| inch | 1/2" | ||
| Pipe Extension | Chargeless Pipe Length | m | 10 |
| Pipe Length Range | m | 3 - 30 | |
| Maximum Height Difference | m | 20 | |
| Power Supply | Indoor | ||
| Note | * When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit. | ||
