Infrared Wireless Receiver for CZ-RWS3

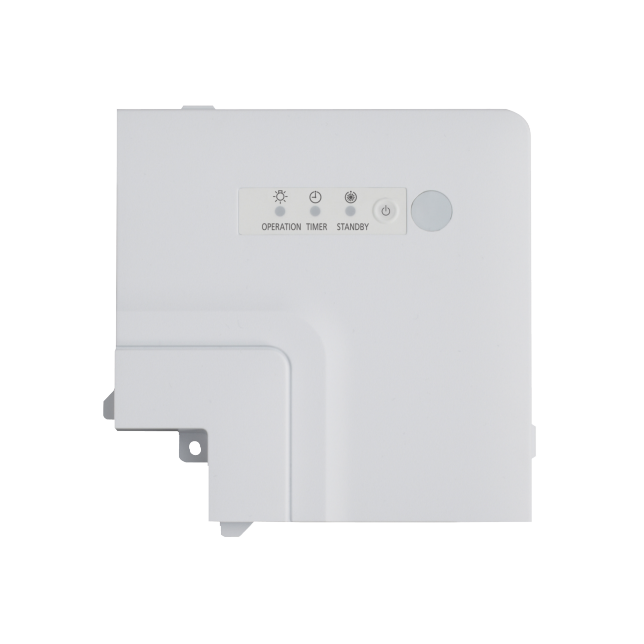

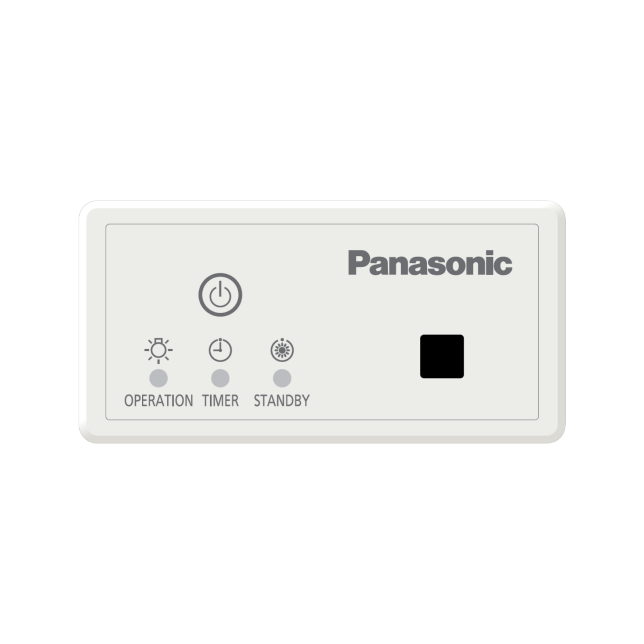

Wireless Remote Receiver

All FSV Types Operated by Wireless Controller

Five types of receivers are available for each indoor unit type.

Wireless Remote Receiver

Infrared signal from wireless remote control CZ-RWS3 Accessory to transmit to air conditioner.

Remote controller by main remote controller and sub controller is possible.

Max. 2 remote controllers (main remote controller and sub controller) can be installed for one indoor unit.

24 hour timer function.

	CZ-RWRL3	CZ-RWRU3	CZ-RWRT3	CZ-RWRD3	CZ-RWRC3
Dimensions (mm)	Receiver: (H) 37 × (W) 70 × (D) 22 Operation panel: (H) 55 × (W) 120 × (D) 16	(H) 29.7 × (W) 211.8 × (D) 211.8	(H) 65 × (W) 141 × (D) 22.5	(H) 65 × (W) 130 × (D) 22	(H) 120 × (W) 70 × (D) 20
Weight	Receiver: 15 g Operation panel: 75 g	160 g	85 g	82 g	75 g
Temperature / Humidity range	0 °C to 40 °C / 20% to 80% (No condensation) *Indoor use only.	0 °C to 40 °C / 20% to 80% (No condensation) *Indoor use only.	0º C to 40 ºC / 20% to 80% (no condensation) *Indoor use only.	0º C to 40 ºC / 20% to 80% (no condensation) *Indoor use only.	0 °C to 40 °C / 20 % to 80 % (No condensation) *Indoor use only.
Power Source	DC16 V (supplied from indoor unit)	DC16 V (supplied from indoor unit)	DC16 V (supplied from indoor unit)	DC16 V (supplied from indoor unit)	DC16 V (supplied from indoor unit)
