HC-X2
Versatile streaming functionality ideal for professional shooting sites
The X2 is a 4K professional camcorder with high mobility, 4K 60p/50p 10bit recording, HLG and 13-stop V-Log for HDR and HD live streaming capabilities.
Note: The mics shown in the product photos are optional.

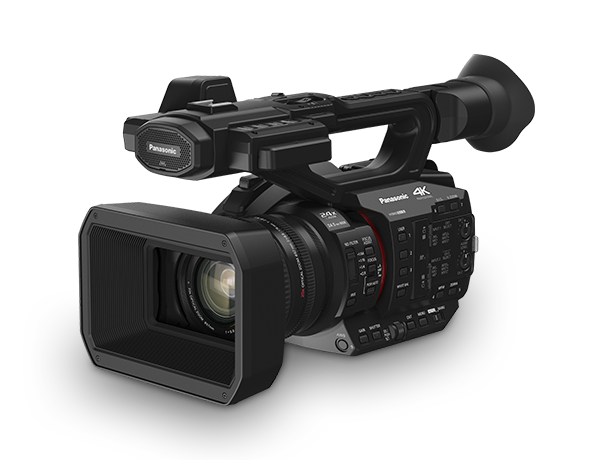

![](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1741138.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
Professional All-in-one 4K 60p Camcorder
With its 1.0-type (1.0-inch) sensor, the X2 provides powerful support in event shootings and more with its optical performance that reliably captures the subject and the mobility that only a handheld camera with an integrated lens can offer.
![Professional All-in-one 4K 60p Camcorder](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1744147.png.pub.thumb.644.644.png)
Wide 24.5mm* and Optical 20x Zoom Lens
The lens covers the range from 24.5mm wide-angle to 490mm tele with a 20x zoom. i.ZOOM achieves 24x zoom with 4K resolution, and 32x zoom with FHD.
* 35mm camera equivalent.
![Wide 24.5mm* and Optical 20x Zoom Lens](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740755.png.pub.thumb.644.644.png)
Versatile Recording Mode
Supports a high bit rate of 200 Mbps for 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec. The Super Slow-motion function supports 10-bit recording in FHD at 120/100fps* and 4K (UHD) VFR from 2 to 60fps** for over-cranked and under-cranked shots to allow for highly creative video expression.
* 59.94Hz: 120fps, 50Hz: 100fps
** Selectable frame rate depends on the recording format.
** Selectable frame rate depends on the recording format.
![Versatile Recording Mode](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740756.png.pub.thumb.644.644.png)
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.
![4K High-Precision AF](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740758.jpg.pub.thumb.644.644.jpg)
5-Axis HYBRID O.I.S.+
In both UHD/FHD modes, in addition to Optical Image Stabilization, Electronic Image Stabilization detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
![5-Axis HYBRID O.I.S.+](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740768.jpg.pub.thumb.644.644.jpg)
4:2:2 10-bit Internal Recording
Records a 4:2:2 10-bit color profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI.
![4:2:2 10-bit Internal Recording](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740769.jpg.pub.thumb.644.644.jpg)
HLG/13-stop V-Log for HDR Video Production
The X2 is equipped with HLG (Hybrid Log Gamma) shooting mode, one of the standards related to HDR. In addition, it supports V-Log, which is also available on the Panasonic VARICAM cinema camera and LUMIX mirrorless cameras, providing 13 stops of latitude. When combined with a V-Log compatible camera, color grading provides a uniform image in post-production.
![HLG/13-stop V-Log for HDR Video Production](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740770.jpg.pub.thumb.644.644.jpg)
Full-HD Live Streaming
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables direct connection and distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.
![Full-HD Live Streaming](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740741.jpg.pub.thumb.644.644.jpg)
Wireless Control from a Tablet or Smartphone
A Wi-Fi module is built-in, so Wi-Fi connection of only the body is possible. Using a tablet or smartphone app HC ROP, wireless camera settings and lens control are also possible.
![Wireless Control from a Tablet or Smartphone](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740742.jpg.pub.thumb.644.644.jpg)
Functions and Designs that Support Professional Camera Work
1 Triple Manual Rings
The X2 features triple manual rings on the lens barrel for Focus, Zoom and Iris control. These manual functions ensure professional operation and enable speedy and intuitive camera work.
![Triple Manual Rings](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740743.jpg.pub.jpg)
2 ND Filter
ND filters are built into the lens to suppress the amount of incident light. The filters can be selected (Clear, 1/4, 1/16 or 1/64) to match the shooting environment. This is convenient, for example, when you want to shoot at a slow shutter speed in bright daylight.
![ND Filter](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740744.jpg.pub.jpg)
3 2-Channel XLR Audio Input Terminals
+48V Phantom Power Supply/MIC/LINE Selectable XLR Audio Input with Manual Volume is equipped for each of 2 channels. Also supports 24-bit high-resolution Linear PCM audio recording with a professional mic.
![2-Channel XLR Audio Input Terminals](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740745.jpg.pub.jpg)
4 3.5-inch High Brightness LCD Monitor
The approx. 2,760-k dot LCD monitor realizes excellent visibility even in bright sunlight with high brightness, and an electrostatic touch panel for easy menu selection. Simultaneous LCD/EVF output constantly displays the LCD monitor image whether the EVF is being viewed or not.
![3.5-inch High Brightness LCD Monitor](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740748.jpg.pub.jpg)
5 Dual Codec Recording
Records images simultaneously in two different formats, such as Main (UHD/FHD) and Sub (FHD), etc. This achieves an efficient workflow.
* Only MOV format is supported.
![Dual Codec Recording](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740749.jpg.pub.jpg)
6 User Buttons
48 functions can be allocated to the User Buttons. There are a total of 14 User Buttons: nine on the body, and five on the LCD Touch Panel. The O.I.S. and D.ZOOM buttons can also be used as User Buttons.
![User Buttons](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740750.jpg.pub.jpg)
7 Tiltable Viewfinder with Eyecup
The 2,360K-dot-equivalent color OLED viewfinder can be tilted for added convenience. The large eyecup fits either eye comfortably.
![Tiltable Viewfinder with Eyecup](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740751.jpg.pub.jpg)
8 Simultaneous SDI/HDMI Output
Output of UHD 4:2:2 10-bit via HDMI and FHD 4:2:2 10-bit via SDI enable a variety of uses. In V-Log shooting, either V-Log or V709 (HDR or SDR in HLG shooting) can be selected for each of the SDI, HDMI and LCD video outputs.
![Simultaneous SDI/HDMI Output](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740752.jpg.pub.jpg)
9 LAN Terminal / USB Tethering
A wired LAN connection enables stable live streaming even in environments with unstable Wi-Fi. Streaming using 5G smartphones is also possible via USB tethering.
![LAN Terminal / USB Tethering](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1740753.jpg.pub.jpg)
Specs

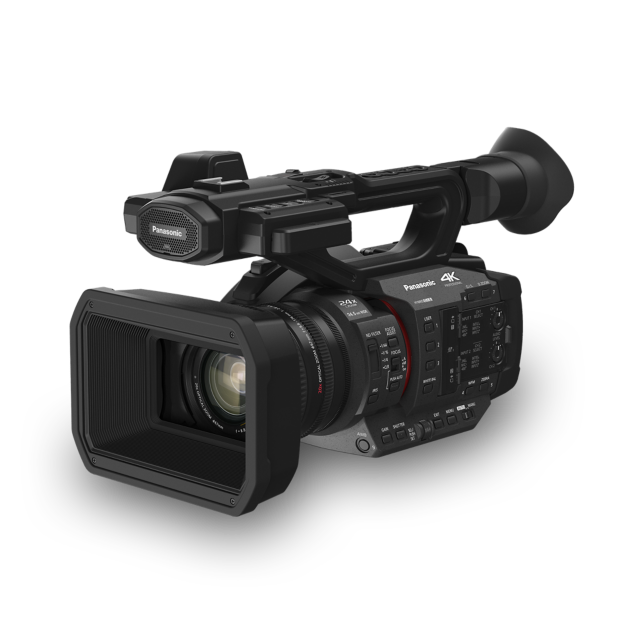

![Photo of 4K Professional Camcorder HC-X2](/content/dam/pim/my/en/HC/HC-X2/HC-X2/ast-1741137.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 195mm
- Width
- 173mm
- Depth
- 344mm
- Weight
- 2040g
All values are approximate. The lens hood is included in the dimensions but the eye cup and microphone holder are excluded. The weight is for the main unit only, including the grip belt, and excludes the lens hood, battery, and supplied accessories.
1.0-inch Sensor
Optical 20x Zoom
24.5mm Wide-Angle
4K High Precision AF
5-Axis HYBRID O.I.S.+
Built-in Wi-Fi
Effective 15-megapixel 1.0-type (1.0-inch) Sensor
4K 60p 4:2:0 10bit / 4K 30p 4:2:2: 10-bit Recording
Wide 24.5mm and Optical 20x Zoom Lens
HLG (Hybrid Log Gamma) /13-stop V-Log
Super-Slow Motion and VFR (2 to 60fps)
SENSOR SECTION
-
Image Sensor
-
1.0-inch MOS Sensor
-
-
Effective Pixels
-
15.03 megapixels
-
-
Latitude
-
13 stops (V-log)
-
LENS SECTION
-
F Value
-
F2.8 ― 4.5
-
-
Optical Zoom
-
20x
-
-
Focal Length
-
8.8 ― 176 mm
-
-
35 mm Film Camera Equivalent
-
24.5 ― 490 mm
-
-
Filter Diameter
-
67 mm
-
-
Lens Brand
-
Panasonic Lens
-
CAMERA SECTION
-
Minimum Illumination
-
0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)
-
-
Focus
-
Auto / Manual
-
-
Zoom
-
i.Zoom OFF
-
20x
-
-
i.Zoom ON
-
Max. 32x (UHD 24x)
-
-
Digital Zoom
-
2x / 5x / 10x
-
-
-
ND Filter
-
Clear, 1/4, 1/16, 1/64
-
-
IR Filter
-
Incorporates the ON/OFF control function
-
-
White Balance
-
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
-
-
Shutter Speed
-
59.94 Hz mode
-
59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
-
-
50.00 Hz mode
-
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/8000 sec
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/8000 sec
-
-
-
Slow Shutter Speed
-
59.94 Hz mode
-
59.94i/59.94p: 1/8, 1/15, 1/30 sec
29.97p: 1/8, 1/15 sec
23.98p: 1/6, 1/12 sec
-
-
50.00 Hz mode
-
50i/50p: 1/6, 1/12, 1/25 sec
25p: 1/6, 1/12 sec
-
-
-
Synchro Scan
-
59.94 Hz mode
-
59.94i/59.94p: 1/60.0 ― 1/249.6 sec
29.97p: 1/30.0 ― 1/249.8 sec
23.98p: 1/24.0 ― 1/249.7 sec
-
-
50.00 Hz mode
-
50i/50p: 1/50.0 ― 1/250.0 sec
25p: 1/25.0― 1/250.0 sec
-
-
-
VFR Recording Frame Rate
-
59.94 Hz mode
-
2, 12, 15, 20, 22, 24, 26, 28, 30, 32, 34, 36, 45, 48 ,60 fps
-
-
50.00 Hz mode
-
2, 12, 21, 23, 25, 27, 30, 37, 50 fps
-
-
-
Super Slow Recording Frame Rate
-
59.94 Hz mode
-
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
-
-
50.00 Hz mode
-
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
-
-
-
Iris
-
Auto / Manual
-
-
Image Stabilizer
-
Ball O.I.S., 5-Axis HYBRID O.I.S.+ (UHD/FHD)
-
RECORDING SECTION
-
Recording Media
-
SDHC/SDXC Memory Card, UHS-I compatible
-
-
Recording Format
-
MOV, MP4, AVCHD
-
-
Video Compression Method
-
MOV(HEVC)/MP4(HEVC): H.265/MPEG-4 HEVC Main10 Profile
MOV, MP4: H.264/MPEG-4 AVC High Profile
AVCHD: H.264/MPEG-4 AVC High Profile
-
-
Audio Compression Method
-
MOV: LPCM, 48kHz/24bit, 2ch
MP4: AAC, 48kHz/16bit, 2ch
AVCHD: Dolby Audio, 48kHz/16bit, 2ch
-
-
2-slot Function
-
Relay recording, simultaneous recording, background recording, dual codec recording
-
-
System Frequency
-
59.94Hz / 50.00Hz
-
-
Recording / Playback Mode
-
MOV (HEVC)
-
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR)
UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR)
-
-
MOV
-
[4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420LongGOP 150M: Average 150Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR)
[4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR)
FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR)
FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR)
FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR)
FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR)
FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR)
-
-
MP4 (HEVC)
-
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
-
-
MP4
-
[4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
FHD 1920x1080 59.94p/50.00p/23.98p 420 LongGOP 50M: Average 50Mbps (VBR)
-
-
AVCHD
-
[4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
-
-
DUAL CODEC SECTION
-
Recording Format
-
MOV
-
-
Video Compression Method
-
H.264/MPEG-4 AVC High Profile, 420LongGOP
-
-
Audio Compression Method
-
LPCM, 48kHz/24 bit, 2ch
-
-
Recording format
-
FHD 50Mbps
-
[Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP
[Sub recording] MOV: FHD 29.97p, 25.00p, 23.98p/420LongGOP
-
-
FHD 8Mbps
-
[Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP
MOV: 1080-59.94p, 50.00p/422LongGOP
MOV: 1080-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/422ALL-I
[Sub recording] MOV: FHD/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP
* The frame rate for sub recording is the same as for main recording.
-
-
LIVE STREAMING
-
Video Compression Format
-
H.264/MPEG-4 AVC Main Profile, High Profile
-
-
Video Resolution
-
1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
-
-
Streaming Method
-
Unicast, Multicast
-
-
Frame Rate
-
System frequency = 59.94 Hz: 60 fps, 30 fps, 24 fps
System frequency = 50.00 Hz: 50 fps, 25 fps
-
-
Bit Rate
-
24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
-
-
Audio Compression Format
-
AAC-LC, 48 kHz/16 bit, 2ch
-
-
Network Protocol
-
RTSP/RTP/RTMP/RTMPS
-
STILL IMAGE SECTION
-
Recording Format
-
JPEG (DCF/Exif2.2)
-
-
Recording Image Size*
-
Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
-
GENERAL SECTION
-
Power Supply
-
7.28V (Battery) / 12V (AC Adaptor)
-
-
Power Consumption
-
20.6W (LCD Monitor)
-
-
Dimensions (W x H x D)
-
Approx. 173 x 195 x 344 mm (6.82 x 7.68 x 13.55 inch) (including lens hood, excluding eye cup and microphone holder)
-
-
Weight
-
Approx. 2040g (4.50 lb) (main unit only (including grip belt), excluding lens hood, battery, and supplied accessories)
Approx. 2490g (5.49 lb) (including lens hood, supplied battery, eye cup, two SD cards, microphone holder and INPUT terminal caps)
-
-
LCD Monitor
-
3.5-inch Wide LCD monitor (About 2,760,000 dots)
-
-
Viewfinder
-
0.39-inch Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots
-
-
Manual Ring
-
Focus / Zoom / Iris
-
-
Accessory Shoe
-
Yes
-
INTERFACE SECTION
-
Video
-
SDI OUT
-
BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI, supports time code output and SDI remote recording control
Output format 4:2:2 10bit
1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/29.97p/25.00p/23.98p, 1080/59.94i/50.00i, 720/59.94p/50.00p
-
-
HDMI
-
Type A x 1 (VIERA Link not supported), supports time code output and remote recording control
Output format: 4:2:2 10bit
2160/59.94p/50.00p/29.97p/25.00p/23.98p,
1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i,
720/59.94p/50.00p, 480/59.94p, 576/50.00p
-
-
-
Audio Input
-
Built-in Microphone
-
Stereo microphone
-
-
Audio Input
-
XLR (3 pins) x 2
Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
LINE:+4dBu/0dBu (switchable menu)
MIC: –40dBu/–50dBu/–60dBu (switchable menu)
-
-
-
Audio Output
-
SDI OUT
-
2 ch (LPCM)
-
-
HDMI
-
2 ch (LPCM)
-
-
Headphone
-
3.5 mm diameter stereo mini jack x 1
-
-
Speaker
-
20 mm diameter, round x 1
-
-
-
Other Input/Output
-
TC IN/OUT
-
BNC x 1, input/output (switchable menu)
Input: 1.0V ― 4.0V [p-p], 10kΩ
Output: 2.0V±0.5V[p-p], low impedance
-
-
Camera Remote
-
2.5mm diameter super mini jack x 1
-
-
USB
-
Type-C x 1, USB3.1 Gen 1, HOST/DEVICE combined (switchable menu)
HOST: Bus power supported (5V, 0.9A), USB tethering function
DEVICE: mass storage function (read only)
-
-
LAN
-
RJ-45×1, 1000BASE-T/100BASE-TX
-
-
DC IN
-
DC 12V (11.4V ― 12.6V) EIAJ Type4
-
-
Wi-Fi
-
Standard
-
IEEE 802.11b/g/n
-
-
Frequency
-
2412 MHz to 2462 MHz [1 to 11ch]
-
STANDARD ACCESSORY
-
AC Adaptor
-
Yes
-
-
AC Cable
-
Yes
-
-
Rechargeable Battery Pack
-
Yes (5,900mAh)
-
-
Battery Charger
-
Yes
-
-
IR Remote
-
—
-
-
HDMI Cable
-
—
-
-
AV Cable
-
—
-
-
USB HOST Conversion Cable
-
—
-
-
USB Ethernet Adaptor
-
—
-
-
Microphone Holder
-
Yes
-
-
Microphone Holder Screws
-
Yes
-
-
Input Terminal Cap
-
Yes
-
-
Eye Cup
-
Yes
-
-
Lens Hood
-
Yes
-
-
Editing Software
-
—
-
-
Note
-
* Only images cut from video in video playback mode are supported.
-
