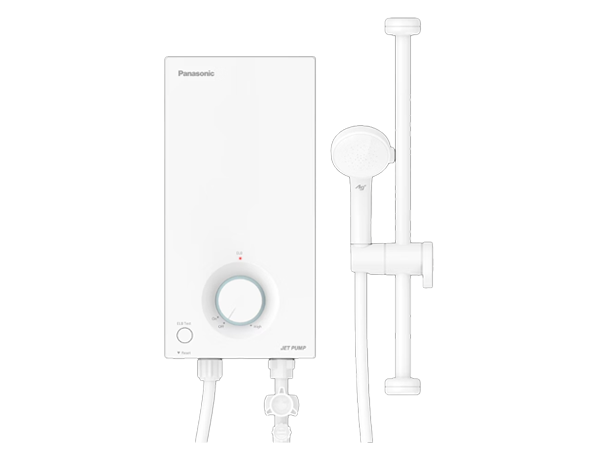

V Series Jet Pump Water Heater DH-3VP1MW
Basic Specification
-
PUMP/ NO PUMP
-
DC Pump
-
-
TYPE
-
Non LCD type (Analogue)
-
-
Power Supply
-
240 V, 50 Hz
-
-
Rated Power
-
3.6 kW
-
-
Water Pressure
-
Minimum
-
0.05 kgf/cm²
-
-
Maximum
-
3.87 kgf/cm²
-
-
-
Dimensions (h x w x d) mm
-
380 x 190 x 82
-
-
Main Unit Weight (kg)
-
2.51 kg
-
-
Body Colour
-
Matt White
-
Standard Regulation
-
SURUHANJAYA TENAGA (Safety)
ELB indication method
-
Red ELB light
Water Stop System
-
On/Off Rotary Switch
9 Safety Features
-
1. Water Splash Prood Case Cover
-
IEC 60529 (IP25)
-
-
2. Durable Copper Heater Unit
-
Plastic Tank
-
-
3. On Push On/Off Switch
-
On/Off Rotary Switch
-
-
4. Insulated Structure
-
IEC 60529 (IP25)
-
-
5. Built-in Earth Leakage Breaker (ELB)
-
Yes
-
-
6. Water Flow Sensor
-
Yes
-
-
7. Non-flammable Material Cover
-
Yes
-
-
8. Manual Reset Thermostat
-
Yes
-
-
9. Auto Thermal Cut-off
-
55ºC
-
Comfort Features
-
U-memory
-
-
-
-
U-mode
-
-
-
-
On/Off Pump function
-
-
-
-
Ag+ Antibacterial material
-
Yes
-
-
3-way Shower
-
Normal, Wide, Spot
-
