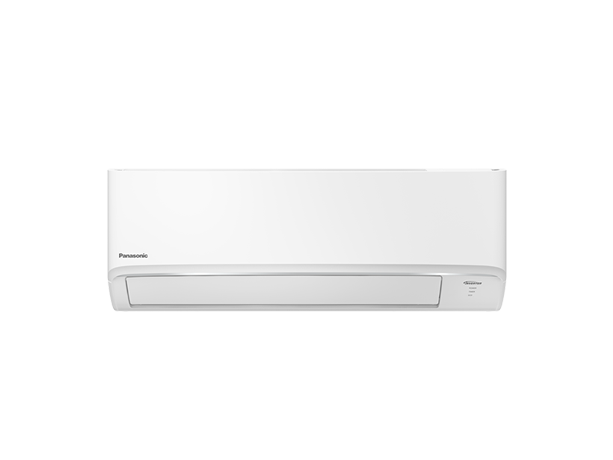

Photo of CS-PU9WKQ

CS-PU9WKQ

MODEL (60Hz) CS-PU9WKQ
[CU-PU9WKQ]
Cooling Capacity (min-max) kW 2.54 (0.84-3.10)
(min-max) kJ/h 9,140 (3,020-11,160)
EER (min-max) kJ/hW 13.64 (13.73-12.61)
Electrical Data Voltage V 230
Current A 3.2
Power Input (min-max) W 670 (225-885)
Moisture Removal L/h 1.6
Pt/h 3.4
Air Circulation Indoor m3/min (ft3/min) 10.3 (365)
Outdoor m3/min (ft3/min) 27.3 (960)
Noise Level Indoor (H / L / Q-Lo) dB (A) 36/26/21
Outdoor (H) dB (A) 47
Dimensions
Indoor (Outdoor)		 Height mm 290 (511)
inch 11-7/16 (20-1/8)
Width mm 779 (650)
inch 30-11/16 (25-19/32)
Depth mm 209 (230)
inch 8-1/4 (9-1/16)
Net Weight Indoor kg (lb) 8 (18)
Outdoor kg (lb) 18 (40)
Refrigerant Pipe
Diameter		 Liquid Side mm ø 6.35
inch 1/4
Gas Side mm ø 9.52
inch 3/8
Pipe Extension Chargeless Pipe Length m 7.5
Maximum Pipe Length m 20
Maximum Elevation Length m 15
Additional Refrigerant Gas* g/m 10
Power Supply Outdoor
