R32 Inverter NX Series Ceiling Exposed
Delivers superior air purification and convenience with a new IoT remote controller
R32 Inverter NX Series Ceiling Exposed units provide further and wider airflow distribution as well as offering more efficient air protection with nanoe X Generator Mark2. These units have the extra convenience of a new IoT remote controller.
Please Select Your User Type
R32 Inverter NX Series Ceiling Exposed
Features
|
Btu/h (rated) |
42,700 |
47,800 |
|
|
Phase |
3Ø Phase |
||
|
Indoor Unit |
|
S-3448PT3H |
|
|
Outdoor Units |
|
U-43PRH1H8 |
U-48PRH1H8 |
More Efficient Air Protection with nanoe X Generator Mark2
24-hour nanoe™ X Air Protection
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
Effective at Eliminating Odours in Half the Time
The nanoe X Generator Mark2 reduces odours by as much as 1.8 levels* in just half the time of the conventional nanoe X Generator Mark1.
*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more. [Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour
Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark1 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 120 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01)
Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark1 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 120 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01)
Smart Power Saving with IoT

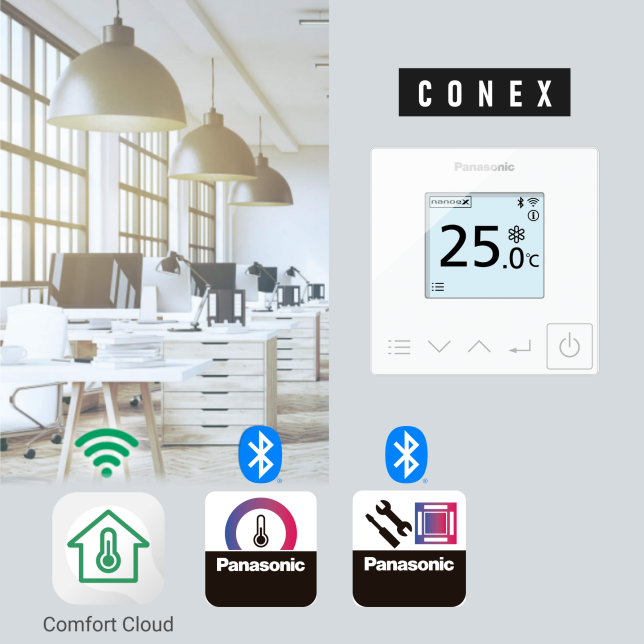

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.
Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.
Airflow Creates a Comfortable and Cool Environment
Cools the Area Quickly
Optimization of the shape of the casing and fan ensures bigger airflow. Powerful airflow delivered instantly makes all areas of spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.
Delivers Cool Air Over a Long Distance
The shape of the outlet has been optimized to provide long-distance airflow distribution. Cool air can reach up to 13 meters away, so even deep and wide spaces are comfortable.
Cools Spaces in Their Entirety
In addition to the wide air discharge opening, the louvers can be adjusted manually up to 90 degrees left and right, and automatically up to 30 degrees up and down. You can choose to distribute cool air to every part of a large space or deliver cool air to only places where you want it to go. You can use the unit in any way you like.
Compact Looking, Stylish Design
With its streamlined form, the unit looks slim and compact when installed for a neat appearance in any room. When not operating, the louver closes to provide an elegant look while keeping the unit clean.
Eco-Friendly R32 Refrigerant
Panasonic air conditioners are increasingly using the eco-friendly R32 refrigerant, an excellent energy- and cost-efficient heat transfer medium. With lower global warming potential, the R32 refrigerant is much more environmentally friendly.
･ Higher Cooling Capacity
･ Reduce Energy Costs
･ Eco Friendly
･ Higher Cooling Capacity
･ Reduce Energy Costs
･ Eco Friendly
High Durable Outdoor Unit
Stable Operation Even in Scorching Weather
The operating range has been increased to an outdoor air temperature of up to 52°C. Hot air is discharged from the outdoor unit during cooling operation. Needless to say, if outdoor units are close together, the temperature at the place where the outdoor units have been installed will be higher than the outside temperature. Units in this series continue to operate well even under the high temperature environment of midsummer.
Prevents Unit Stoppages Due to Short Circuits Caused by Geckos
One of the common causes of failures of the outdoor unit is electrical short circuits caused by geckos entering the unit. The unit eliminates gaps that prevent geckos from entering the internal PCB and thus prevent operation stoppages.
In-House Manufactured Compressor with Outstanding Durability
Compressors are the heart of the air conditioner. Panasonic takes responsibility for the manufacture of all of its own products to ensure their durability.
Rust-resistant and Easy to Maintain
Panasonic heat exchangers feature Blue Fin technology to prevent corrosion and ensure long-lasting performance. Panasonic uses a copper tube condenser, which makes it easy to repair and maintain.
Note: Selecting this unit does not completely eliminate the possibility of rust developing. For details concerning unit installation and maintenance, please consult an authorised dealer.
Long Piping Allows Flexible Installation
Piping can be extended up to 30 m without additional gas charging, and up to 50 m with additional gas charging. Even in stores and offices where space is limited, outdoor units can be installed on rooftops and other places.
Note: Additional gas is required when the piping length is extended.
Wireless, Wired Remote Controller
Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
*A wireless remote controller is in the same package with the indoor unit.
Flexible and Easy Installation
Piping can be extended up to 30 m without additional gas charging, and up to 50 m with additional gas charging. Even in stores and offices where space is limited, outdoor units can be installed on rooftops and other places.
Note: Additional gas is required when the piping length is extended.
Panasonic outdoor units are designed to be compact enough to fit into any layout.
This series have been developed with 3 wire power and communication. It makes it simple and easy to replace old systems with 3 wire connections, which is prevalent in many systems.
Specs
S-3448PT3H_U-43PRH1H8
S-3448PT3H_U-48PRH1H8
nanoe X Generator Mark2- Comfort Cloud App
- CONEX
- Inverter
- R32 Refrigerant
nanoe™ X patented air purification technology
CONEX: A next-generation remote control
Compact-looking, slim and stylish design with thickness only 235 mm
Comfortable, long-distance airflow distribution
The operating range expanded up to an outdoor air temperature of 52 °C
Wireless remote controller included
