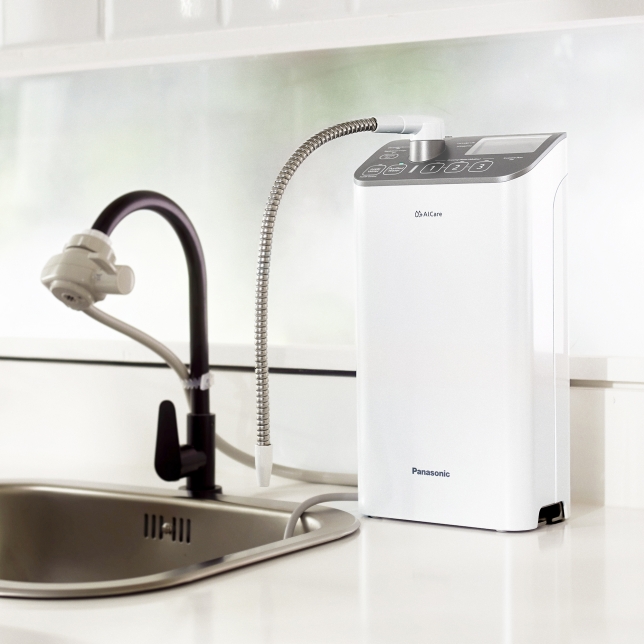

Micro Filtration Alkaline Ionizer TK-AS500-ZEX
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
TK-AS500-ZEX
Bringing You a Healthy Lifestyle with Safe Alkaline Ionized Water
Promotion
Auto 1 Year Extended Warranty
Your Panasonic purchase just got even better! Enjoy a hassle-free auto registration of 1 year additional warranty when you purchase here on our Official Online Store! Valid for orders from 9 Sept onwards.
*Exclude Batteries, Accessories and Free Gift.
**Only for purchases from Panasonic Official Online Store.
Panasonic Online Store Benefit
Get more out of your purchase when you join as a Panasonic member. Enjoy exclusive offers, earn points, free shipping and free installation/disposal (Washer, Dryer, Fridge and Aircon).
*Terms and Conditions apply
Features
Daily Hydration for Better Gut Vitality with Alkaline Ionised Water.
Stomach Wellness for Your Family through Daily Water Intake
Healthy Water for a Range of Applications
Five Kinds of Water Generated to Suit Your Needs
For Daily Healthy Water
Extracts More Flavor from Tea
Effectively Supports Daily Cooking
Utilize in Various Life Scenarios
Thoroughly Filtered, Pure, Worry-free
Removes 19 Harmful Substances, Bacteria
12000 L of Clear Water with Just 1 Cartridge
Convenient Features
1 Large, Easy-to-understand White Back Light LCD
2 Suitable for Confined Spaces
3 Easy water flow switch
4 Easy Installation
5 Easy Cartridge Replacement
Specs
Size and Weight
- Height
- 333mm
- Width
- 168mm
- Depth
- 95mm
- Weight
- 2.4kg
*Main unit **Approx. 2.8 kg when full of water
- AlCare
- Made in Japan
- NSF Certified
Generates 5 kinds of water: 3 levels alkaline, purified, acidic
High performance 4-stage filtration removes 19 harmful substances
Advanced water purification with an Micro Filtration membrane removes 99.999% of bacteria
12000 L of clear water with 1 cartridge
Compact and flat design that fits in the kitchen
Rated voltage, frequency, input current
-
220-240 V ~ , 50 Hz, 0.7 A
Rated power consumption
-
Approx. 64 W (approx. 0.5 W during standby)
Main unit
-
Dimensions
-
Approx. 168 (W) × 95 (D) × 333 (H) mm
-
-
Weight
-
Approx. 2.4 k (approx. 2.8 k when full of water)
-
Temperature of water used by Alkaline Ionizer
-
Under 35 °C (under 80 °C for bypass selector)
Pressure of water used by Alkaline Ionizer (dynamic pressure)
-
70 kPa to 350 kPa
Usable water service pressure (static pressure)
-
70 kPa to 750 kPa
Electrolysis
-
Electrolysis method
-
Continuous electrolysis
-
-
Output water volume (flow of water produced)
-
2.0 L/min. [at 100 kPa water pressure]
-
-
Electrolysis capability selection
-
Alkaline: 3 levels; Acidic: 1 level
-
-
Continuous operation capability
-
Approx. 10 minutes at room temperature (Note 1)
-
-
Electrolyzer life
-
Approx. 850 hours cumulative (ion water production time, cleaning time only)
-
-
Electrolytic cleaning
-
Auto cleaning method
-
Purified water output volume
-
2.4 L/min. [at 100 kPa water pressure]
Filtration flow volume
-
2.4 L/min. [at 100 kPa water pressure] (Note 2)
Cartridge Installed In the unit
-
TK-AS500C-EX
Purification capacity
-
Free residual chlorine 12 000 L (Note 2,3)
Turbidity 12 000 L (Note 2,4)
Chloroform 12 000 L (Note 2,5)
Total trihalomethane 12 000 L (Note 2,5)
Bromodichloromethane 12 000 L (Note 2,5)
Dibromochloromethane 12 000 L (Note 2,5)
Bromoform 12 000 L (Note 2,5)
Tetrachloroethylene 12 000 L (Note 2,5)
Trichloroethylene 12 000 L (Note 2,5)
CAT (pesticide) 12 000 L (Note 2,3)
2-MIB (mold smell) 12 000 L (Note 2,3)
Soluble lead 12 000 L (Note 2,3)
1,2-DCE 12 000 L (Note 2,5)
Benzene 12 000 L (Note 2,5)
Geosmin (mold smell) 12 000 L (Note 2,3)
Phenols 12 000 L (Note 2,3)
PFOS and PFOA 12 000 L (Note 2,6)
Removable substances
-
Iron (particulate form) Can be removed (Note 7)
Aluminium (neutral) Can be removed (Note 7)
Guide for time to replace cartridge
-
Approx. 2 years (Note 8)
Filter material
-
Non-woven fabric, activated carbon, ceramic, hollow fiber membrane
Components which cannot be filtered out
-
Iron dissolved in water, heavy metals (silver, copper, etc.), salt (seawater)
Length of power cord
-
Approx. 3 m
Power protection device
-
Current fuse: 2.5 A
Notes
-
* All figures given are for a water temperature of 20 °C. * This product cannot convert hard water into soft water.
* The total volume of water coming out of the main spout, drain hose is given as the run through water volume and daily volume of water used.
* Activated carbon uses powdered activated carbon and granular activated carbon.
(Note1) This period may be shorter depending on the water quality and usage environment.
(Note2) The amount of water that can be used with Alkaline 1 to 3 and acidic water is equivalent to about 83 % of the filtration flow volume (water purifying capacity).
(Note3) This value is for a removal rate of 80 % based on JIS S 3201 tests.
(Note4) This value is for a filtration flow volume of 50 % based on JIS S 3201 tests.
(Note5) This value is for a removal rate of 80 % based on JIS S 3201 Annex A tests.
(Note6) This value is for a removal rate of 80 % based on specification standard tests (JWPAS B standards) stipulated by the Japan Water Purifier Association (JWPA).
(Note7) This substance is for a removal rate of 80 % based on specification standard tests (JWPAS B standards) stipulated by the Japan Water Purifier Association (JWPA). Note that it is not stipulated as part of purification capacity.
(Note8) This period applies when 15 liters of water are used a day. If 30 liters are used a day, the cartridge usage limit will be approximately one-half. The period may also be significantly less depending on the amount of water used and on its quality and pressure.
