PM-EB2NLFR-W

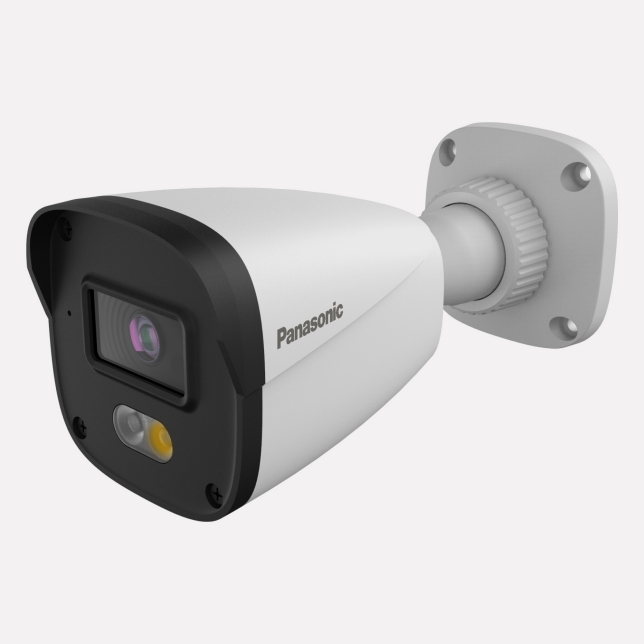

2MP Fixed Bullet IP Camera
Panasonic Cameras are developed to offer high security, ensuring the safety of customers in their homes, shops, and offices. Equipped with smart intelligence, these cameras detect events like line crossings and intrusion, the camera automatically activates white light upon detection, enhancing user security and peace of mind. Moreover, the cameras guarantee customer privacy through an advanced encryption algorithm and the Region of Interest (ROI) feature built into the camera.
Features
Key Features
• 2MP Fixed Bullet Network Camera
• Digital Wide Dynamic Range
• Color Night Vision: Color: 0.0462 lux @F2.2, AGC ON
• IR range:10~20m; White light range:10~20m
• IP67 protections from dust and water
• Advanced encryption and access control
• NDAA
• Digital Wide Dynamic Range
• Color Night Vision: Color: 0.0462 lux @F2.2, AGC ON
• IR range:10~20m; White light range:10~20m
• IP67 protections from dust and water
• Advanced encryption and access control
• NDAA
2MP Resolution
2MP resolution delivers clear and detailed video surveillance, ensuring reliable security and monitoring.
*Image shown is for illustration purposes only.
IP67 Weatherproof
Built to withstand dust and heavy rain, IP67-rated cameras offer reliable outdoor performance in extreme conditions.
Superior Night Vision
Advanced infrared technology enables clear video monitoring even in total darkness, ensuring round-the-clock security.
Mobile App Access
Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Get Inspired
Specs
2MP Fixed Bullet Network Camera
Digital Wide Dynamic Range
Color Night Vision: Color: 0.0462 lux @F2.2, AGC ON
IR range:10~20m
White light range:10~20m
IP67 protections from dust and water
CAMERA
-
Type
-
2MP Fixed Bullet Network Camera
-
-
Image Sensor
-
1/3"CMOS
-
-
Max Resolution
-
2MP (1920×1080)
-
-
Electronic Shutter
-
1/3s ~ 1 /100000 s
-
-
Min. Illumination
-
Color: 0.0462 lux @F2.2, AGC ON
-
-
IR Distance / Light Range
-
IR range:10~20m
White light range:10~20m
-
Lens
-
Focal length
-
3.6mm@F2.2
-
-
Focus
-
Fixed
-
-
Iris Type
-
Fixed Iris
-
-
Optical zoom
-
No
-
-
Lens Mount
-
M12
-
-
Angular Field of View
-
H.FoV:74°
V.FoV:40°
D.FoV:85°
-
-
Day & Night
-
ICR
-
-
Video Compression
-
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265+/H.265/H.264+/H.264
-
-
Supported Resolution
-
1080P(1920×1080)
720P(1280×720)
D1(704×480)
VGA(640×480)
640×360
480×240
CIF(352×288)
-
-
Number of Supported Stream
-
2
-
-
Mainstream
-
60Hz: 1080P/720P(1~30fps)
50Hz: 1080P/720P(1~25fps)
-
-
Sub Stream
-
60Hz: D1/VGA/640× 360/480× 240/CIF (1~30fps)
50Hz: D1/VGA/640× 360/480× 240/CIF (1~25fps)
-
-
Third Stream
-
-
-
-
Bit Rate
-
64 Kbps ~ 3 Mbps
-
-
Bit Rate Type
-
VBR / CBR
-
-
Image Settings
-
ROI
Saturation
Brightness
Hue
Contrast
Wide Dynamic
Sharpness
Image Mirror
Image Flip
NR
etc. adjustable through client software or web browser
-
-
Audio Compression
-
G711A / U
-
-
Region Of Interest
-
Each ROI to be configured separately
-
Operational
-
Wide Dynamic Range(WDR)
-
Digital WDR
-
-
Back Light Compensation (BLC)
-
Yes
-
-
High Light Compensation (HLC)
-
Yes
-
-
Defog
-
Yes
-
-
Digital Noise Reduction (DNR)
-
Yes
-
-
S/N ratio
-
≥50dB
-
-
Angle Adjustment
-
Pan: 0°~360°
Tilt: 0°~80°
Rotation: 0°~360°
-
INTERFACES
-
Network
-
RJ 45 10M/100M self-adaptive Ethernet port
-
-
Video
-
-
-
-
Audio
-
1CH built-in MIC
-
-
Storage
-
-
-
-
Alarm
-
-
-
-
RS485
-
-
-
DORI DISTANCE
-
Lens
-
3.6
-
-
Detect
-
59m(194ft)
-
-
Observe
-
24m(79ft)
-
-
Recognize
-
12m(39ft)
-
-
Identify
-
6m(20ft)
-
INTELLIGENT ANALYTICS
-
Statistics
-
-
-
-
Audio Exception Detection
-
-
-
-
Face Detection
-
-
-
-
Video Metadata(Human/Vehicle Attributes / Two Wheelers)
-
-
-
Other Analytics
-
Motion Detection
-
Yes
-
-
Smart Alarm
-
-
-
-
Smart Event
-
Region intrusion detection
Line crossing detection
Video exception (scene change, video blur and abnormal color detection)
-
FUNCTIONS
-
Remote Monitoring
-
Web browser
NVR
Panasonic VMS 2.X
Mobile APP
-
-
Web Browser
-
Chrome 89.0+
Edge 89.0+
Firefox 87.0+
Safari 14.0+
-
-
Online Connection
-
Support simultaneous monitoring for up to 3 users
Support multi-stream real time transmission
-
-
Network Protocol
-
UDP, IPv4, IPv6, DHCP, DDNS, NTP, SNMP, RTSP, 802.1x, UPnP
SMTP, FTP, HTTP, HTTPS, QoS
-
-
Interface Protocol
-
ONVIF Profile S/T
-
-
Other Functions
-
Watermark
Video mask
heartbeat
-
-
Security
-
Video encryption
Firmware encryption
Configuration encryption
Illegal login lock
IP address filtering
802.1x authentication
Basic and digest authentication for HTTP/RTSP
NDAA
-
General
-
Power Supply
-
PoE power supply
-
-
PoE
-
Yes, IEEE802.3af
-
-
Power Consumption
-
< 5W
-
-
Weather Protection
-
IP67 protections from dust and water
-
-
Operating Environment
-
-20°C~55°C (-4°F~131°F)
Humidity: less than 95% (non-condensing)
-
-
Storage Environment
-
-20°C~60°C (-4°F~140°F)
Humidity: less than 95% (non-condensing)
-
-

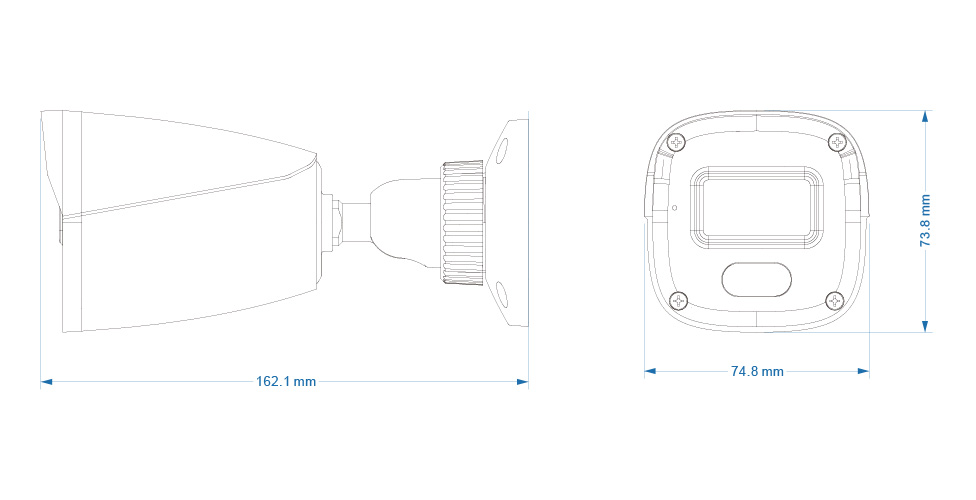

Dimensions (mm)
-
162.1×74.8×73.8
-
-
Weight (net)
-
Approx. 0.24KG
-
-
Installation
-
Ceiling mounting
Wall mounting
-
-
Certificate
-
EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
Safety: EN IEC 62368-1:2020+A11:2020
RoHS: 2011/65/EU
-
-
Footnote / Disclaimer
-
Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
Product dimensions and masses are approximate. Specifications are subject to change without notice.
-
