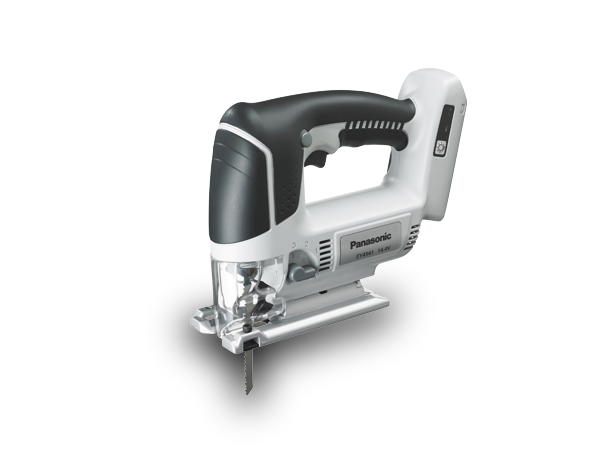

EY4541X
| DESCRIPTION | Description | Cordless Jigsaw |
|---|---|---|
| Typical Application | General construction Carpentry | |
| Skin Only Option Available (battery and charger not included) | - | |
| POWER SUPPLY | Voltage (V) | 14.4 |
| Battery Pack Type | see Optional Accessories | |
| Amps (Ah) | see Optional Accessories | |
| Charge Time (mins) | Full: 65 (using EY0L81B charger) Usable: 50 | |
| Overheat Protection System | - | |
| Speed - High / Hard at No Load (rpm) | - | |
| Speed - Medium at No Load | - | |
| Speed - Low / Soft at No Load (rpm) | - | |
| Speed - Impact Mode at No Load (rpm) | - | |
| Speed - Drill & Driver Mode at No Load (rpm) | - | |
| Impact - High Mode (ipm) | - | |
| Impact - Medium (ipm) | - | |
| Impact - Soft Mode (ipm) | - | |
| Maximum Torque - Impact Mode (Nm) | - | |
| Maximum Torque - Drill & Driver Mode (Nm) | - | |
| Maximum Torque - Stalling (Nm) | - | |
| Maximum Torque - Instant (Nm) | - | |
| Maximum Torque - High (Nm) | - | |
| Maximum Torque - Medium (Nm) | - | |
| Maximum Torque - Low (Nm) | - | |
| Ejection Pressure (kgf) | - | |
| Capacity (ml) | - | |
| FEATURES | Tough Tool - IP56 Approval | Yes |
| Safety Switch Lock | - | |
| Clutch Stages | 4-stage pendulum action Pendulum action stages: 4 (0 · 1-3) | |
| Electric Brake | - | |
| Chuck Type | - | |
| No of Speeds | - | |
| Variable Speed Control / Reversible | - | |
| Slow Start Switch | - | |
| LED Light | Yes | |
| Ergonomic Design | Ergonomic design Low handle position: height 177 | |
| Additional Design Features | 0 - 45 o cutting angle adjustment Low vibration: counter balance mechanism Air blow function keeps cutting line clear | |
| FEATURES - DRILL amp DRIVER | Maximum Drill Diameter - Wood (mm) | - |
| Maximum Drill Diameter - Metal (mm) | - | |
| Maximum Drill Diameter - Concrete (mm) | - | |
| Maximum Holesaw (mm) | - | |
| Maximum Screws Driving - Wood (mm) | - | |
| Maximum Screws Driving - Self-Drilling Screw (mm) | - | |
| Maximum Screws Driving - Machine Screw (mm) | - | |
| FEATURES - HAMMERING | Hammering Force - Soft Mode (kN) | - |
| Hammering Force - Hard Mode (kN) | - | |
| Blows Per Minute - Hard Mode | - | |
| Blows Per Minute - Soft Mode | - | |
| FEATURES - GRINDING amp CUTTING | Grinding Wheel Diameter (mm) | - |
| Blade Diameter (mm) | 1.3 | |
| Maximum Cutting Depth (mm) | - | |
| Stroke Per Minute at No Load | 0 - 2400 | |
| Stroke Length (mm) | 20 | |
| Cutting Performance - Wood (mm) | 65 | |
| Cutting Performance - Mild Steel (mm) | 6 | |
| Cutting Performance - Aluminium (mm) | 10 | |
| GENERAL | Dimensions - L x H x W (mm) | 277 x 177 x 63 |
| Weight (kg) | 2.25 | |
| ACCESSORIES | Standard | Metal Blade EY9SXMJ0E57 Wood Blade EY9SXWJ0E57 Drywall Blade EY9SXXJ0E57 |
| Optional | 14.4V Battery Pack (3.3 Ah Li-ion Battery Type R) EY9L44B57 14.4V Battery Pack (1.5 Ah Li-ion Battery Type E) EY9L42B57 Charger for Li-ion EY0L81B57 Rip Fence EY9X011E57 |
