3D form measurement case
Here is actual measurement result by using UA3P.
-
Aspherical lens / Mold
-
Inclination and decentering between lens surfaces
-
Off-axis mirror surface
-
Diffractive lens shape
-
Surface of free-form curved lens
-
Lens tool mark
-
Form of large object. (3D)
-
Optical axis of mobile camera lens
-
Barrel multi-stage cylinder
-
Decenter evaluation based on interlocked surface
-
Wafer level lens
-
Aspherical lens / Mold
-
Inclination and decentering between lens surfaces
-
Off-axis mirror surface
-
Diffractive lens shape
-
Surface of free-form curved lens
-
Lens tool mark
-
Form of large object. (3D)
-
Optical axis of mobile camera lens
-
Barrel multi-stage cylinder
-
Decenter evaluation based on interlocked surface
-
Wafer level lens
Aspherical lens measurement / Mold measurement
Aspherical lens measurement / Mold measurement
An area enclosed by a square or circle is measured at a predetermined pitch to evaluate the of the 3D form measurement.
Applicable model
All models
*Select an optimum model based on measurement size.
Corresponding option
The standard model supports shape evaluation.
* Recommendations for the additional purchase of software for stylus shape correction.
Measurement object
Aspherical lens
Measurement object
Lens mold
Inclination and decentering measurement between lens surfaces
Inclination and decentering measurement between lens surfaces
The lens surface and rear face are measured to evaluate any tilt and decentering of the optical axis between lens faces.
Applicable model
All models
*Select an optimum model based on measurement
size.
Corresponding option
Decenter and tilt measurement jig (Hard)
*A range of models available depending on the size of what is to be measured Inclination and decentering evaluation software (Soft)
Measurement object
Smartphone lenses
*Also supports lenses for digital single-lens reflex cameras and on-vehicle cameras
Off-axis mirror surface measurement
Off-axis mirror surface measurement
The UA3P makes it possible to measure and evaluate an object that lacks a design origin, such as an X-ray mirror.
Applicable model
All models
*Select an optimum model based on measurement size.
Corresponding option
Coordinate axis conversion software (Soft)
User-defined equations software (Soft)
Measurement object
Parabolic mirror for telescope
Diffractive lens shape measurement
Diffractive lens shape measurement
A refractive lens can be measured to evaluate the shape of phase steps.
Applicable model
All models
*Select an optimum model based on measurement size.
Corresponding option
User-defined equations software (Soft)
Measurement object
Diffractive lens, Fresnel lens for VR
Surface measurement of free-form curved lens
Surface measurement of free-form curved lens
The UA3P can measure free-form curved surfaces, such as molds to produce long lenses for laser beam printers.
Applicable model
All models
*Select an optimum model based on measurement size.
Corresponding option
Coordinate axis conversion software (Soft)
User-defined equations software (Soft)
Measurement object
Long mold LBP for Mirror laser beam printer, Spectacle lens
Lens tool mark measurement
Contours on polished lenses and glass-mold lenses can be evaluated.
Applicable models
UA3P-3100, UA3P-4000, UA3P-5000H
*Consult us separately for measurement sizes.
Measurement object
Polished lens
Form measurement of large object. (3D)
Form measurement of large object. (3D)

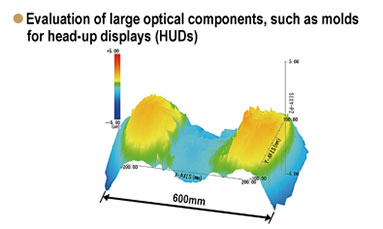

Large optical parts, such as molds for head-up displays (HUDs) can be evaluated.
Applicable models
UA3P-500H/550H/650H/700H
Corresponding option
User-defined equations software (Soft)
Measurement object
molds for head-up
displays (HUD)
Measurement of optical axis of mobile camera lens
Measurement of optical axis of mobile camera lens
Shapes of molds, lenses, and barrels in lens units can be evaluated.
Applicable model
UA3P-400T
Measurement object
Mobile lens
Measurement of barrel multi-stage cylinder
Measurement of barrel multi-stage cylinder

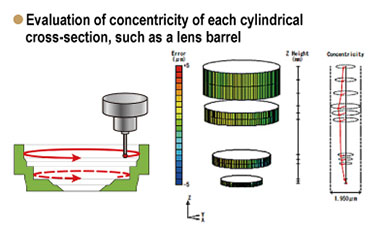

The concentricity of cylinder cross sections, such as lens barrels, can be evaluated.
Applicable model
UA3P-400T
Measurement object
Mobile lens
Decenter evaluation based on interlocked surface
Decenter evaluation based on interlocked surface
The tilt and decenter of each lens face can be evaluated with reference to the fitting face of the lenses.
Applicable model
UA3P-400T
Measurement object
Mobile lens
Wafer level lens measurement
Wafer level lenses can be continuously measured to evaluate their shape.
Applicable model
UA3P-500H/650H/700H
Corresponding option
Wafer chuck and camera unit
Assist Function for Wafer Lens Measurement
