S-24PUB5H59B

COOLING ONLY FIXED SPEED CASSETTE AC

Specs

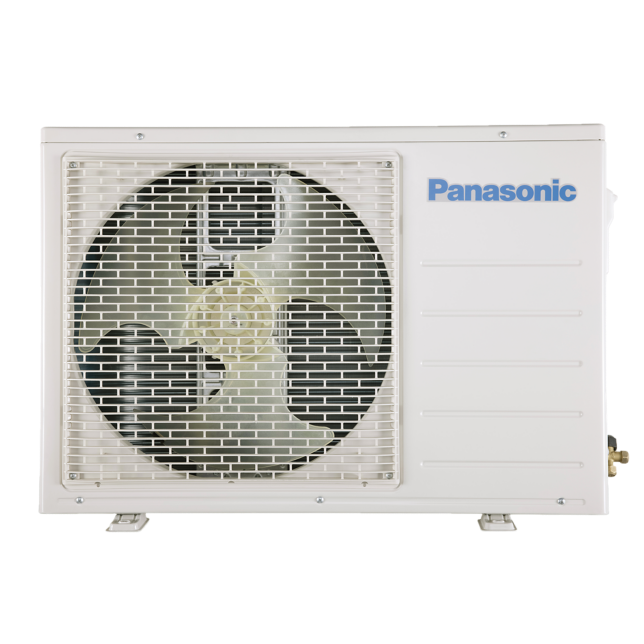

Photo of S-24PUB5H59B

Simplistic Design

LCD Wireless Remote Controller

Easy Installation Design

Model

  • Indoor Unit

    • S-24PUB5H59B
  • Outdoor Unit

    • U-24PNB5H59
  • Panel

    • CZ-KPUB5H9

Tonnage Class

  • TR

    • 2.0

Capacity

  • Cooling Standard [Min. - Max.]

    • Btu/h
      • 22179
    • W
      • 6500
  • Heating Standard [Min. - Max.]

    • Btu/h
      • -
    • W
      • -

ISEER

  • 4.00

Star Rating

    • 3★

Power Input

  • Cooling Standard [Min. - Max.]

    • W
      • 1625
  • Heating Standard [Min. - Max.]

    • W
      • -

Running Current

  • Cooling [Rated - Max.]

    • A
      • 7.1
  • Heating [Rated - Max.]

    • A
      • -

Power Supply

  • V / Φ / Hz

    • 230V / 1Φ / 50Hz

Indoor Unit

  • Air Volume Flow Rate

    • H/M/L (CMH)
      • 1350/1100/1000
  • Sound Pressure Level*

    • H/M/L (dB(A))
      • 45/43/41
  • Dimension

    • Indoor (L x B x H) (cm)
      • 84.5 x 84.5 x 24.5
    • Panel (L x B x H) (cm)
      • 95.0 x 95.0 x 42
  • Net Weight Indoor

    • kg
      • 24.7
  • Net Weight Panel

    • kg
      • 5.5

Outdoor Unit

  • Compressor Type

    • Rotary
  • Sound Pressure Level

    • High (dB(A))
      • 60
  • Dimension

    • L x B x H (cm)
      • 85 x 31 x 68.4
  • Net Weight Outdoor

    • kg
      • 44
  • Piping Connections

    • Gas (Flare) (cm)
      • 1.588 (0.625)
    • Liquid (Flare) (cm)
      • 0.635 (0.25)
    • Drain (cm)
      • 3.2
  • Maximum Elevation Drain Pipe

    • m
      • 0.66
  • Maximum Refrigerant Pipe Length

    • m
      • 25
  • Maximum Elevation Difference

    • m
      • 15
  • Maximum Chargeless Length

    • m
      • 5
  • Refrigerant Type

    • R-32
  • Refrigerant Charged Qty.

    • g
      • 1250
  • Interconnecting Cable

    • From ODU to IDU (Sq.mm)
      • 4C X 2.5
  • Power Cable

    • To IDU (Sq.mm)
      • NA
    • To ODU (Sq.mm)
      • 3C X 2.5
  • RS485 Cable

    • From ODU to IDU (Sq.mm)
      • NA
  • Ambient Temperature Operating Range

    • °C
      • up to 50°C
  • Standard Controller (Remote)

    • LCD Wireless Type
