S-36PUB5H59B
COOLING ONLY FIXED SPEED CASSETTE AC
Specs
Simplistic Design
LCD Wireless Remote Controller
Easy Installation Design
Model
-
Indoor Unit
-
S-36PUB5H59B
-
-

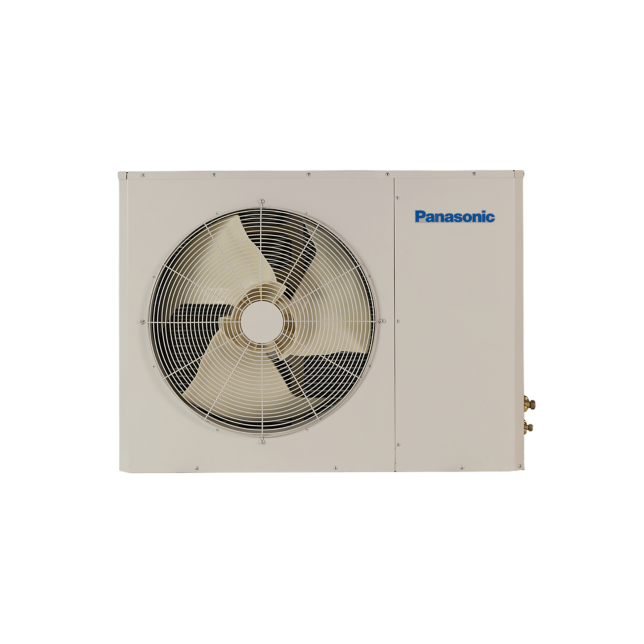

Outdoor Unit
-
U-36PNB5H59
-
-
Panel
-
CZ-KPUB5H9
-
Tonnage Class
-
TR
-
3.0
-
Capacity
-
Cooling Standard [Min. - Max.]
-
Btu/h
-
36169
-
-
W
-
10600
-
-
-
Heating Standard [Min. - Max.]
-
Btu/h
-
-
-
-
W
-
-
-
-
ISEER
-
3.12
Star Rating
-
★
-
2★
-
Power Input
-
Cooling Standard [Min. - Max.]
-
W
-
3400
-
-
-
Heating Standard [Min. - Max.]
-
W
-
-
-
-
Running Current
-
Cooling [Rated - Max.]
-
A
-
15.0
-
-
-
Heating [Rated - Max.]
-
A
-
-
-
-
Power Supply
-
V / Φ / Hz
-
230V / 1Φ / 50Hz
-
Indoor Unit
-
Air Volume Flow Rate
-
H/M/L (CMH)
-
2200/2050/1950
-
-
-
Sound Pressure Level*
-
H/M/L (dB(A))
-
53/51/50
-
-
-
Dimension
-
Indoor (L x B x H) (cm)
-
84.5 x 84.5 x 29.0
-
-
Panel (L x B x H) (cm)
-
95.0 x 95.0 x 42
-
-
-
Net Weight Indoor
-
kg
-
26.2
-
-
-
Net Weight Panel
-
kg
-
5.5
-
-
Outdoor Unit
-
Compressor Type
-
Twin Rotary
-
-
Sound Pressure Level
-
High (dB(A))
-
63
-
-
-
Dimension
-
L x B x H (cm)
-
103.2 x 38.3 x 79.1
-
-
-
Net Weight Outdoor
-
kg
-
69.5
-
-
-
Piping Connections
-
Gas (Flare) (cm)
-
1.588 (0.625)
-
-
Liquid (Flare) (cm)
-
0.952 (0.375)
-
-
Drain (cm)
-
3.2
-
-
-
Maximum Elevation Drain Pipe
-
m
-
0.66
-
-
-
Maximum Refrigerant Pipe Length
-
m
-
30
-
-
-
Maximum Elevation Difference
-
m
-
15
-
-
-
Maximum Chargeless Length
-
m
-
5
-
-
-
Refrigerant Type
-
R-32
-
-
Refrigerant Charged Qty.
-
g
-
1650
-
-
-
Interconnecting Cable
-
From ODU to IDU (Sq.mm)
-
4C X 2.5
-
-
-
Power Cable
-
To IDU (Sq.mm)
-
NA
-
-
To ODU (Sq.mm)
-
3C X 4.0
-
-
-
RS485 Cable
-
From ODU to IDU (Sq.mm)
-
NA
-
-
-
Ambient Temperature Operating Range
-
°C
-
up to 50°C
-
-
-
Standard Controller (Remote)
-
LCD Wireless Type
-
