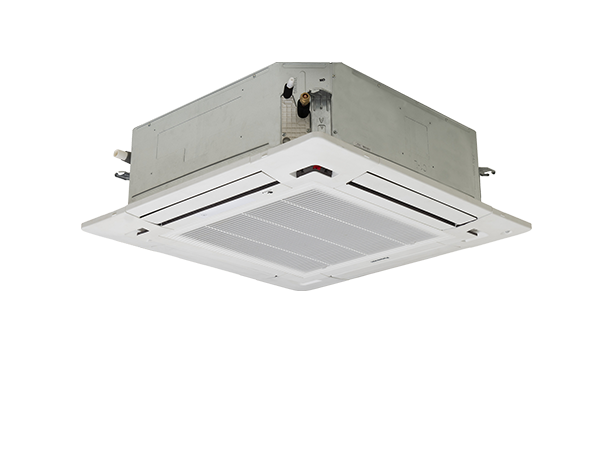

S-48PUB5H59B

COOLING ONLY FIXED SPEED CASSETTE AC

Specs

Photo of S-48PUB5H59B

Simplistic Design

LCD Wireless Remote Controller

Easy Installation Design

Model

  • Indoor Unit

    • S-48PUB5H59B
  • Outdoor Unit

    • U-48PNB5H89
  • Panel

    • CZ-KPUB5H9

Tonnage Class

  • TR

    • 4.0

Capacity

  • Cooling Standard [Min. - Max.]

    • Btu/h
      • 46507
    • W
      • 13630
  • Heating Standard [Min. - Max.]

    • Btu/h
      • -
    • W
      • -

ISEER

  • 3.05

Star Rating

    • NA

Power Input

  • Cooling Standard [Min. - Max.]

    • W
      • 4468
  • Heating Standard [Min. - Max.]

    • W
      • -

Running Current

  • Cooling [Rated - Max.]

    • A
      • 9.0
  • Heating [Rated - Max.]

    • A
      • -

Power Supply

  • V / Φ / Hz

    • 415V / 3Φ / 50Hz

Indoor Unit

  • Air Volume Flow Rate

    • H/M/L (CMH)
      • 2250/2100/2000
  • Sound Pressure Level*

    • H/M/L (dB(A))
      • 54/52/51
  • Dimension

    • Indoor (L x B x H) (cm)
      • 84.5 x 84.5 x 29.0
    • Panel (L x B x H) (cm)
      • 95.0 x 95.0 x 42
  • Net Weight Indoor

    • kg
      • 26.2
  • Net Weight Panel

    • kg
      • 5.5

Outdoor Unit

  • Compressor Type

    • Twin Rotary
  • Sound Pressure Level

    • High (dB(A))
      • 65
  • Dimension

    • L x B x H (cm)
      • 103.2 x 38.3 x 87.2
  • Net Weight Outdoor

    • kg
      • 76.5
  • Piping Connections

    • Gas (Flare) (cm)
      • 1.588 (0.625)
    • Liquid (Flare) (cm)
      • 0.952 (0.375)
    • Drain (cm)
      • 3.2
  • Maximum Elevation Drain Pipe

    • m
      • 0.66
  • Maximum Refrigerant Pipe Length

    • m
      • 50
  • Maximum Elevation Difference

    • m
      • 15
  • Maximum Chargeless Length

    • m
      • 5
  • Refrigerant Type

    • R-32
  • Refrigerant Charged Qty.

    • g
      • 1950
  • Interconnecting Cable

    • From ODU to IDU (Sq.mm)
      • NA
  • Power Cable

    • To IDU (Sq.mm)
      • 3C X 2.5
    • To ODU (Sq.mm)
      • 5C X 4.0
  • RS485 Cable

    • From ODU to IDU (Sq.mm)
      • 2C X 0.5
  • Ambient Temperature Operating Range

    • °C
      • up to 50°C
  • Standard Controller (Remote)

    • LCD Wireless Type
