Slim Ducted Inverter R32 MU Series

Compact Yet Powerful Cooling

Panasonic Slim Ducted Inverter MU Series features slim, compact design and built-in drain pump to provide flexible installation in narrow ceiling spaces. Wide-angle airflow provides optimum cool air distribution across the room. Manage your air conditioners from one mobile device with Panasonic Comfort Cloud App (optional network adaptor CZ-TACG1 is required). Achieve energy efficiency without compromising comfort with Inverter technology and R32 refrigerant.
  • Panasonic Comfort Cloud App
  • POWERFUL Mode
  • Inverter
  • Quiet Mode
Zoom In
Zoom Out
Close
Slim Ducted Inverter R32 MU Series

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model

CS-MU9YD3Z

CS-MU12YD3Z

CS-MU18YD3Z

CS-MU24YD3Z

Btu/h

9,550

11,900

17,100

20,500

kW

2.8

3.5

5.0

6.0

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units with Panasonic Comfort Cloud App anywhere, anytime (optional network adaptor CZ-TACG1 is required). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

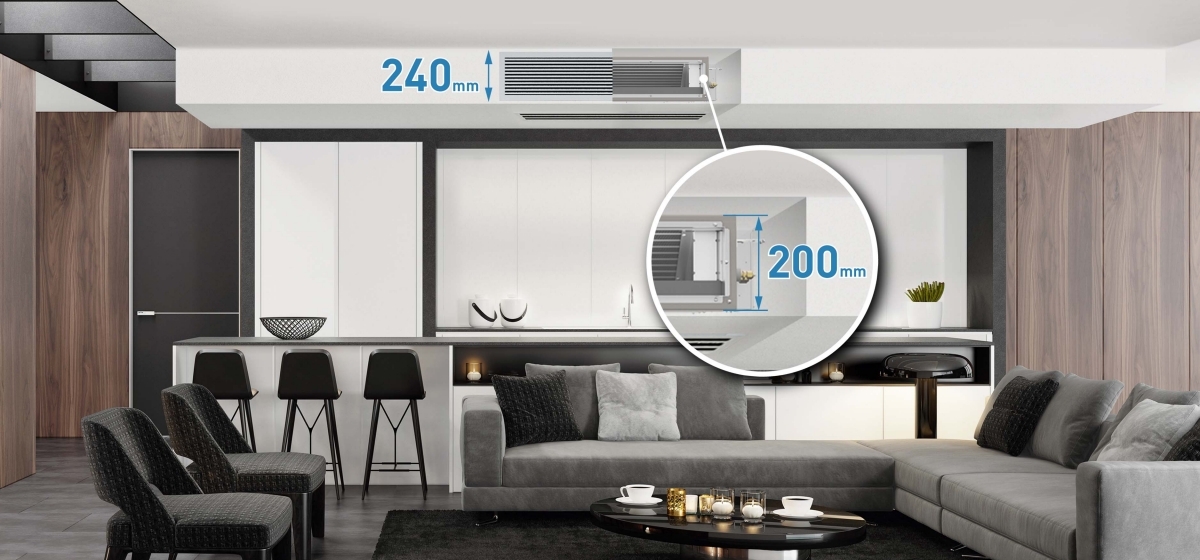

200mm Height to Fit Narrow Ceiling Spaces

200mm Height to Fit Narrow Ceiling Spaces
Slim and compact design with 200mm height, requiring only 240mm ceiling space for installation in narrow ceiling spaces. Fits discreetly into the narrow ceiling cavity, offering a harmonious look while providing a consistent cooling comfort.

Better Living, Together with Energy-saving and Eco-friendly Technologies

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Comfort Cooling Environment for Your Needs

Cooling Comfort with Wide-Angle Range

Cool airflow is directed towards the ceiling over a wide-angle range for optimum airflow distribution across the room.
Cooling Comfort with Wide-Angle Range

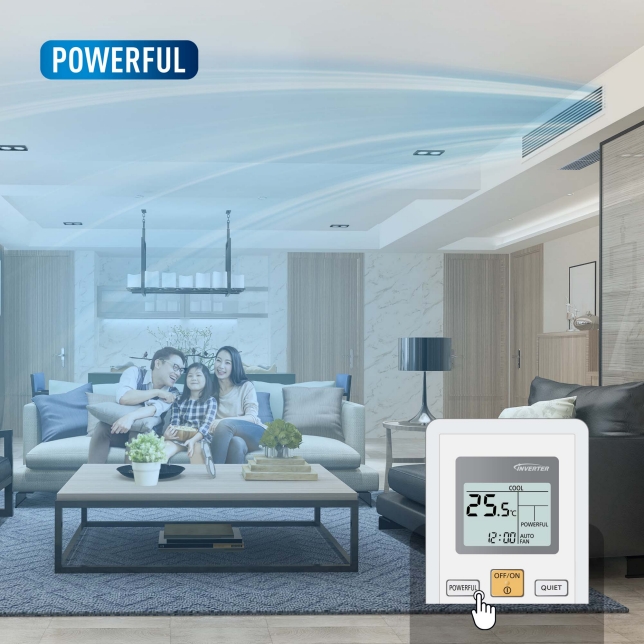

POWERFUL Mode for Instant Cooling Comfort

When POWERFUL Mode is switched on, the internal setting temperature will shift lower and increase in fan speed, offering instant powerful cooling when you need to cool the space quickly.
POWERFUL Mode for Instant Cooling Comfort

Calm and Peaceful Environment with Quiet Mode

Loud noises can be a bother, no matter the time of the day. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment.
Calm and Peaceful Environment with Quiet Mode

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

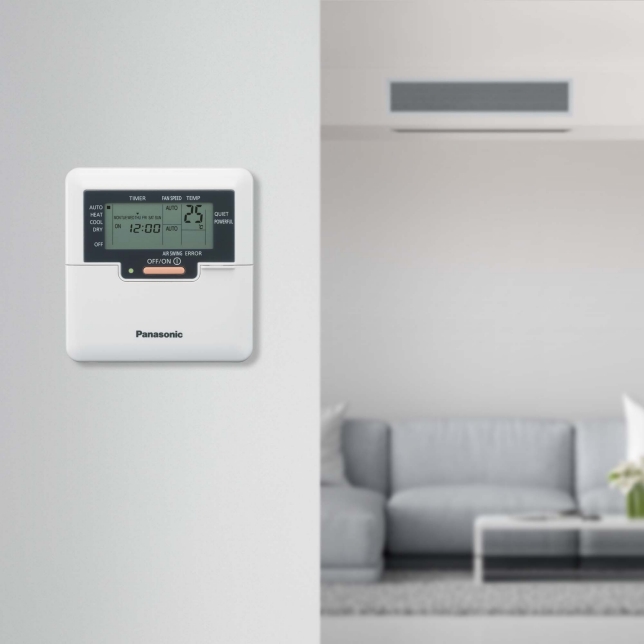

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD52CP-1) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Specifications

CS-MU9YD3Z

Photo of CS-MU9YD3Z

CS-MU12YD3Z

Photo of CS-MU12YD3Z

CS-MU18YD3Z

Photo of CS-MU18YD3Z

CS-MU24YD3Z

Photo of CS-MU24YD3Z
  • Panasonic Comfort Cloud AppPanasonic Comfort Cloud App
  • POWERFUL ModePOWERFUL Mode
  • InverterInverter
  • Quiet ModeQuiet Mode
  • Built-in Drain PumpBuilt-in Drain Pump
  • Bottom Air IntakeBottom Air Intake
  • R32 RefrigerantR32 Refrigerant

200mm height to fit in narrow ceiling spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

Air intake from the bottom allows flexible installation

High-lift built-in drain pump

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Energy savings with Inverter and environmentally friendly R32 refrigerant

CS-MU9YD3Z CS-MU12YD3Z CS-MU18YD3Z CS-MU24YD3Z
Cooling Capacity (kW) 2.8 kW 3.5 kW 5.0 kW 6.0 kW
Cooling Capacity (Btu/h) 9,550 Btu/h 11,900 Btu/h 17,100 Btu/h 20,500 Btu/h
Power Source Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz
Sound Pressure Level (H/L) 35/28 dB(A) 35/28 dB(A) 41/30 dB(A) 41/30 dB(A)
Air Circulation (H) 13.2 m³/min (465 ft³/min) 13.2 m³/min (465 ft³/min) 15.5 m³/min (545 ft³/min) 15.5 m³/min (545 ft³/min)
Dimensions (H x W x D) (mm) 200 mm x 750 mm x 640 mm 200 mm x 750 mm x 640 mm 200 mm x 750 mm x 640 mm 200 mm x 750 mm x 640 mm
Net Weight 19 kg 19 kg 19 kg 19 kg
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm ø 9.52 mm ø 9.52 mm ø 12.70 mm*
Power Supply Outdoor Outdoor Outdoor Outdoor
Inverter Control Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes
POWERFUL Mode Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes
Odour-Removing Function Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes
Wireless LAN Remote Control For Internet Connection Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Bottom Air Intake Yes Yes Yes Yes
Built-In Drain Pump Yes Yes Yes Yes
Random Auto Restart (32 Restart Patterns) Yes Yes Yes Yes
Blue Fin Condenser Yes Yes Yes Yes
Top-Panel Maintenance Access Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes
Note *Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MU24YD3Z.
