Standard Non-Inverter PN Series

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort

Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH, CS-PN12WKH and CS-PN18WKH. AEROWINGS is applicable to CS-PN24XKH and CS-PN30XKH.
  • POWERFUL Mode
  • R32 Refrigerant
  • BIG FLAP
  • AEROWINGS
Zoom In
Zoom Out
Close
Standard Non-Inverter PN Series

Specifications

CS-PN9WKH_CU-PN9WKH

Photo of CS-PN9WKH_CU-PN9WKH

CS-PN12WKH_CU-PN12WKH

Photo of CS-PN12WKH_CU-PN12WKH

CS-PN18WKH_CU-PN18WKH

Photo of CS-PN18WKH_CU-PN18WKH

CS-PN24XKH_CU-PN24XKH

Photo of CS-PN24XKH_CU-PN24XKH

CS-PN30XKH_CU-PN30XKH

Photo of CS-PN30XKH_CU-PN30XKH
  • POWERFUL ModePOWERFUL Mode
  • R32 RefrigerantR32 Refrigerant
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

CS-PN9WKH_CU-PN9WKH CS-PN12WKH_CU-PN12WKH CS-PN18WKH_CU-PN18WKH CS-PN24XKH_CU-PN24XKH CS-PN30XKH_CU-PN30XKH
Cooling Capacity (min-max) (kW) 2.65-2.70 kW 3.49-3.54 kW 5.15-5.15 kW 6.83-6.87 kW 8.78-8.85 kW
Cooling Capacity (min-max) (Btu/h) 9,040-9,210 Btu/h 11,900-12,100 Btu/h 17,600-17,600 Btu/h 23,300-23,400 Btu/h 30,000-30,200 Btu/h
EER (min-max) (Btu/hW) 10.89-10.71 Btu/hW 10.82-10.80 Btu/hW 10.80-10.60 Btu/hW 10.74-10.59 Btu/hW 12.55-12.33 Btu/hW
EER (min-max) (W/W) 3.19-3.14 W/W 3.17-3.16 W/W 3.16-3.10 W/W 3.15-3.11 W/W 3.67-3.61 W/W
Voltage (V) 220-240 V 220-240 V 220-240 V 220-240 V 220-240 V
Current (A) 3.8-3.7 A 5.1-4.9 A 7.6-7.3 A 10.0-9.4 A 11.0-10.3 A
Power Input (min-max) (W) 830-860 W 1,100-1,120) W 1,630-1,660 W 2,170-2,210 W 2,390-2,450 W
Moisture Removal (L/h) 1.6 L/h 2.0 L/h 2.9 L/h 3.9 L/h 5.0 L/h
Moisture Removal (Pt/h) 3.4 Pt/h 4.2 Pt/h 6.1 Pt/h 8.2 Pt/h 10.6 Pt/h
Indoor Unit Air Circulation 10.9 m³/min (385 ft³/min) 11.5 m³/min (406 ft³/min) 12.7m³/min (448 ft³/min) 20.5 m³/min (724 ft³/min) 25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L) 37/26 dB(A) 40/29 dB(A) 44/39 dB(A) 47/42 dB(A) 51/46 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch 12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight 8 kg (18 lb) 8 kg (18 lb) 9 kg (20 lb) 12 kg (26 lb) 16 kg (35 lb)
Outdoor Unit Air Circulation 28.8-29.6 m³/min (1,020-1,040 ft³/min) 29.0-29.9 m³/min (1,020-1,060 ft³/min) 34.5-35.7 m³/min (1,220-1,260 ft³/min) 38.8-41.4 m³/min (1,370-1,460 ft³/min) 53.5-55.5 m³/min (1,890-1,960 ft³/min)
Outdoor Unit Noise Level (H) 48-49 dB(A) 50-51 dB(A) 53-54 dB(A) 54-55 dB(A) 56-57 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 619 mm x 824 mm x 299 mm 695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 21-11/32 inch x 30-23/32 inch x 11-13/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight 21 kg (46 lb) 26 kg (57 lb) 36 kg (79 lb) 41 kg (90 lb) 53 kg (117 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 15.88 mm (5/8 inch) ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 7.5 m 7.5 m 7.5 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m 40 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m 30 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 25 g/m 25 g/m
Power Supply Indoor Indoor Indoor Indoor Outdoor
Powerful Mode Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes Yes Yes
Manual Horizontal Airflow Direction Control Yes Yes Yes Yes Yes
Odour Removing Function Yes Yes Yes Yes Yes
Removable Washable Panel Yes Yes Yes Yes Yes
24-Hour ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes Yes
Long Piping (max.) 20 m 20 m 30 m 30 m 40 m
Top Panel Maintenance Access Yes Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Documents

Features

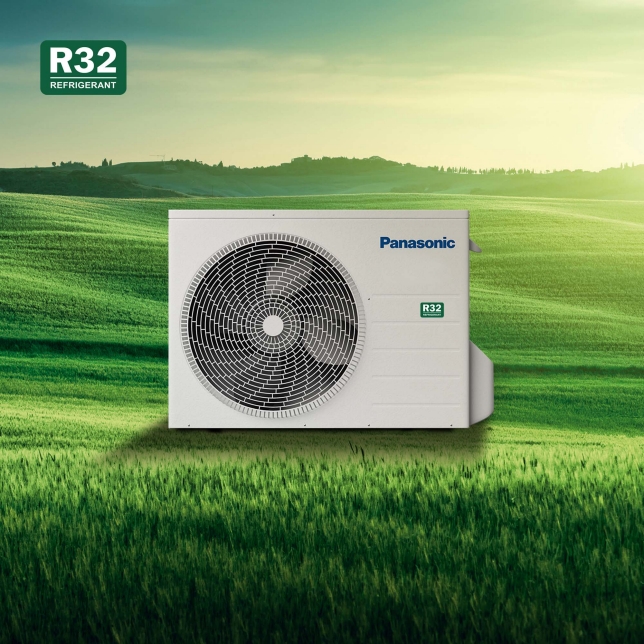

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.
Environmentally Friendly R32 Refrigerant

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.
Installation and Servicing Made Easier

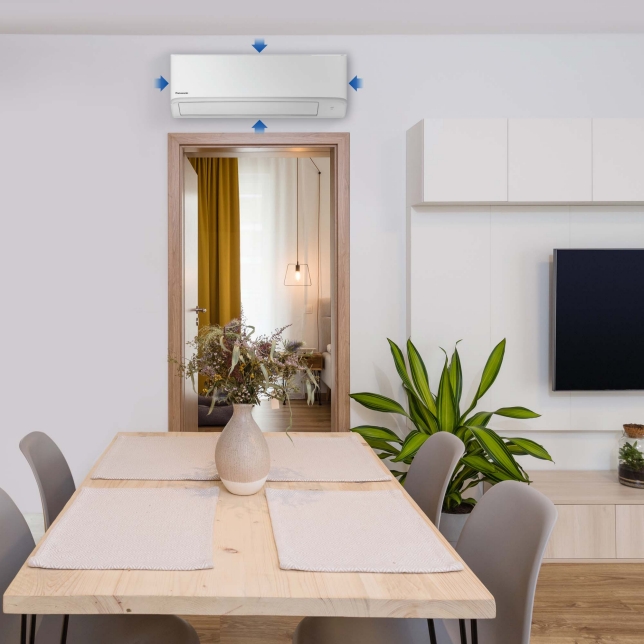

Fits Perfectly Anywhere

Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.
Fits Perfectly Anywhere

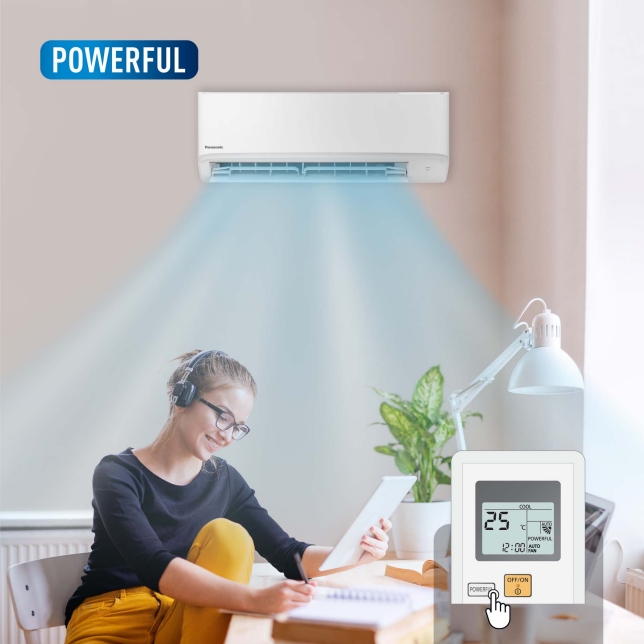

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
Instant Powerful Cooling with a Push of a Button

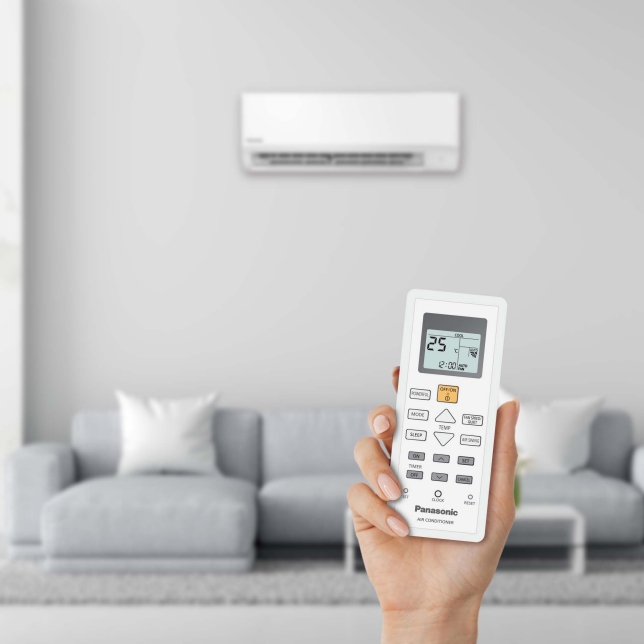

Convenient Control at Your Fingertips

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Convenient Control at Your Fingertips

Range

Model

Horsepower

1.0

1.5

2.0

2.5

3.0

Cooling Capacity

kW

2.65 - 2.70

3.49 – 3.54

5.15 – 5.15

6.83 - 6.87

8.78 – 8.85

Btu/h

9,040 – 9,210

11,900 - 12,100

17,600 - 17,600

23,300 – 23,400

30,000 – 30,200

Indoor Unit

CS-PN9WKH

CS-PN12WKH

CS-PN18WKH

CS-PN24XKH

CS-PN30XKH

Outdoor Unit

CU-PN9WKH

CU-PN12WKH

CU-PN18WKH

CU-PN24XKH

CU-PN30XKH
