Metallic Series
Easy to Install, Wall Mounted Exhaust Fan
Durable, high-performance design with advanced technology for quiet, efficient operation. Its sleek, powder-coated finish ensures a premium look while providing long-lasting reliability. The system includes thoughtful safety features, enhancing performance and ease of maintenance.
Features

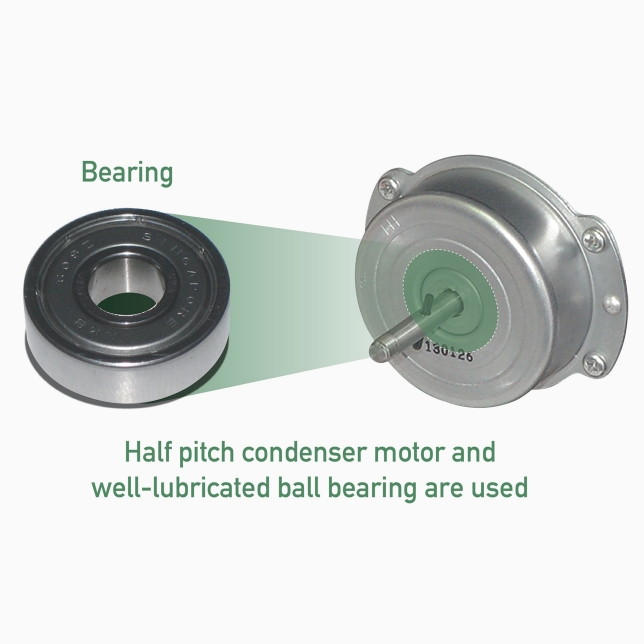

Half Pitch Motor & Bearing
All motors are equipped with thermal fuses that shut off automatically when overheated. This feature prevents further temperature increases and minimizes the risk of hazards.

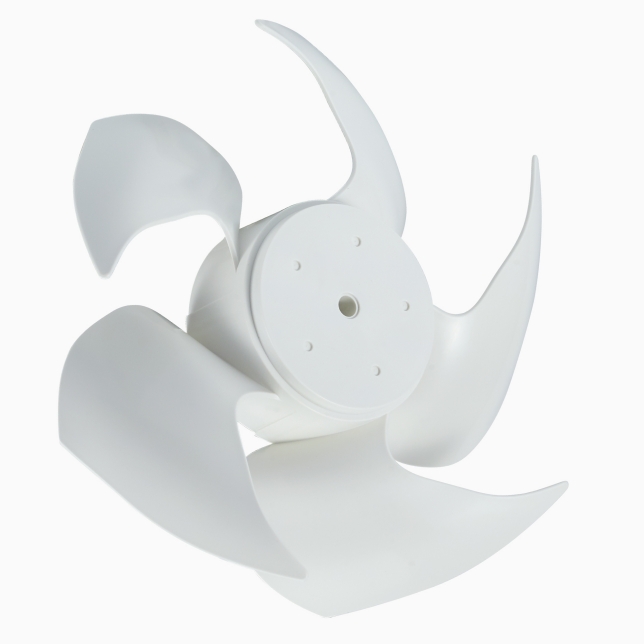

Silent Stream Fan
The new blade design applies advanced aerodynamic principles to optimize the blade shape. This design reduces noise while increasing airflow efficiency.

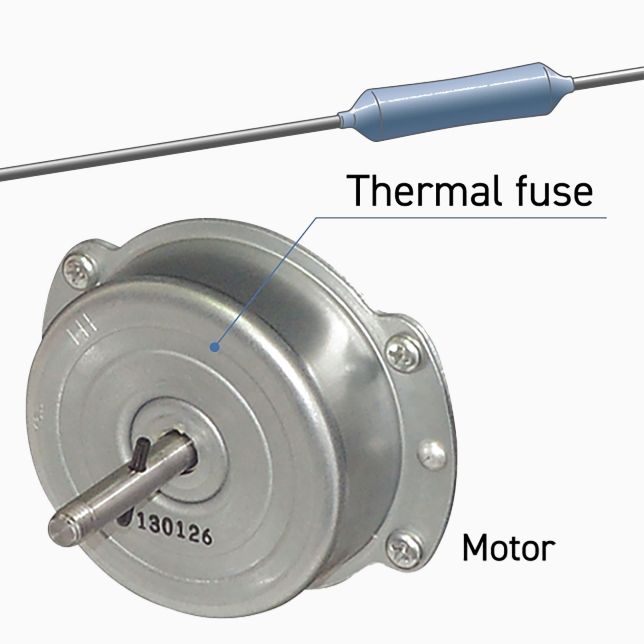

Highly Secure Fuse
A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Product Variations
FV-20AS2 / FV-25AS2 / FV-30AS2
• Condenser motor with thermal cut-off
• Silent stream fan
• High performance propeller fan adopted
• Well lubricated ball bearing for long life operation
• Automatic Shutter
• Powder painter metallic orifice, blade and oil cup
• Detachable oil cup
• Silent stream fan
• High performance propeller fan adopted
• Well lubricated ball bearing for long life operation
• Automatic Shutter
• Powder painter metallic orifice, blade and oil cup
• Detachable oil cup
Specs
Half Pitch Motor & Bearing
Silent Stream Fan
Highly Secure Fuse
FV-20AS2
-
220/50hz
-
Air Volume
-
516 m³/h
304 CFM
-
-
Consumption [W]
-
17
-
-
RPM [min⁻¹]
-
1,220
-
-
Noise [dB(A)]
-
37.5
-
-
-
220/60hz
-
Air Volume
-
612 m³/h
360 CFM
-
-
Consumption [W]
-
21.5
-
-
RPM [min⁻¹]
-
1,390
-
-
Noise [dB(A)]
-
40.6
-
-
-
230/50hz
-
Air Volume
-
528 m³/h
311 CFM
-
-
Consumption [W]
-
18.1
-
-
RPM [min⁻¹]
-
1,235
-
-
Noise [dB(A)]
-
38.1
-
-
-
240/50hz
-
Air Volume
-
540 m³/h
318 CFM
-
-
Consumption [W]
-
19.5
-
-
RPM [min⁻¹]
-
1,250
-
-
Noise [dB(A)]
-
38.4
-
-
-
Weight [kg]
-
3.3
-
-
Installation Space [mm]
-
250 x 250
-
FV-25AS2
-
220/50hz
-
Air Volume
-
858 m³/h
505 CFM
-
-
Consumption [W]
-
25
-
-
RPM [min⁻¹]
-
1,200
-
-
Noise [dB(A)]
-
39.1
-
-
-
220/60hz
-
Air Volume
-
954 m³/h
562 CFM
-
-
Consumption [W]
-
30.5
-
-
RPM [min⁻¹]
-
1,212
-
-
Noise [dB(A)]
-
40.6
-
-
-
230/50hz
-
Air Volume
-
864 m³/h
509 CFM
-
-
Consumption [W]
-
27.3
-
-
RPM [min⁻¹]
-
1,225
-
-
Noise [dB(A)]
-
39.3
-
-
-
240/50hz
-
Air Volume
-
888 m³/h
523 CFM
-
-
Consumption [W]
-
29.5
-
-
RPM [min⁻¹]
-
1,240
-
-
Noise [dB(A)]
-
39.7
-
-
-
Weight [kg]
-
3.8
-
-
Installation Space [mm]
-
300 x 300
-
FV-30AS2
-
220/50hz
-
Air Volume
-
1,182 m³/h
696 CFM
-
-
Consumption [W]
-
29.5
-
-
RPM [min⁻¹]
-
1,046
-
-
Noise [dB(A)]
-
39.2
-
-
-
220/60hz
-
Air Volume
-
1,164 m³/h
685 CFM
-
-
Consumption [W]
-
34.5
-
-
RPM [min⁻¹]
-
1,091
-
-
Noise [dB(A)]
-
39
-
-
-
230/50hz
-
Air Volume
-
1,248 m³/h
735CFM
-
-
Consumption [W]
-
31.7
-
-
RPM [min⁻¹]
-
1,100
-
-
Noise [dB(A)]
-
40.6
-
-
-
240/50hz
-
Air Volume
-
1,290 m³/h
759 CFM
-
-
Consumption [W]
-
34
-
-
RPM [min⁻¹]
-
1,130
-
-
Noise [dB(A)]
-
41.3
-
-
-
Weight [kg]
-
4.4
-
-
Installation Space [mm]
-
350 x 350
-
Note
-
For info on test conditions, please refer to the technical sheet.
